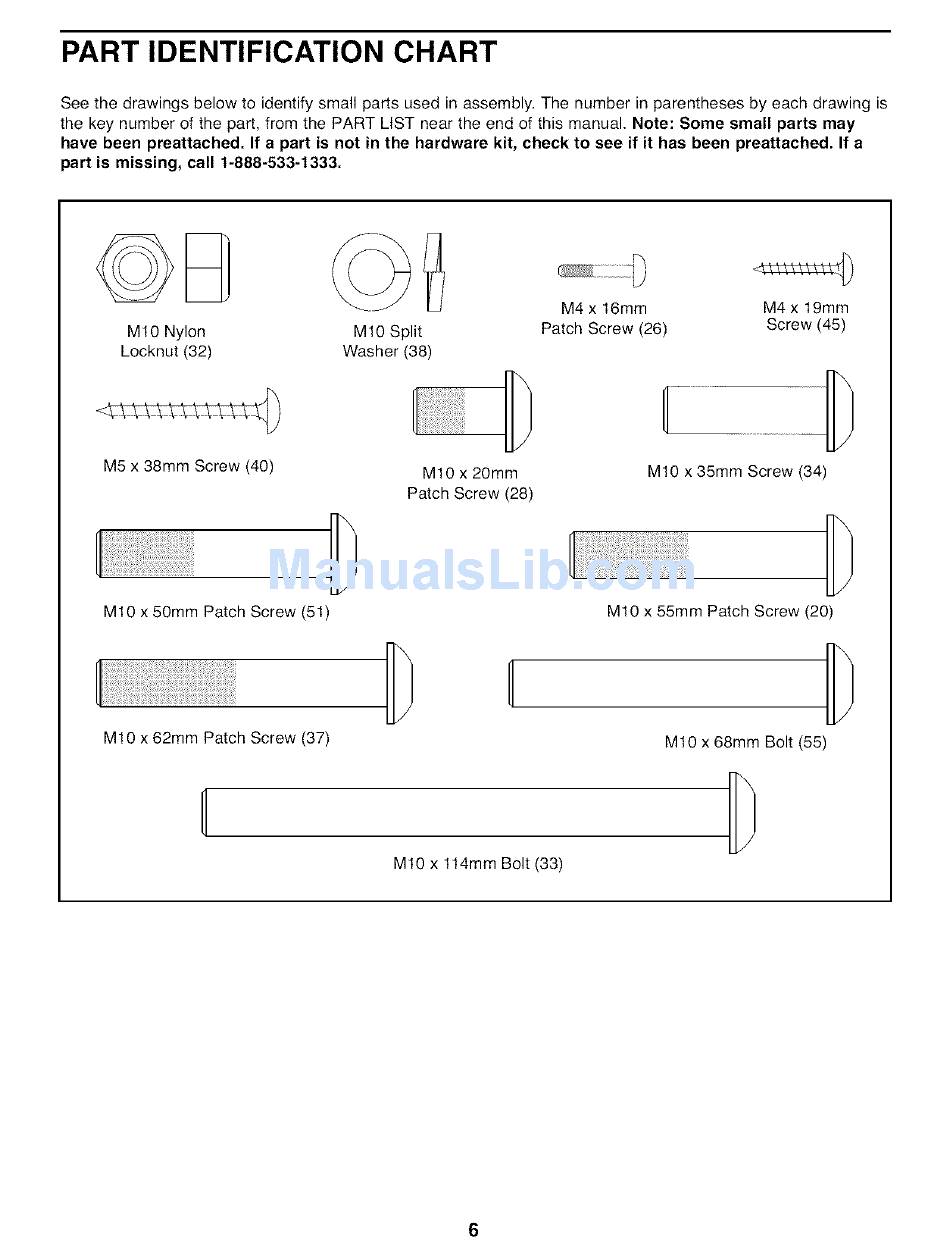

PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly, The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may
have been preattached. If a part is not in the hardware kit, check to see if it has been preattached. If a
part is missing, call t-888-533-t333.
©D
M10 Nylon
Locknut (32)
M5 x 38mm Screw (40)
M!O x 50mm Patch Screw (5!)
MIO Split
Washer (38)
MIO x 20mm
Patch Screw (28)
M4 x 16mm
Patch Screw (26)
M4 x 19mm
Screw (45)
M!0 x 35mm Screw (34)
M10 x 55mm Patch Screw (20)
M!0 x 62ram Patch Screw (37)
H
M10 x 68mm Bolt (55)
M10 x 114mm Bolt (33)
