Hardware Installation

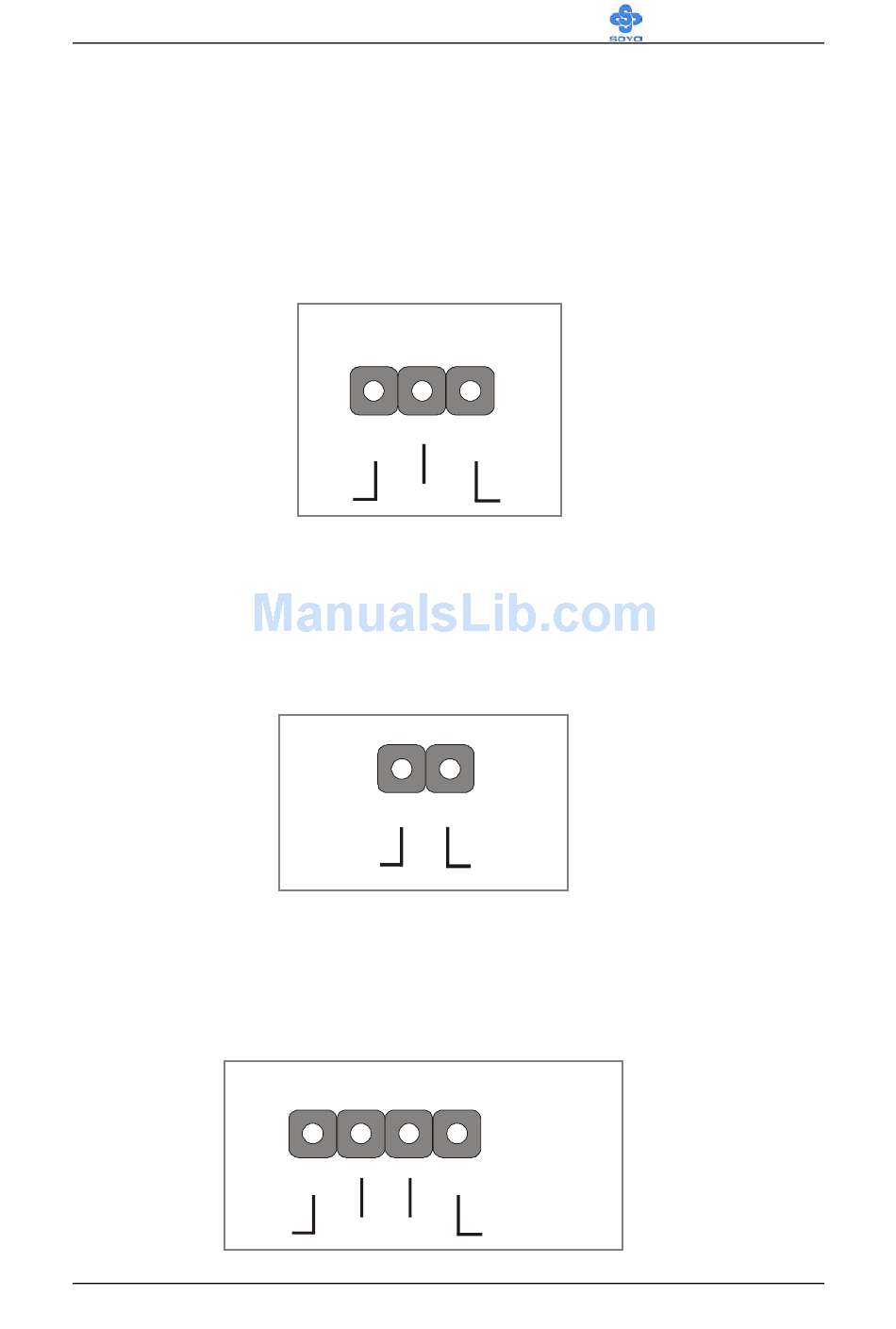

Plug the computer case's front panel devices to the corresponding headers
on the Motherboard.

1. Power LED

Please install according to the following pin assignment: pin 1,3 are for
Power LED.
2. Reset
Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause the
system to restart the boot-up sequence.
3. Speaker
Attach the 4-pin PC speaker cable from the case to the Speaker header on
the Motherboard.
Speaker Pin Assignment
+5V
Power LED
Pin Assignment
+
+5V +5V NC NC
Reset Pin Assignment
1
Power Good
_
+
NC NC
17
_
GND
GND
Speaker out
SY-7VBA133U
