Hardware Installation
F. ATX Power Supply

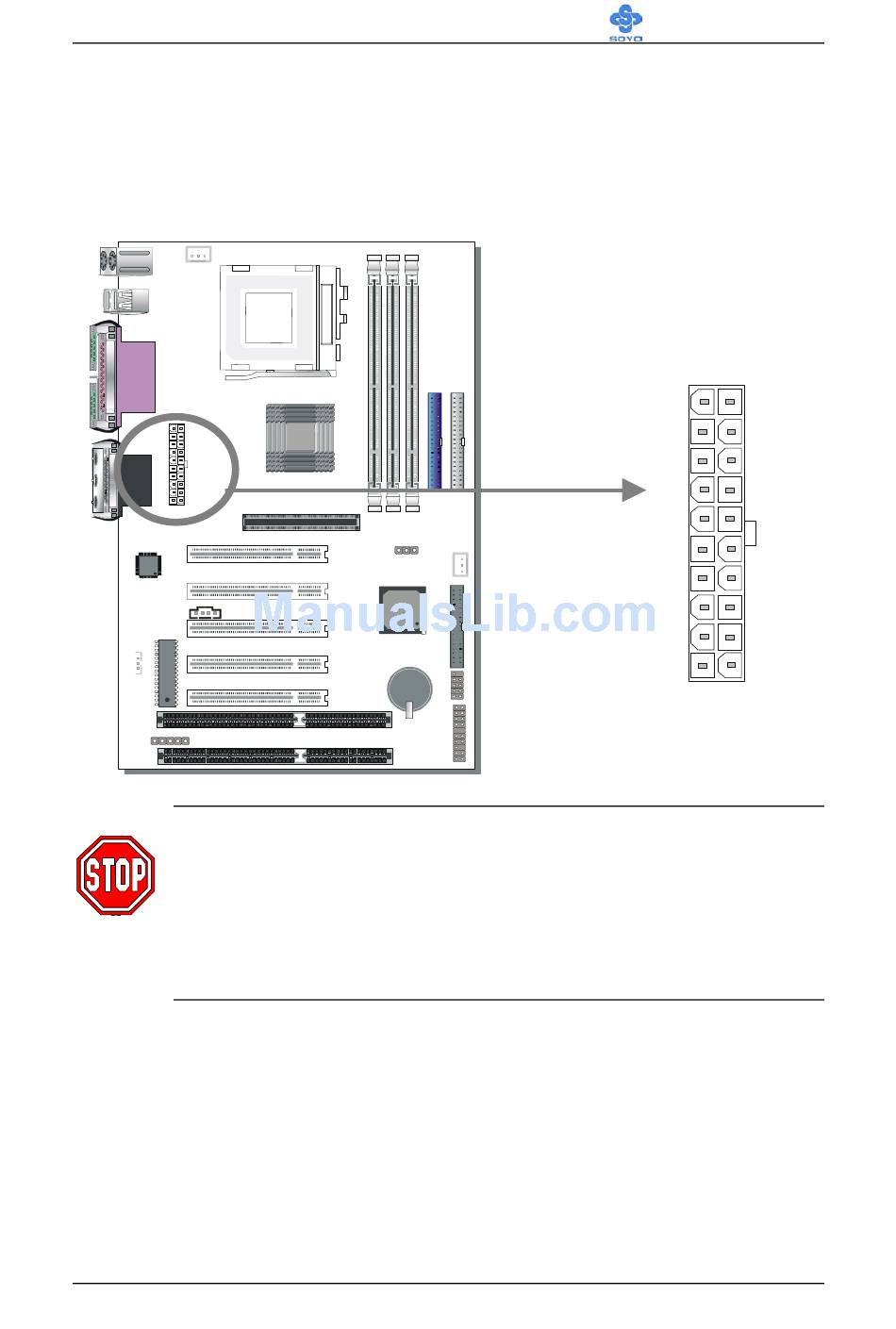

Plug the connector from the power directly into the 20-pin male ATX PW
connector on the Motherboard, as shown in the following figure.
Warning: Follow these precautions to preserve your
Motherboard from any remnant currents when connecting to
ATX power supply:
Turn off the power supply and unplug the power cord of the
ATX power supply before connecting to ATX PW connector.
The Motherboard requires a power supply with at least 200 Watts and a
"power good" signal. Make sure the ATX power supply can take at least
720 mA * load on the 5V Standby lead (5VSB) to meet the standard ATX
specification.
* Note: If you use the Wake-On-LAN (WOL) function, make sure the
ATX power supply can support at least 720 mA on the 5V Standby lead
