Hardware Installation
D. Back Panel Connections
All external devices such as the PS/2 keyboard, PS/2 mouse, printer,
modem, USB can be plugged directly onto the Motherboard back panel.
Only after you have fixed and locked the Motherboard to the computer
case can you start connecting the external peripheral devices.

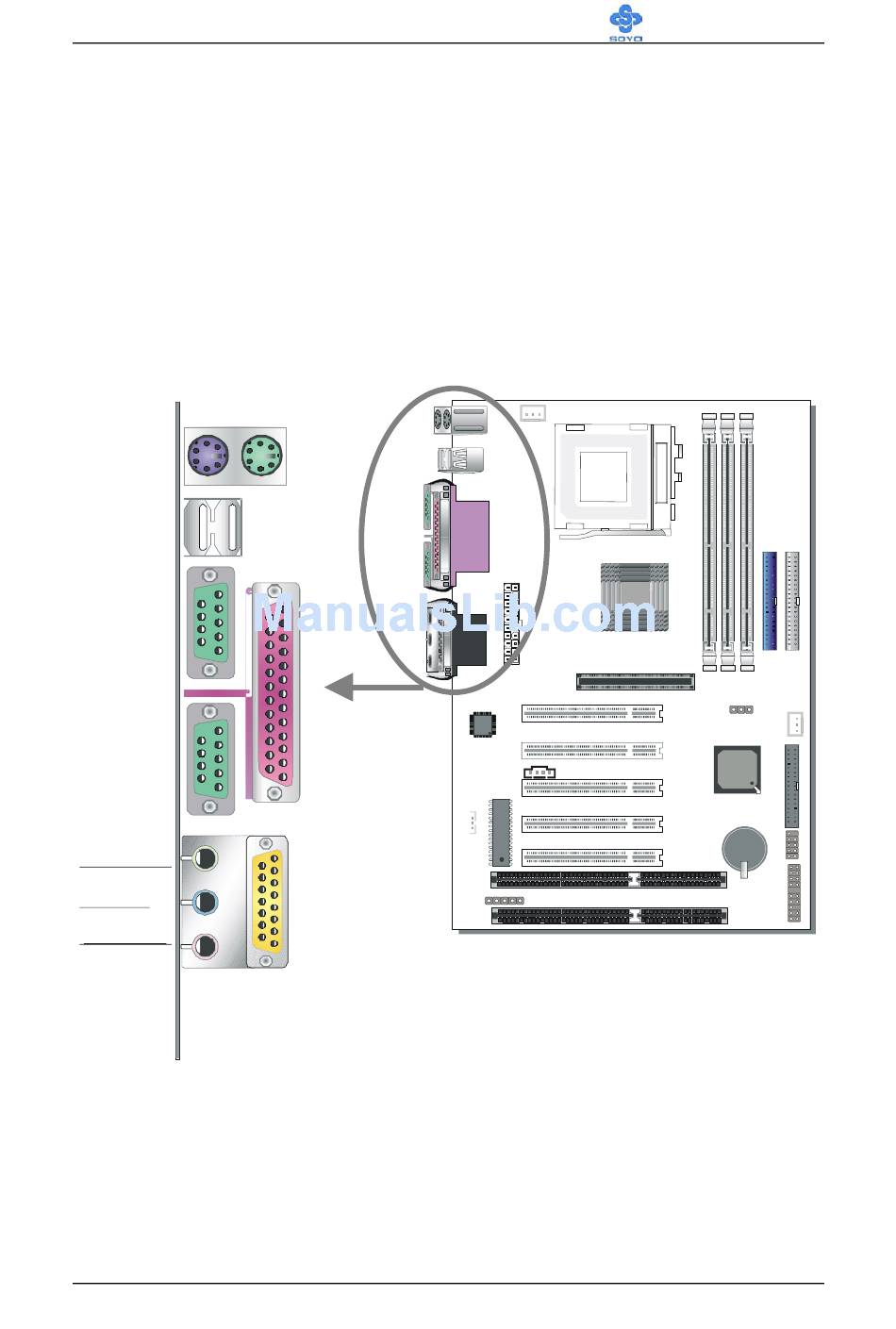

When connecting an external device, use the following figure to locate and
identify which back panel connector to plug the device to.
USB 1
COM A
COMB
JOYSTICK
LINE-OUT
LINE-IN
MIC JACK
USB 2
PRT
19
SY-7VBA133U
SDRAM
SDRAM
