Hardware Installation

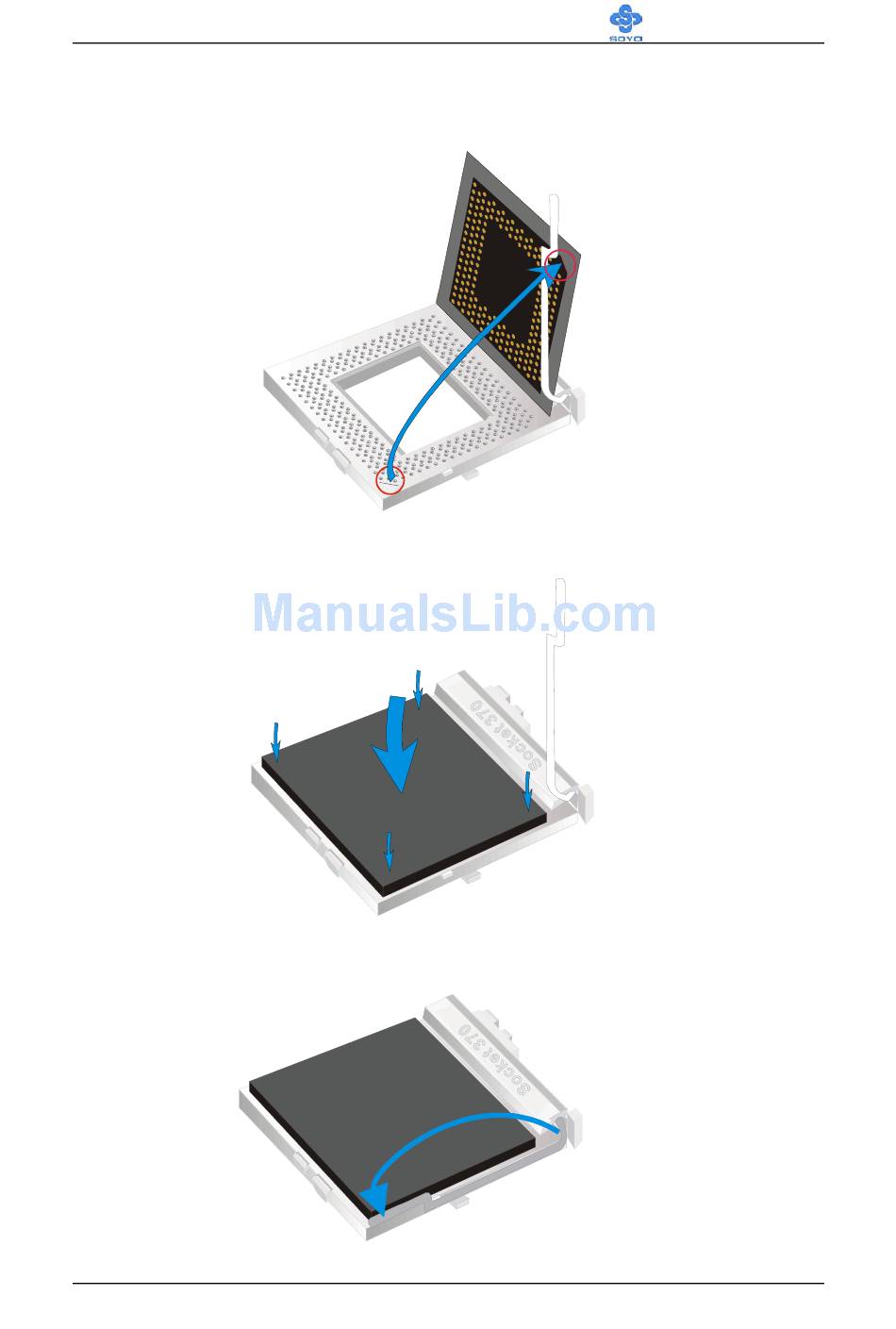

Align the blunt edge of the CPU with the matching pinhole

distinctive edge on the socket.

Seat the processor in the socket completely and without forcing.

Then close the socket handle to secure the CPU in place.

SY-7VBA133U
