Hardware Installation
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS-120.
Connect one side of the 34-pin flat cable to the floppy drive and plug the
other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.
1
1
C.

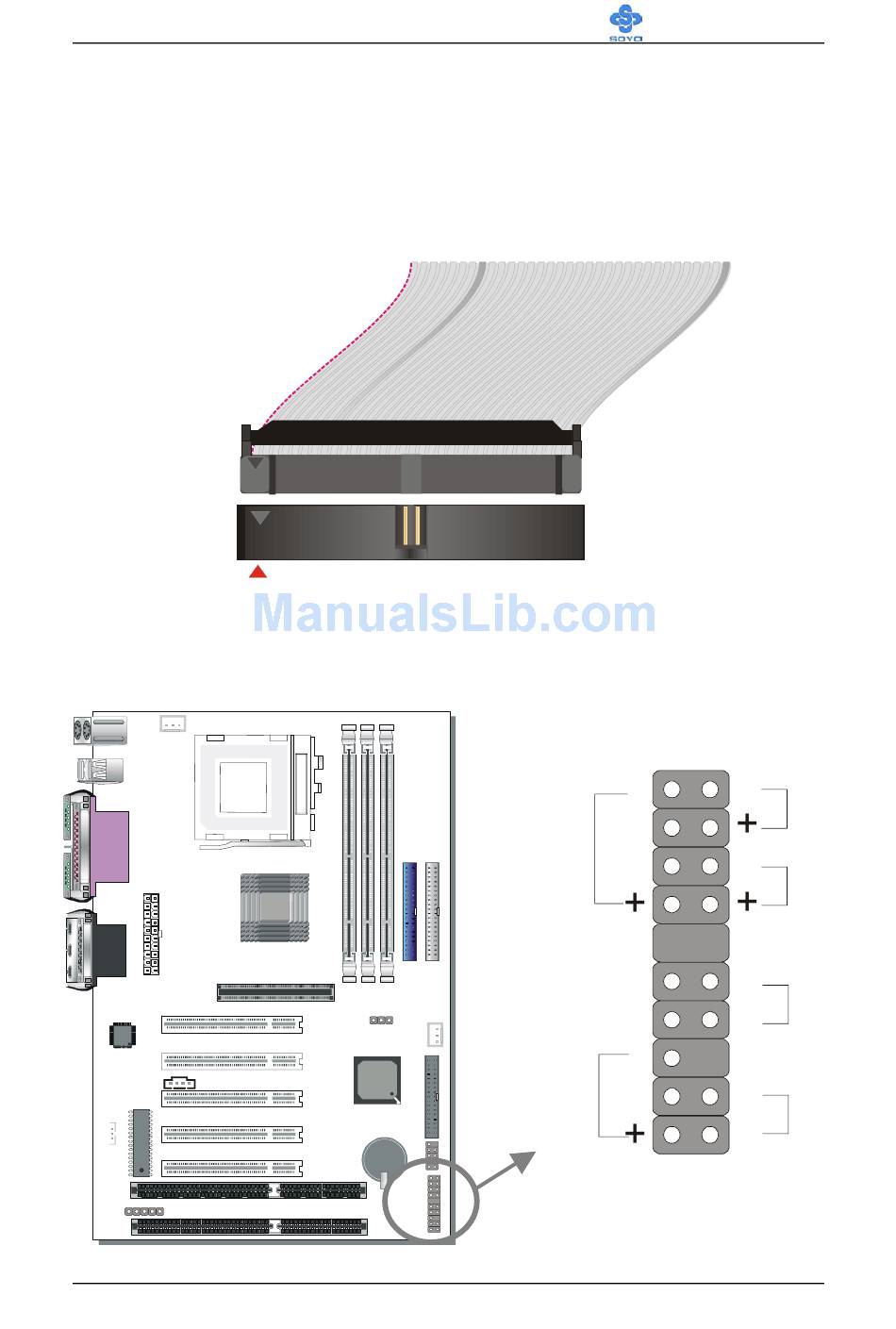

Front Panel Connections
SDRAM
SDRAM
33
33
Speaker
Key Lock
Power LED
16
SY-7VBA133U
_
_
_
ACPI LED
PWRBT
1
_
1
HDD LED
Reset
