Hardware Installation
SY-7VBA133U
E. Other Connections

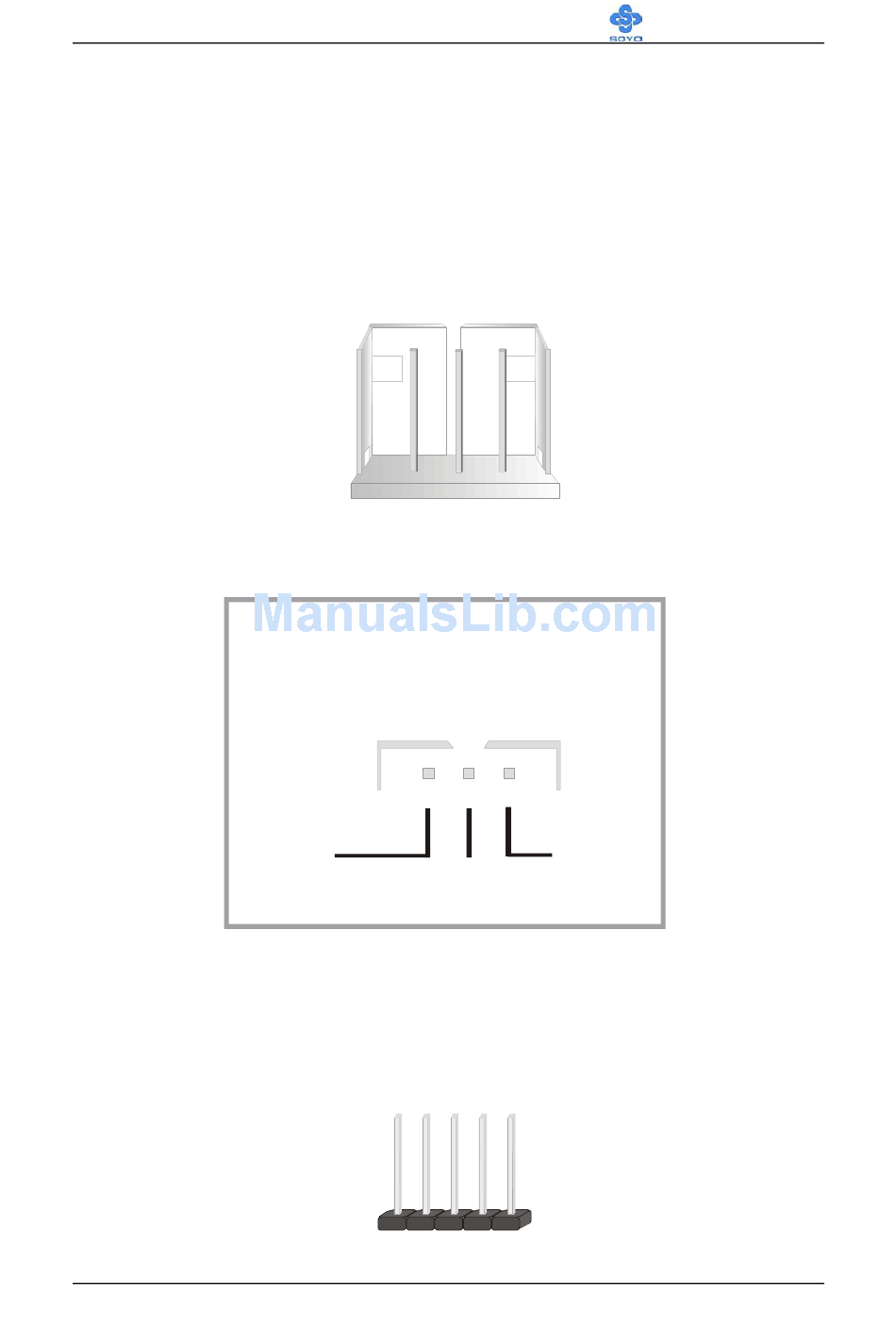

1. Wake-On-LAN (WOL)
Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP10 header on the Motherboard.
This WOL function lets users wake up the connected computer through the
LAN card.
Please install according to the following pin assignment:
Wake-On-LAN
JP10 Pin Assignment
3
2
1
MP-Wakeup
GND
5VSB
2. Standard Infrared (SIRCON)
Plug the 5-pin infrared device cable to the SIRCON header.
22
