Figure 1: 7408 Sdi To Analog Converter; Table 1: 7408 Sdi To Analog Converter - Kramer DigiTOOLS 7408 User Manual

# Feature
1
12V DC
2
V / C BNC connector
3
U / Y BNC connector
4
Y / CV
5 SDI OUT BNC Connector
6 SDI IN BNC Connector
7
ON LED
8 RS-232 Port
9 DIP-switches
4
Your 7408 SDI to Analog Converter

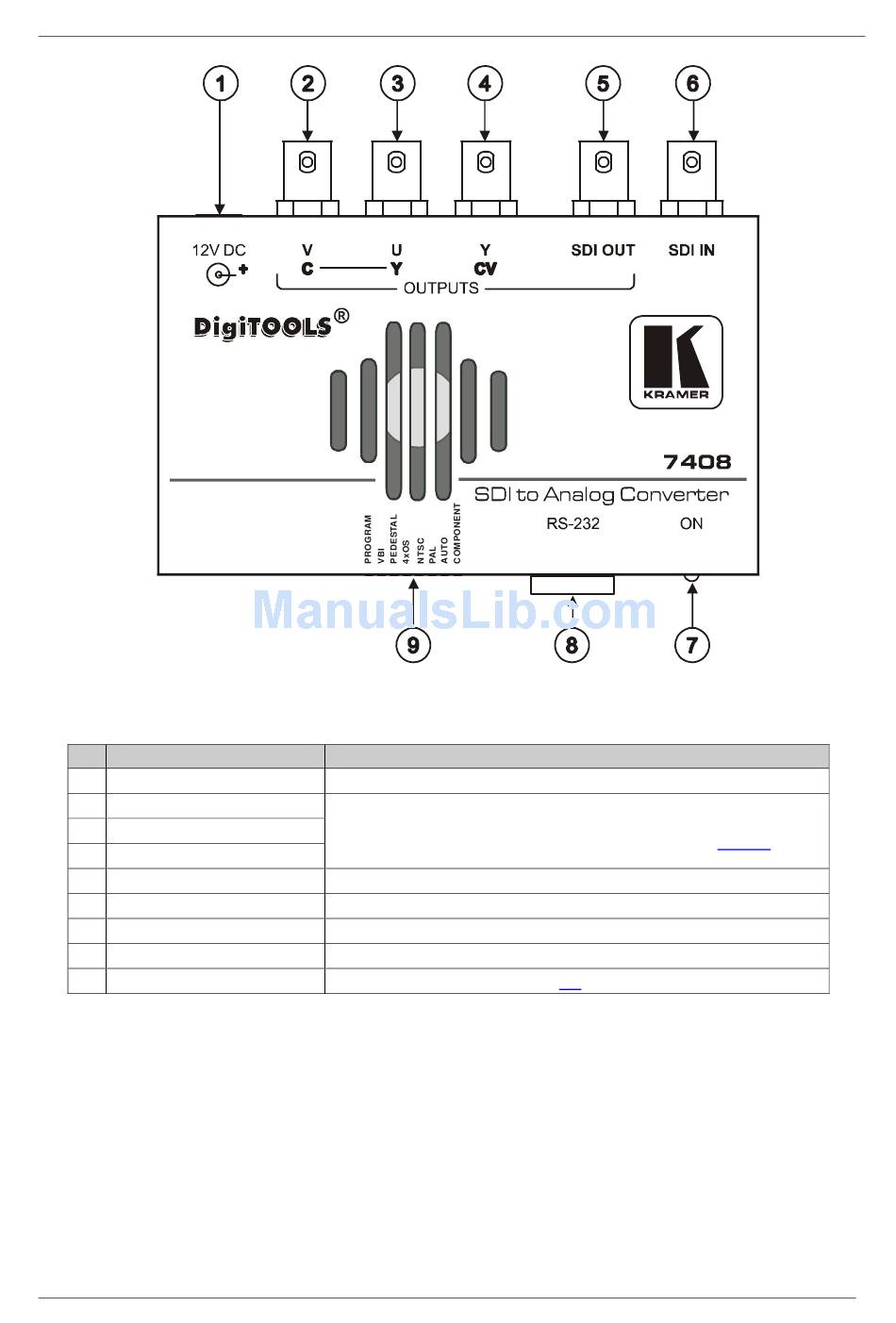

Figure 1: 7408 SDI to Analog Converter

Table 1: 7408 SDI to Analog Converter

+12V DC connector for powering the unit
Connect to: component video or composite video and/or s-Video
acceptors (according to DIP-switch selection − see
Connects to the reclocked and equalized SDI acceptor
Connects to the SDI source
Illuminates when receiving power
Connects to the PC or the remote controller
To setup the unit (see section 5.2)
Function
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Table 3)
