Kramer VP-426C Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

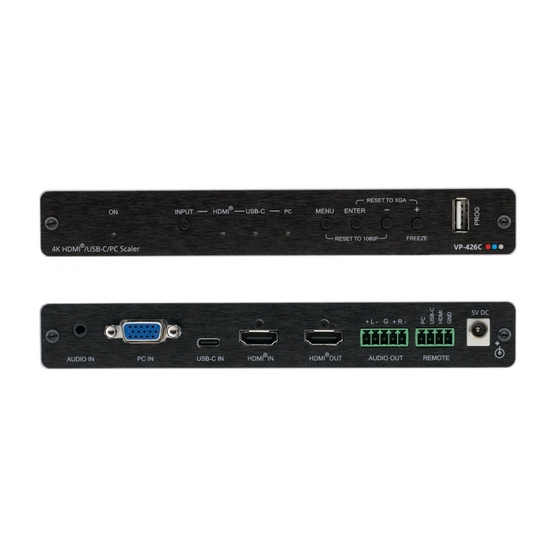

VP-426C 4K HDMI/USB-C/PC Scaler
1 Power adapter and cord

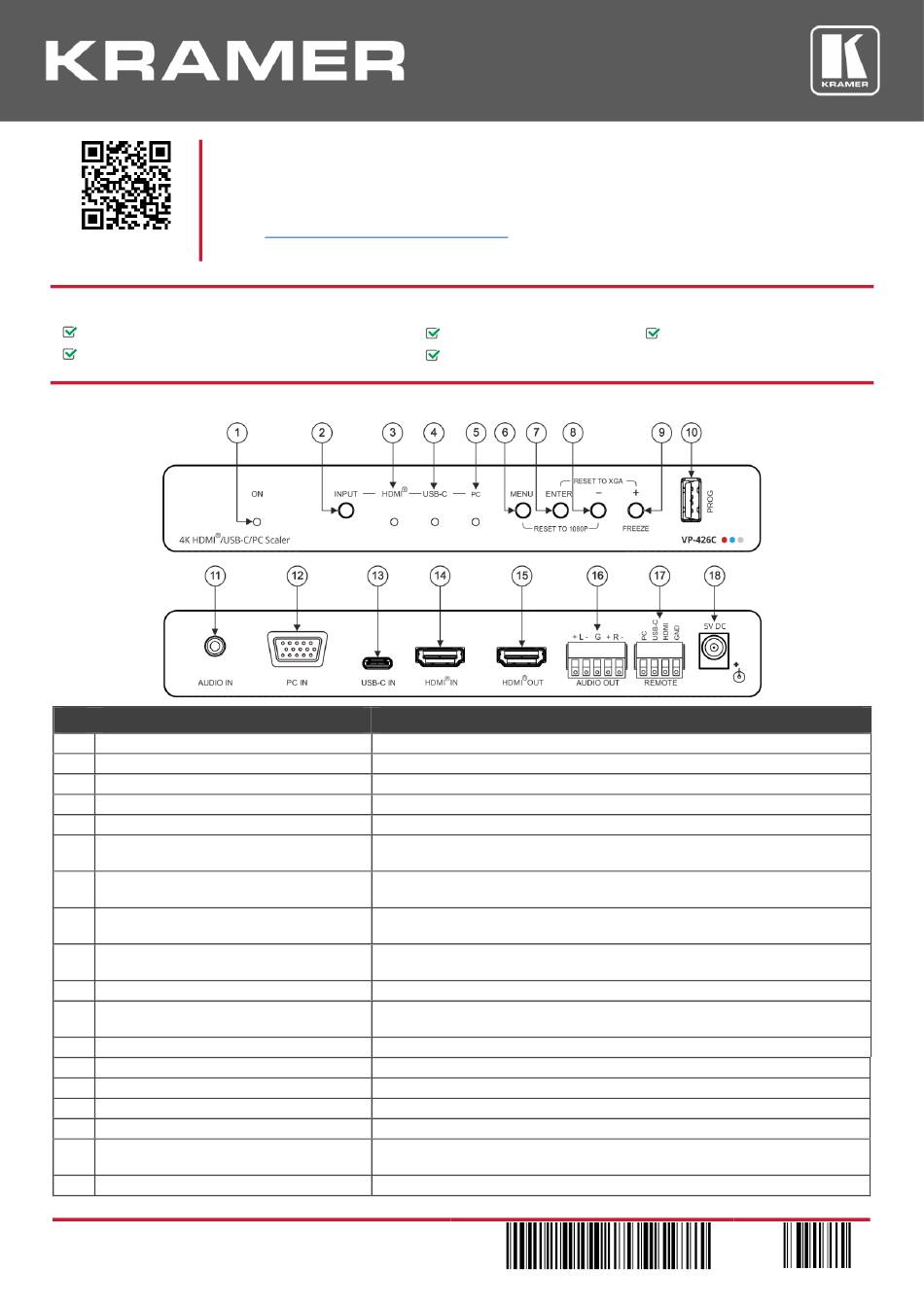

Step 2: Get to know your VP-426C
# Feature
1 ON LED
2 INPUT Button
3 HDMI™ LED
4 USB-C LED
5 PC LED
6 MENU Button
7 ENTER Button
– Button
8
9 +/FREEZE Button
10 PROG USB Connector
11 AUDIO IN PC 3.5mm Mini Jack
12 PC IN 15-pin HD Connector
13 USB-C IN USB Type C Port
HDMI™ IN Connector
14
15 HDMI™ OUT Connector
16 AUDIO OUT Terminal Block Connector
17 REMOTE 4-pin Terminal Block Connector
18 5V DC
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VP-426C Quick Start (P/N: 2900-3010055QS REV 1)
VP-426C Quick Start Guide
This guide helps you install and use your VP-426C for the first time.
Go to www.kramerav.com/downloads/VP-426C
upgrades are available.
Function
Lights green when the unit is powered.
Press to cycle the input between HDMI, USB-C and PC.
Lights when the HDMI input is selected.
Lights when the USB-C input is selected.
Lights when the PC input is selected.
Press to enter/escape the on-screen display (OSD) menu. Press together with
the – button to reset to 1080p (RESET TO 1080P).
In OSD, press to choose the highlighted menu item. Press together with the
+ button to reset to XGA (RESET TO XGA).
In OSD, press to move backward through the list or to decrement the
parameter value.
In OSD, press to move forward through the list or to increment the parameter
value. When not in OSD, press to freeze the display.
Connect to a PC for upgrading the firmware.
Connect to an unbalanced stereo audio PC source. Can also be selected as
the audio input (instead of the HDMI and USB-C embedded audio inputs).
Connect to a laptop.
Connect to a USB type-C audio-video source.
Connect to an HDMI source.
Connect to an HDMI acceptor.
Connect to a balanced stereo audio acceptor.
Connect to contact closure switches (by momentary contact between the
desired pin and GND pin) to select an input.
+5V DC connector for powering the unit.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 0 5 5 QS
1 Quick start guide
Rev: 1
