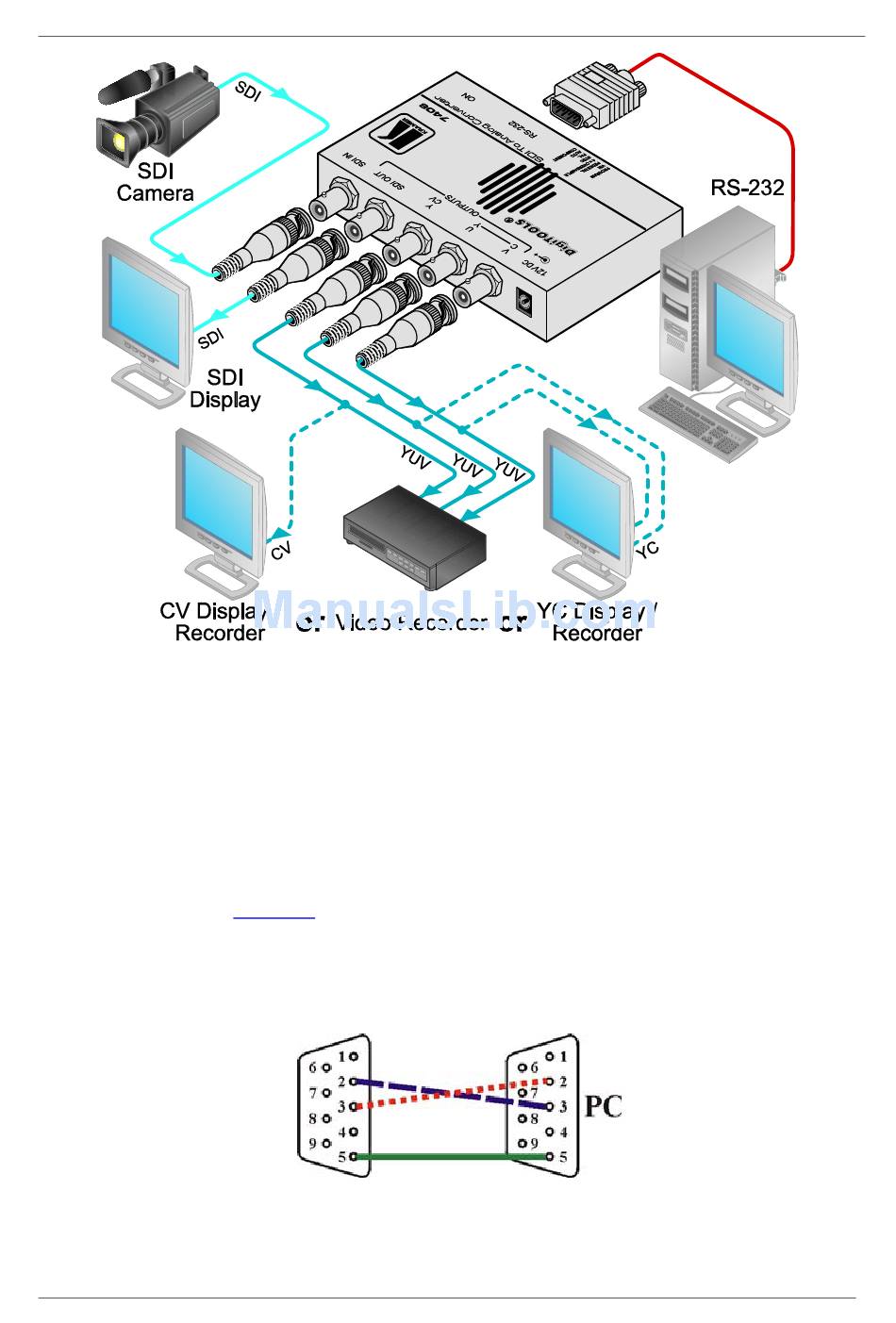

Figure 2: Connecting a 7408 SDI to Analog Converter

5.2

Connecting to the 7408 via RS-232

You can connect to the unit via a crossed RS-232 connection, using for
example, a PC. A crossed cable or null-modem is required as shown in
method A and B respectively. If a shielded cable is used, connect the shield
to pin 5.
Method A
a crossed cable (only pin 2 to pin 3, pin 3 to pin 2, and pin 5 to pin 5 need
be connected) to the RS-232 9-pin D-sub port on the PC.
Note: There is no need to connect any other pins.
6
Using Your 7408 SDI to Analog Converter
(Figure 3)—Connect the RS-232 9-pin D-sub port on the unit via

Figure 3: Crossed Cable RS-232 Connection
