Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: 413xl, Video To WUXGA Scaler 414xl, Video To WUXGA / HD Scaler... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: VP-413xl Video To WUXGA Scaler Figure 2: Setting the Output Resolution of the VP-413xl Figure 3: VP-414xl Video To WUXGA / HD Scaler Figure 4: Setting the Output Resolution of the VP-414xl Figure 5: Connecting the VP-413xl... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview The Kramer VP-413xl/VP-414xl is a high quality low cost converter for up- scaling composite video and s-Video that accepts PAL-B/D/G/H/I, NTSC 3.58, and NTSC 4.43 video formats. This compact, multi-standard unit has a built-in 3D de-interlacer and a 3D comb-filter that ensures superb quality. -
Page 6: Your Scaler

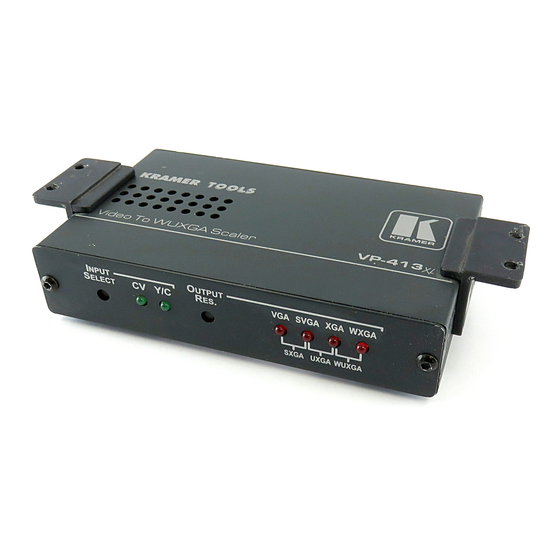

Your Scaler This section describes the VP-413xl (see section 4.1), and the VP-414xl (see section 4.2). 4.1 Your VP-413xl Video To WUXGA Scaler The VP-413xl cover is perforated to prevent chip overheating. Figure 1 and Table 2 define the VP-413xl Video To WUXGA Scaler:... -
Page 7: Sync Enable/Disable Output Function
Figure 2 and Table 3 define the output resolution options: Table 3: VP-413xl Output Resolution Options Illuminated LEDS SVGA WXGA VGA and SVGA SVGA and XGA XGA and WXGA Sync 4.1.1 Enable/Disable Output Function You can enable or disable the sync output signals when no source is connected, to enable the display/projector to enter its sleep mode, and turn off when no sync is detected. -
Page 8: Your Vp-414Xl Video To Wuxga / Hd Scaler
Your Scaler 4.2 Your VP-414xl Video To WUXGA / HD Scaler Figure 3 and Table 4 define the VP-414xl Video to WUXGA / HD Scaler: Figure 3: VP-414xl Video To WUXGA / HD Scaler KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Figure 4: Setting The Output Resolution Of The Vp-414Xl
Table 4: VP-414xl Video To WUXGA / HD Scaler Features Feature WUXGA / HD OUT HD15F Connector Y/C IN 4p Connector CV IN RCA Connector REMOTE INPUT SELECTOR PINs 12V DC INPUT SELECT Button CV LED Y/C LED OUTPUT RESOLUTION Button HD LED VGA / 480p LED SVGA / 576p LED... -
Page 10: Connecting The Scalers
INPUT SELECT button to select the desired input OUTPUT RES. button to select the desired resolution 1 Switch OFF the power on each device before connecting it to your VP-413xl. After connecting your VP-413xl, switch on its power and then switch on the power on each device... -
Page 11: Connecting The Vp-414Xl
5.2 Connecting the VP-414xl To connect the VP-414xl, as illustrated in the example in Figure 6, do the following 1. Connect a composite video source to the CV IN RCA connector (for example, a composite video player) and/or an s-Video source (for example, an s-Video player) to the Y/C 4p input connector. -
Page 12: Connecting The Contact Closure Remote Control Pins
PIN G (ground) Figure 7: Connecting the Contact Closure Remote Control PINs 1 Y/C or CV Connecting the Scalers KRAMER: SIMPLE CREATIVE TECHNOLOGY To select Y/C as the input, temporarily attach the Y/C pin to PIN G (ground) -
Page 13: Technical Specifications
VP-414xl: 1 VGA (VGA through WUXGA /HD) on a 15-pin HD computer graphics video connector VP-413xl: VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), WXGA OUTPUT RESOLUTIONS: (1366 x 768), SXGA (1280x1024), UXGA (1600x1200) and WUXGA... - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
