Kramer VP‑424C Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VP‑424C 4K HDMI/USB‑C Scaler
1 Power adapter and cord

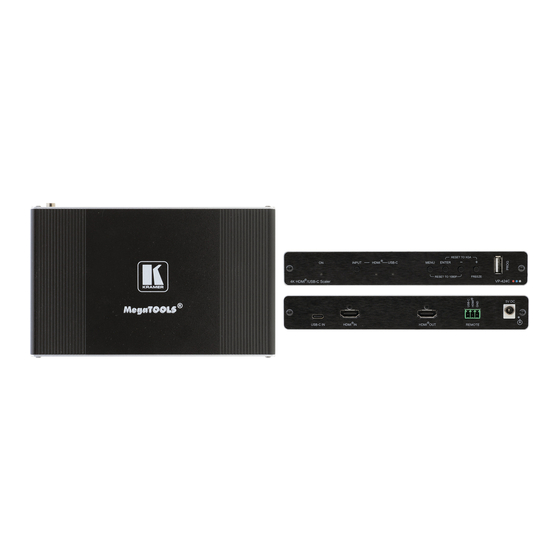

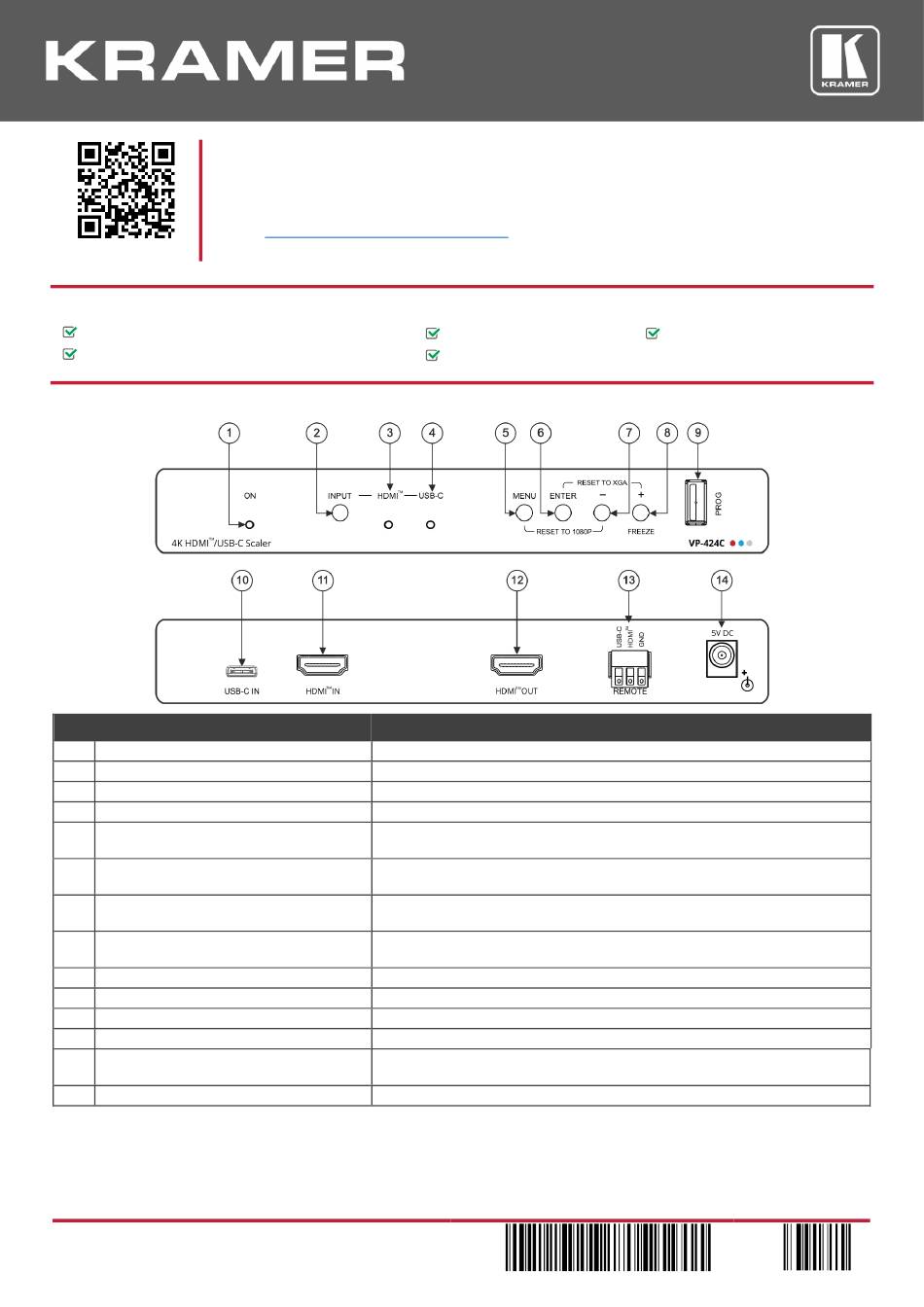

Step 2: Get to know your VP‑424C
# Feature
1 ON LED
2 INPUT Button
3 HDMI™ LED
4 USB-C LED
5 MENU Button
6 ENTER Button
– Button
7
8 +/FREEZE Button
9 PROG USB Connector
10 USB-C IN USB Type C Port
HDMI™ IN Connector
11
12 HDMI™ OUT Connector
13 REMOTE 3-pin Terminal Block Connector
14 5V DC
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VP‑424C Quick Start
VP‑424C Quick Start Guide
This guide helps install and use your VP‑424C for the first time.
YWOU
Go to www.kramerav.com/downloads/VP-424C
upgrades are available.
Function
Lights green when the unit is powered.
Press to toggle the input between HDMI and USB-C.
Lights when the HDMI input is selected.
Lights when the USB-C input is selected.
Press to enter/escape the on-screen display (OSD) menu. Press together with
the – button to reset to 1080p (RESET TO 1080P).
In OSD, press to choose the highlighted menu item. Press together with the
+ button to reset to XGA (RESET TO XGA).
In OSD, press to move backward through the list or to decrement the
parameter value.
In OSD, press to move forward through the list or to increment the parameter
value. When not in OSD, press to freeze the display.
Connect to a USB memory stick for upgrading the firmware.
Connect to a USB type-C audio-video source.
Connect to an HDMI source.
Connect to an HDMI acceptor.
Connect to contact closure switches (by momentary contact between the
desired pin and GND pin) to select an input.
+5V DC connector for powering the unit.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 0 5 6 QS
1 Quick start guide
Rev: 1
