- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-419xl Video to SXGA/HD Scaler P/N: 2900-000201 Rev 7...
-
Page 3: Table Of Contents
Controlling via the Front Panel Buttons Using the CONTROL Buttons Using the Infra-Red Remote Control Transmitter Technical Specifications Figures Figure 1: VP-419xl Video to SXGA/HD Scaler Figure 2: Connecting the VP-419xl Video to SXGA/HD Scaler Figure 3: Infrared Remote Control Transmitter VP-419xl – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-419xl Video to SXGA/HD Scaler, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-419xl away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country... -
Page 7: Overview
Overview The Kramer VP-419xl Video To SXGA/HD Scaler is a high quality converter for up- scaling composite video, s-Video (YC), and SD component video to XGA and HD resolutions. It also has a computer graphics (XGA) input, which, when selected, is routed directly (bypassed) to the output. -
Page 8: Defining The Vp-419Xl Video To Sxga/Hd Scaler

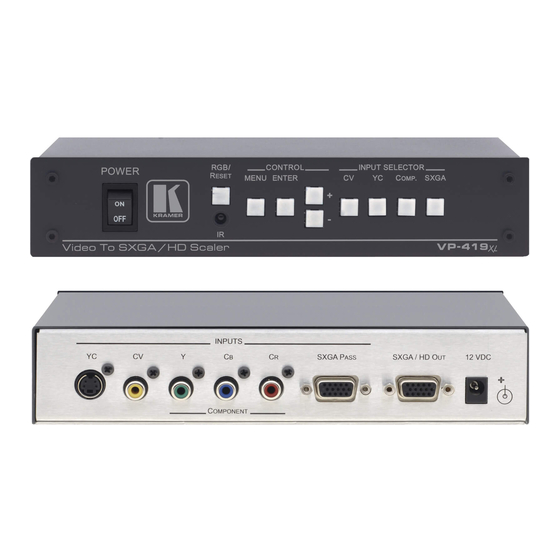

Control your VP-419xl: Directly, via the front panel push buttons Remotely, from the infra-red remote control transmitter Defining the VP-419xl Video to SXGA/HD Scaler This section defines the VP-419xl. Figure 1: VP-419xl Video to SXGA/HD Scaler Feature Function... - Page 9 This PC input signal is not scaled, but is available for pass- through when the PC source is selected SXGA / HD OUT 15-pin HD Connects to the SXGA or HDTV (component video) Connector acceptor 12 VDC +12V DC connector for powering the unit VP-419xl - Overview...
-
Page 10: Connecting The Vp-419Xl
Connecting the VP-419xl Always switch off the power to each device before connecting it to your VP-419xl. After connecting your VP-419xl, connect its power and then switch on the power to each device. To connect the VP-419xl as illustrated in the example in Figure 1. -
Page 11: Figure 2: Connecting The Vp-419Xl Video To Sxga/Hd Scaler
Figure 2: Connecting the VP-419xl Video to SXGA/HD Scaler VP-419xl - Connecting the VP-419xl... -
Page 12: Controlling The Vp-419Xl
Controlling the VP-419xl The VP-419xl can be controlled directly via the front panel buttons (see Section 5.1), via the OSD menu (see Section 5.2), and/or remotely from the infra- red remote control transmitter (see Section 5.3). Controlling via the Front Panel Buttons The VP-419xl includes the following control front panel buttons: ... - Page 13 Select ON to send H and V synchronization when Y, Pb, Pr is selected for the output H and V are always sent when RGB is selected at the output EXIT Select to exit to the MAIN MENU VP-419xl - Controlling the VP-419xl...
-
Page 14: Using The Infra-Red Remote Control Transmitter
Using the Infra-Red Remote Control Transmitter You can control the VP-419xl from the infra-red remote control transmitter, as Figure 3 defines: Keys Function POWER Turn power ON or OFF DISPLAY Turn input standard and output resolution information display ON or... -
Page 15: Technical Specifications
21.5cm x 16.3cm x 4.36cm (8.46” x 6.4” x 1.7”) W, D, H DIMENSIONS: WEIGHT: 0.66kg (1.45lbs) approx. ACCESSORIES: Power supply, IR remote control OPTIONS: 19" rack adapter RK-1 Specifications are subject to change without notice VP-419xl - Technical Specifications... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. SAFETY WARNING Disconnect the unit from the power...
