NetDisk™ Wireless User Manual

3-6-2. IP Forwarding

If you have more than two public IP addresses from the ISP, all traffic from one public IP
address can be forwarded to another internally networked computer.
Example: You can forward all traffic from 123.1.1.1 to 192.168.1.2. Set up is as follows:
1. External IP: Input IP address of forwarding computer (i.e. 123.1.1.1).
2. Internal IP: Input IP address of receiving computer (i.e. 192.168.1.2).
3. Click ADD, and Click Apply after setup of all desired configurations.

3-6-3. DMZ Server

NetDisk Wireless allows you to set up a computer as a DMZ server. This enables you to use it
as a virtual server (WEB, FTP, Telnet, etc) without using the packet-forwarding function.
1. Click DMZ Server under the Virtual Server heading.
2. Input the IP address of the computer you want to use as the DMZ Host.
3. Select Enable and Click OK to save the configuration.
XIMETA, Inc

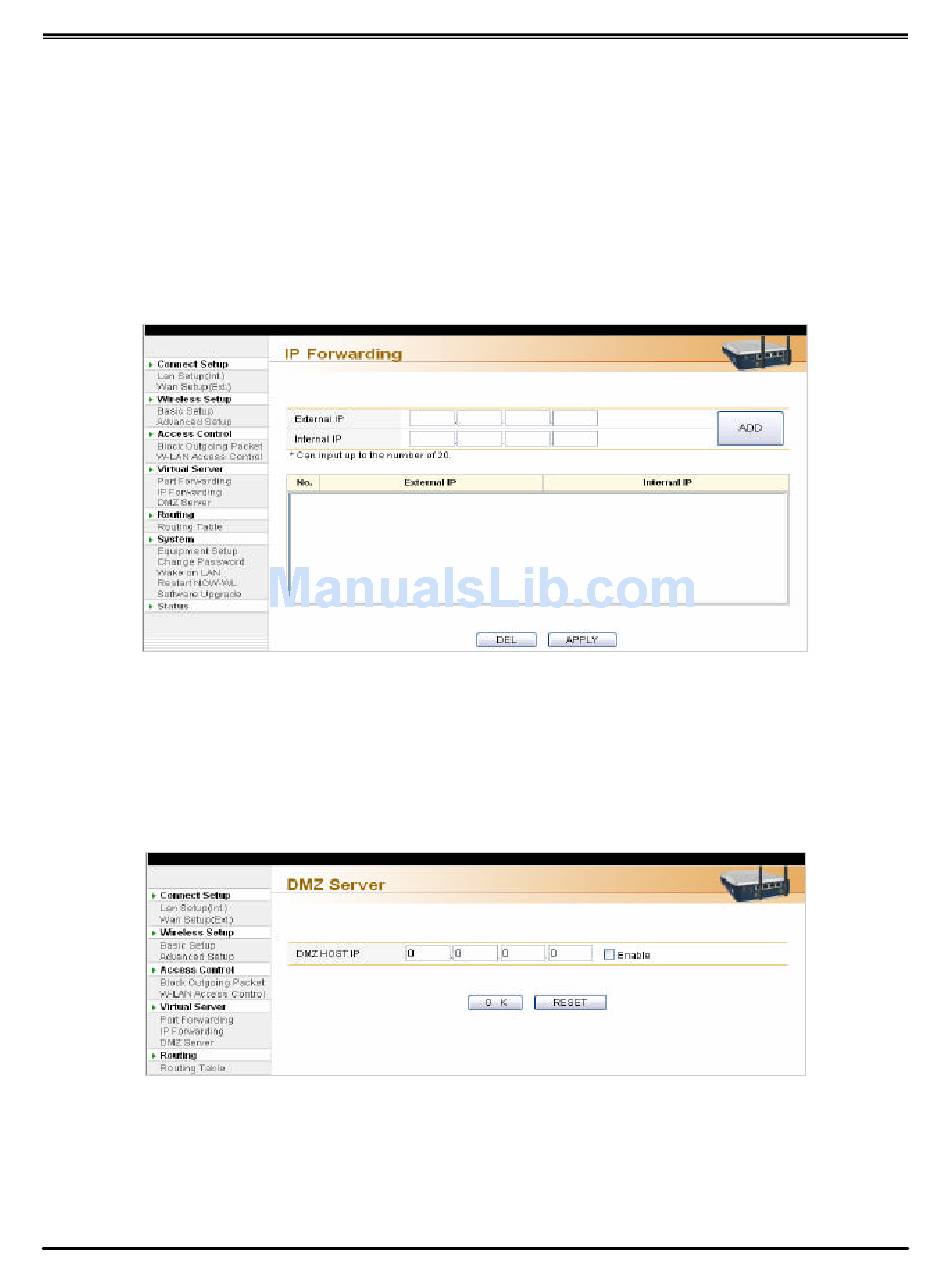

[Figure 3-18. Setup IP Forwarding]
[Figure 3-19. Setup of DMZ Server]
27
