NetDisk™ Wireless User Manual

3-4-3. Advanced Setup for Wireless NIC (Network Interface Card)

RTS Threshold
Fragment Threshold
Beacon Interval
DTIM Interval
XIMETA, Inc

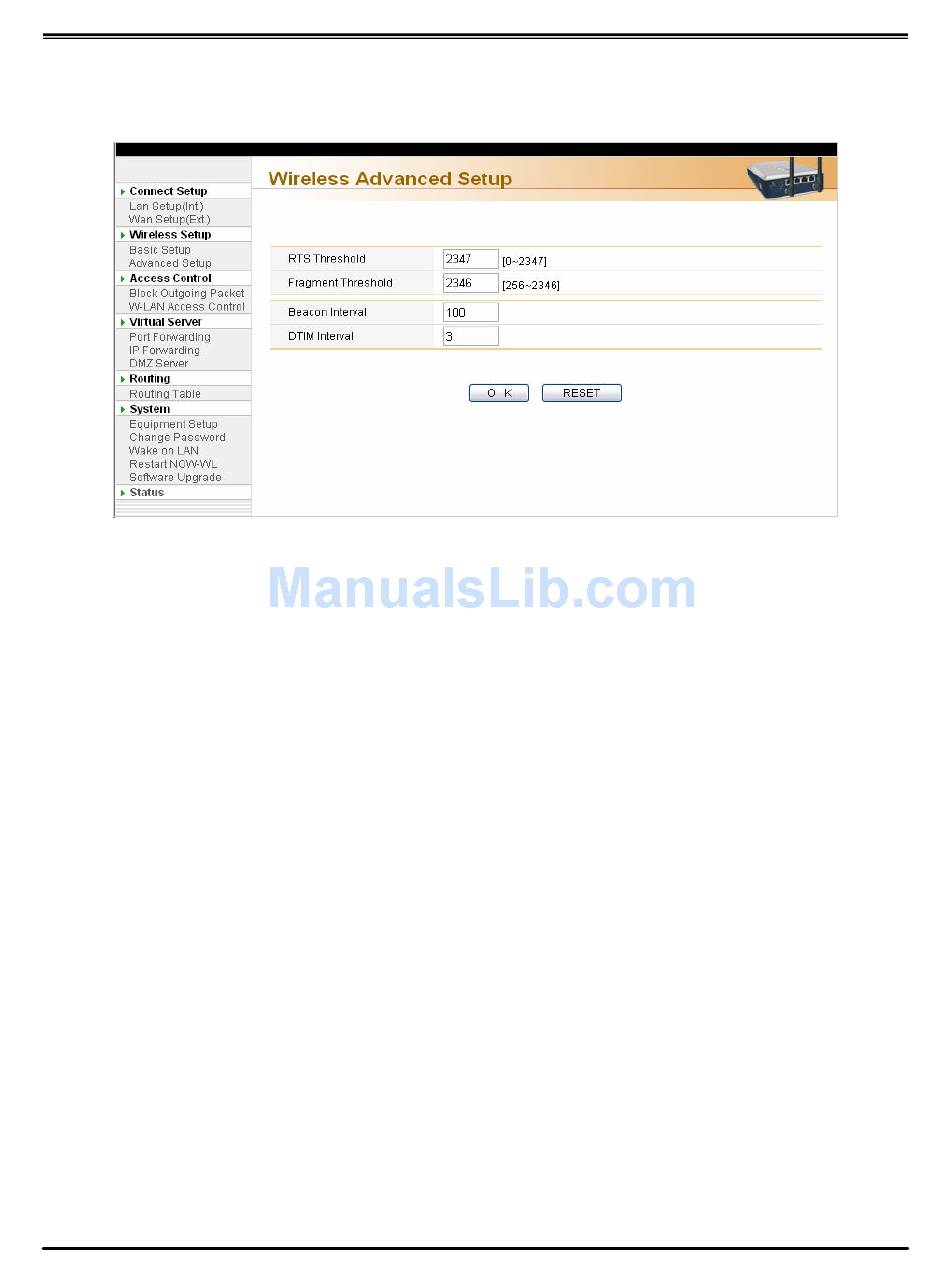

[Figure 3-16. Advanced Setup]
: A wireless mechanism for transmission and reception of packets
under hidden node. It is not commonly used. If enabled, data will be
transmitted and received through RTS/CRT protocol. You can only
input numbers between 0 ~ 2347. Default is 2347.
: It is not recommended to change the value from its default setting.
The range is 256-2346 bytes. You can specify the maximum size for
a packet before data is fragmented into multiple packets. If you
experience a high packet error rate, you may slightly increase the
Fragmentation Threshold. Setting the Fragmentation Threshold too
low may result in poor network performance
: Periodically wakes up wireless clients by sending Beacon control
packets. If interval time is too long, synchronization will be slow and if
interval is too short, there will be overhead on the network. The
default is 100 milliseconds. Available range is 1 ~ 65.535.
: Informs clients of the next interval for listening to broadcast and
multicast messages. Under power save mode, DTIM Interval controls
stations. Default is 3. Available range is 1 ~ 255. [Beacon Interval x
3 = DTIM Interval]
24
