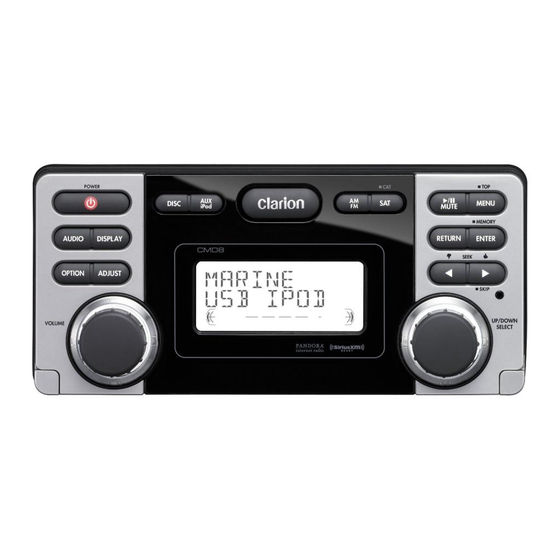

- Page 1 Owner’s manual Mode d’emploi Manual de instrucciones Istruzioni per l’uso CMD6 WATERTIGHT MARINE CD/USB RECEIVER WITH CeNET CONTROL LECTEUR MARINE ÉTANCHE CD/USB AVEC COMMANDE CeNET RECEPTOR CD/USB MARINO CON CONTROL CeNET, HERMÉTICO LETTORE CD/RICEVITORE USB MARINO IMPERMEABILE CON COMANDO CeNET...
- Page 2 APPARATET BØR KUN ÅBNES AF FAGFOLK MED SÆRLIGT KENDSKAB TIL APPARATER MED LASERSTRÅLER! Indvendigt i apparatet er anbragt den her gengivne advarselsmækning, som advarer imod at foretage sådanne indgreb i apparatet, at man kan komme til at udsaætte sig for laserstråling. CMD6...
- Page 3 Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. Pour les Étas Unis et le Canada seulement www.clarion.com...
-
Page 4: Table Of Contents
Thank you for purchasing this Clarion product. Please do not use this product on vehicles. Please read this owner’s manual in its entirety before operating this equipment. Check the contents of the enclosed warranty card and keep it carefully with this manual. -
Page 5: Precautions
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. Bottom View of Source Unit CMD6... -
Page 6: Front Panel
5. Strong impacts to the operating or display section can cause damage or deformation. 6. If the front panel does not open fully, gently open it with your hand. 7. Do not touch the panel OPEN detection switch. OPEN detection switch. CMD6... -
Page 7: Controls
[MENU] button [OPEN] button • Use to switch to the menu mode. • Open the panel by pressing the “Clarion” oval ] buttons latch button. Audio will mute with the front • Press and hold the button (1 sec.) to play or panel open. - Page 8 [RESET] button • Press the button when the following symptoms occur. Nothing happens when buttons are pressed. Display is not accurate. The settings will remain in the ROM even if you turn the power off or press the reset button. CMD6...
-
Page 9: Remote Control
CMRC5 (shown below), CMRC6 or CMRC7. Note: If the remote control is connected with this unit while the power on, please restart this unit again to confirm the normal display. IR-Receiver /SOURCE] [ ENTER] [X], [V] [w], [z] [ MENU/BAND] CMD6... - Page 10 Press and hold the [X] button to fast-reverse the disc. Pressing and holding the [ ] or [ ] button (1 sec.) will move forward or backward faster than normal play, and pressing and holding it for (3 sec.) will do the operation even faster. CMD6...
-
Page 11: Wireless Remote Control Unit Operations
(1 sec.) to perform folder repeat play. [RDM] button • Press to perform random play. • When in MP3/WMA/AAC and USB/MTP modes, press and hold the button (1 sec.) to perform folder random play. CMD6... -
Page 12: Cd Changer Mode
(+) facing upwards. 3 Press the battery in the direction indicated by the arrow so that it slides into the compartment. 4 Replace the cover and slide in until it clicks into place. Insertion guide CMD6... -
Page 13: Operations
External equipment not connected with CeNET is not displayed. iPod/MTP can connect to this unit via USB cable. 1. Turning the [VOLUME] knob clockwise increases the volume; turning it counterclockwise decreases the volume. The volume level is from 0 (minimum) to 33 (maximum). CMD6... - Page 14 Turn the [UP/DOWN] knob to adjust the gain from –7 to +7 (The factory default setting is “0”). ● Adjusting the treble 2-1. Select “TREBLE”. Turn the [UP/DOWN] knob to adjust the gain from –6 to +6 (The factory default setting is “0”). CMD6...
-
Page 15: Radio Operations
] button. The sound turns off 4. Press and hold the [ENTER] button to store and “MUTE” appears on the display. the current station into preset memory. 2. Press the [ ] button again to cancel the mute mode. CMD6... -
Page 16: Auto Store
1. Press the [OPTION] button. 2. Press the [X] or [V] button to select “PRESET SCN”. 3. Press the [ENTER] button. When a desired station is tuned in, perform step 1-3 again to continue receiving that station. CMD6... -
Page 17: Sirius Satellite Radio Operations
This function allows you to input the channel No. desired preset channel. directly. 5. Press and hold the [ENTER] button (2 sec.) 1. Press the [ENTER] button. to store the current channel into preset 2. Press the [X] or [V] button to move the memory. cursor. CMD6... -
Page 18: Parental Lock Function
5-1.Press the [X] or [V] button to move the This function is available in the category selection cursor. mode. 5-2.Turn the [UP/DOWN] knob to select a 1. Press the [OPTION] button. number. 6. Press and hold the [ENTER] button. CMD6... - Page 19 5. Press and hold the [ENTER] button. This function allows you to unskip the skiped channel. 1. Press the [OPTION] button. 2. Press the [X] or [V] button to select “UNSKIP ALL CH”. 3. Press and hold the [ENTER] button. CMD6...
-
Page 20: Cd/Mp3/Wma/Aac Operations
If the front panel will not open far enough, open it 2. The folder name and file name can be displayed as the title during MP3/WMA/AAC gently with your hand. CMD6... -
Page 21: Displaying Cd Titles
● Track-down 1. Press the [X] button to move back to the beginning of the current track. 2. Press the [X] button twice to move back to 3. Close the front panel. the beginning of the previous track. CMD6... -
Page 22: Folder Select
2. Press the [X] or [V] button to select “TRICK ● Scan play PLAY OFF”. 3. Press the [ENTER] button. This function allows you to locate and play the first 10 seconds of all the tracks recorded on a disc. CMD6... -
Page 23: Operations Common To Each Mode
“ON”. 3-1. Turn the [UP/DOWN] knob to adjust the 2-1. Select “TEL-SP”. contrast. 3-1. Turn the [UP/DOWN] knob to select “RIGHT” or “LEFT”. • RIGHT: Telephone calls can be heard on the front right speaker connected to this unit. CMD6... - Page 24 ROM. The stored settings like preset channels, password adjusted areas, adjust mode settings and audio mode settings can be formatted by this function. 2-1. Select “RESET”. 3-1. Press and hold the [ENTER] button. This unit will be restarted automatically. CMD6...
-
Page 25: Accessories
USB memory devices. portable audio players, consult your nearest Devices compatible with “USB Mass Storage Clarion dealer, or visit Clarion’s website. Class” can be used merely by connecting to the host device, without need for special drivers or application software. - Page 26 USB/MTP mode is selected, since it may result in loss or damage to data on the USB memory/MTP device. Always backup and save important data on your computer. 2. Remove the USB memory/MTP device from the USB cable. CMD6...
-
Page 27: Ipod Operations
2. Press the [X] or [V] button to select “RPT”. 3. Press the [ENTER] button. ● Random play Play all albums within a selected category, in random order. (Corresponds to “Shuffle (Albums)” command on iPod.) 2. Press the [X] or [V] button to select “RDM”. CMD6... - Page 28 • Character code information is UTF-8; ↔ “SONGS” ↔ “GENRES” ↔ displayable characters include English “COMPOSERS”... alphanumerics, some symbols, and some umlaut characters. • Unsupported characters will be replaced by asterisks (*). 3. Press the [V] button to select the category. CMD6...
-
Page 29: Xm Satellite Radio Operations
For details, see the following operation receivers: descriptions. • XM Satellite Interface Adapter (Mini-Tuner Included) : CNP2000UC Clarion cable for CNP2000UC : CNPCLA1 A total of 18 satellite radio stations can be stored. 1. Press the [SAT] button. 6-XM1, 6-XM2 and 6-XM3... - Page 30 In a category scan, broadcast channels in the same category as the current channel are selected about every 10 seconds. 1. Press the [OPTION] button. 2. Press the [X] or [V] button to select “CAT SCN”. 3. Press the [ENTER] button. And start the category scanning. CMD6...
-
Page 31: Cd Changer Operations
This function continues automatically until it is cancelled. 2. Press the [X] or [V] button to select “RDM”. 3. Turn the [UP/DOWN] knob to select “ALL”. 4. Press the [ENTER] button. CMD6... - Page 32 ● To cancel play 2. Press the [X] or [V] button to select “TRICK PLAY OFF”. 3. Press the [ENTER] button. CMD6...
-
Page 33: Troubleshooting
1. Turn down sound volume. Function can also be is operating. restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit operates). 2. If the sound is muted again, consult our service department. CMD6... - Page 34 Can’t insert the The device has been inserted Try reversing the connection direction of the device device. improperly. (usually the brand name surface should be facing left). The connector is broken. Replace with a new device. CMD6...
-
Page 35: Error Displays
Do not support the HUB Do not use the HUB devices. devices. If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. CMD6... -
Page 36: Specifications
91 dBA (reference: 1 W into 4 ) Maximum Power Output: 200 W (50 W ✕ 4 ch) Bass Control Action (100 Hz): +14 dB, –14 dB Treble Control Action (10 kHz): +12 dB, –12 dB Line Output Level (CD 1 kHz): 2 V CMD6... -
Page 37: Others
Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. CMD6... - Page 38 Clarion Co., Ltd. PE-3162B All Rights Reserved. Copyright © 2009: Clarion Co., Ltd. 2009/02 280-8771-00 Printed in China / Imprimé en Chine / Impreso en China...
-
Page 39: Antes De Comenzar
Printed in Philippines / Imprimé aux Philippines / Impreso en Filipinas / Stampato nelle Filippine 2009/2 284-1589-00 Installation/Wire Connection Guide / Manuel d’installation et de connexion Guía de instalación/conexión de cables / Guida all’installazione/collegamento dei fili English Français Español Italiano BEFORE STARTING / PRÉPARATIFS / ANTES DE COMENZAR /... - Page 40 English Français Español Italiano INSTALLING THE SOURCE UNIT / INSTALLATION DE L’APPAREIL PILOTE INSTALACIÓN DE LA UNIDAD FUENTE / INSTALLAZIONE DELL’UNITÀ English Français Español Italiano ■ Marine stereo mounting dimensions ■ Dimensions de montage de l'appareil stéréo ■ Dimensiones de montaje en una ■...
- Page 41 English Français Español Italiano CAUTIONS ON WIRING / PRÉCAUTIONS AU SUJET DES CONNEXIONS PRECAUCIONES PARA LA CONEXIÓN DE CABLES / PRECAUZIONI RIGUARDANTI IL CABLAGGIO English Français Español Italiano 1. Be sure to turn the power off when wiring. 1. S’assurer de mettre l’appareil hors circuit 1.
-
Page 42: Wire Connections
Sirius SC-C1) device) Cable DIN (conéctelo a la unidad de control remoto alámbrica externa) SALIDA DE AUDIO FIJA IZQUIERDA Verde (Blanco) SALIDA DE AUDIO FIJA DERECHA Verde (Rojo) Cable USB (conéctelo a la memoria USB/MTP/ & dispositivo iPod) Clarion Co., Ltd. - Page 43 CAUTION Drill appropriately prepared holes at the 6 places for fixing the screw depending on the materials and plate thickness of the panel. CAUTION INSTALLATION TEMPLATE...
- Page 44 Pour Ie Canada et les Etats-Unis seulement Ce produit Clarion vendu par marchand autorise Clarion est garanti contre tous defauts de materiel et de mise en CBuvre pour une duree de un (1) an a compter de la date de vente initiale quand I'achat ET I'installation ont ete effectues chez un marchand autorise Clarion.
- Page 45 Should you have any difficulties with the performance of this product during the warranty period, please call Clarion or visit our web site for a listing of Authorized Warranty Service Centers in your area. You may also contact Clarion Customer Service at the address listed below for any service help you may need with Clarion products.
