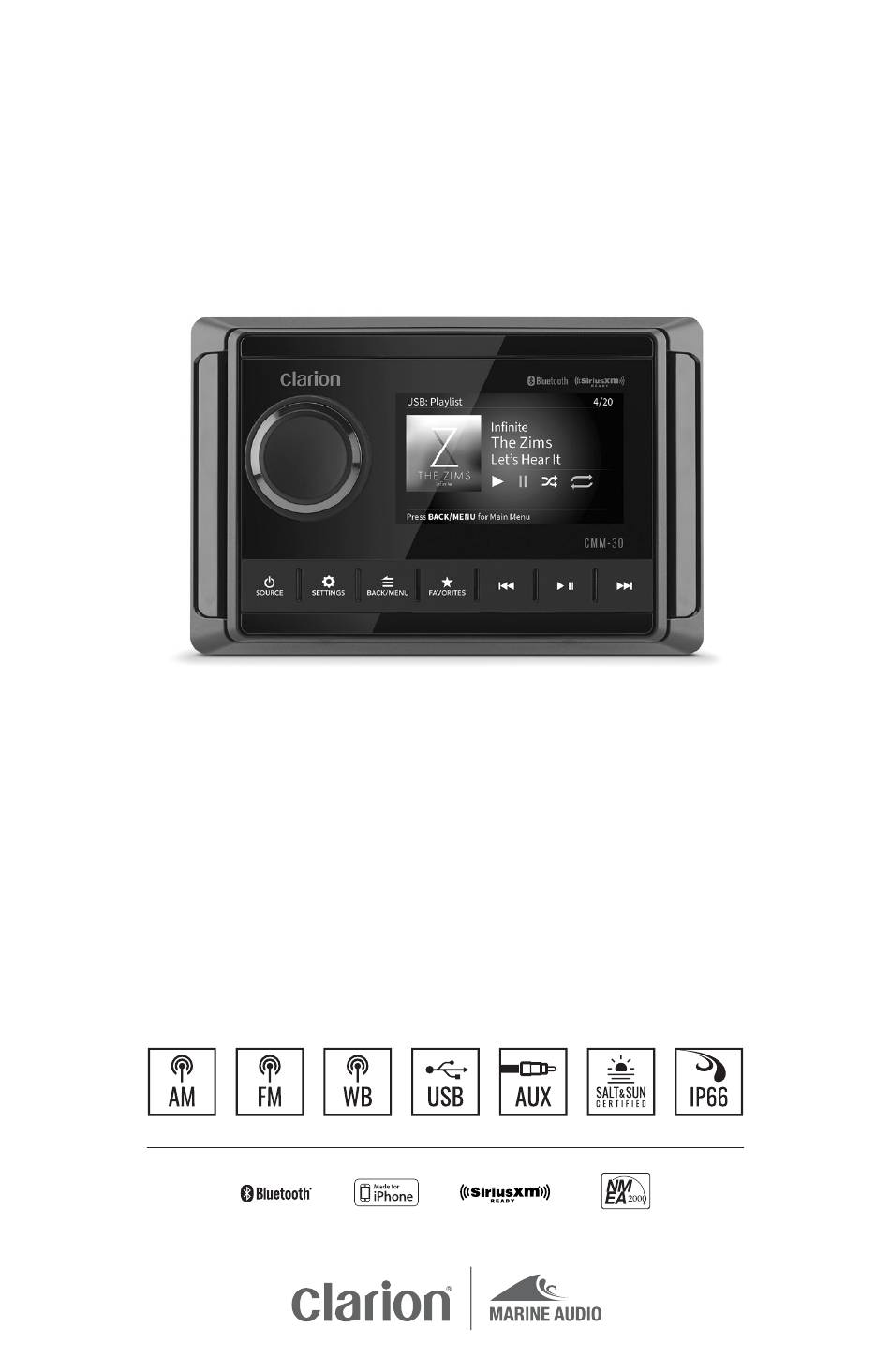

- Page 1 CMM-30 Marine Source Unit with Full-Color LCD OWNER’S MANUAL MANUEL D’UTILISATION MANUAL DEL PROPIE TARIO BEDIENUNGSANLEITUNG MANUALE DEL PROPRIE TARIO...
- Page 2 #8 x 1 in (25 mm) (x4) 3.68W in x 3.09H in (94W mm x 79H mm) 7/64 in (2.78 mm) #8 x 1 in (25 mm)
- Page 3 CMM-30 L (BK) AUX IN R (RD) L (BK) ZONE 1 R (RD) L (BK) ZONE 2 R (RD) L (BK) ZONE 3 R (RD) L (BK) ZONE 4 R (RD) Z1 SPKR OUT Z1 L+ (WH) Z1 L− (WH/BK)
-
Page 4: Safety Considerations
FCC COMPLIANCE STATEMENT SAFETY CONSIDERATIONS This device complies with Part 15 of • Only use this product in vehicles with the FCC Rules. Operation is subject 12 volt, negative-ground electrical to the following two conditions: systems. This product is not certified (1) this device may not cause harmful or approved for use in aircraft. - Page 5 GENERAL CONTROL FUNCTIONS Control Function Source/ • Short press to turn ON; Long press to turn OFF Power • When on, short press to display the Source: Select menu Volume/ • Rotate to adjust volume Select • Rotate/press for navigation and making selections •...
- Page 6 SYSTEM MENU SETTINGS • Long press to access the Settings: Main Menu • Rotate to navigate • Press to make selections Setting Function Audio Zone Setup Configures each set of audio zone outputs Aux Input Configures AUX input sensitivity: 2V or 1V RMS (default) Sensitivity Diagnostic Displays hardware and software version info...
- Page 7 TONE, BALANCE & EQ MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make selections Setting Function Note Treble Treble level control from -10 to +10 EQ must be set Mid level control from -10 to +10 to Off Bass Bass level control from -10 to +10...
- Page 8 BLUETOOTH MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make selections Setting Function Now Playing Return to the Now Playing Screen Connect Paired Display all paired devices for connection Device Pair New Device Initiates Pairing Mode (current connected devices will be disconnected) Set Primary Device Assign priority to a paired device for automatic connection...
- Page 9 USB MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make selections Setting Function Now Playing Return to the Now Playing Screen Random Random playback of all tracks Repeat Repeats playback of the current track or all tracks Play All Plays all tracks within all folders Folder list...
- Page 10 When the Parental Controls tuner and antenna, power on your feature is enabled, channels with mature CMM-30 and select SiriusXM mode. content are restricted and will require a You should be able to hear the 4-digit lock code to access.
- Page 11 SIRIUSXM MAIN MENU This allows access to the SiriusXM operational menu options. Refer to the table below for available settings and functionality. 1. Press to access the SiriusXM: Main Menu. 2. Turn to highlight one of the menu settings listed in the table below and press to enter.
-
Page 12: Siriusxm Troubleshooting
SIRIUSXM TROUBLESHOOTING Advisory messages may appear on the display when a SiriusXM-Connect Vehicle Tuner is connected to the CMM-30. Refer to the table below for an explanation and suggested corrective actions. Advisory Description Message The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. -
Page 13: Specifications
SPECIFICATIONS Electrical Operating Voltage 14.4V DC (10V – 16V) Operating Temp Range -4° F to +140° F (-20° C to +60° C) Current Draw / Fuse Value 15 A (max) / 33 mA (standby) / 15 A NMEA 2000 ® 1 (Micro-C connector) Simrad, Lowrance, Garmin Compatible MFDs... - Page 14 AUXILIARY CONTROL OPTIONS Two connection types are included for adding control capabilities from auxiliary locations. Refer to the supplied Owner’s Manual of each controller/ type (sold separately) for specific user and installation instructions. REMOTE Connection NMEA 2000 Connection ® Permits direct connection of NMEA 2000 , Micro-C connector ®...
