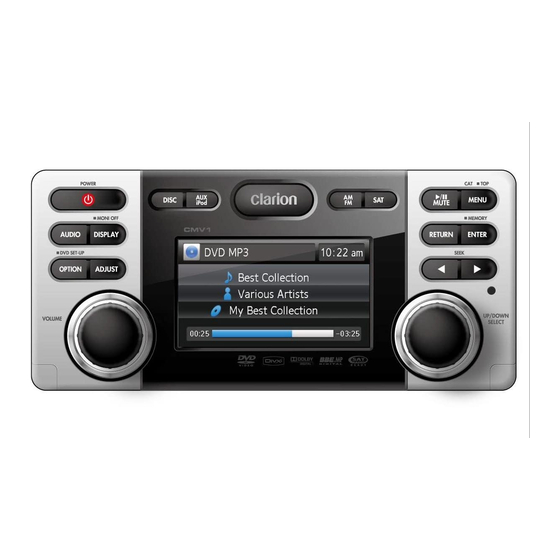

CMV1
WATERTIGHT MARINE DVD/CD/USB RECEIVER
WITH CeNET CONTROL
LECTEUR MARINE ÉTANCHE DVD/CD/USB AVEC
COMMANDE CeNET
RECEPTOR DVD/CD/USB MARINO CON CONTROL
CeNET, HERMÉTICO
LETTORE DVD/CD/RICEVITORE USB MARINO
IMPERMEABILE CON COMANDO CeNET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion CMV1

Summary of Contents for Clarion CMV1

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones Istruzioni per l’uso CMV1 WATERTIGHT MARINE DVD/CD/USB RECEIVER WITH CeNET CONTROL LECTEUR MARINE ÉTANCHE DVD/CD/USB AVEC COMMANDE CeNET RECEPTOR DVD/CD/USB MARINO CON CONTROL CeNET, HERMÉTICO LETTORE DVD/CD/RICEVITORE USB MARINO IMPERMEABILE CON COMANDO CeNET...
  • Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interence received, including interference that may cause undersired operation. THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CLARION CO.,LTD. 7-2 SHINTOSHIN,CHUO-KU,SAITAMA-SHI, SAITAMA, JAPAN...

  • Page 3: Clarion Product Registration Information

    Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Pour les Étas Unis et le Canada seulement Cher client: Nous vous remercions d’avoir acheté...

  • Page 4: Table Of Contents

    Thank you for purchasing the Clarion CMV1. • Please do not use this product on vehicles. • Please read this owner’s manual thoroughly before operating this equipment. • After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).

  • Page 5: Features

    1. FEATURES ■ Watertight Frontpanel/Chassis ■ DVD-Video, +/– R/RW and DivX playback ■ BBE MP for USB Audio DVD video features This unit provides the following functions in addition to the high image quality and sound quality of DVD video. Note: •...

  • Page 6: Playable Discs

    Playable discs This DVD player can play the following discs: DVD video discs In addition, the DVD player can play CD-R/RW, DVD-R/RW, and DVD+R/RW discs on which the following media files have been recorded: MP3 ID3 TAG For detailed information, see the sections entitled “CD/MP3/WMA/AAC Operations” (page 24) and “DivX Operations”...

  • Page 7: Precautions

    THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CLARION CO.,LTD. 7-2 SHINTOSHIN,CHUO-KU,SAITAMA-SHI, SAITAMA, JAPAN • “DivX”, “DivX Certified”, and associated logos are trademarks of DivX, Inc., and are used under license.

  • Page 8: Controls

    • Use to switch to USB mode, iPod mode or AUX mode. [OPEN] button • Open the panel by pressing the “Clarion” oval latch button. Audio will mute and the display will be off with the flip down panel open.
  • Page 9 Functions of Buttons [ENTER] button • Press and hold the button to input the DVD menu items No. directly while in DVD video mode. • Press and hold the button to input the channel No. derectly (in Sirius Satellite channel mode). •...

  • Page 10: Optional Wired Remote Control Unit Operations

    Optional Wired Remote Control Unit Operations Following operations are enabled by remote control with the separately sold Wired Remote Control Unit CMRC5 (shown below), CMRC6 or CMRC7. Note: • If the remote control is connected with this unit while the power on, please restart this unit again to confirm the normal display.

  • Page 11: Wireless Remote Control Unit Operations

    Optional Wired Remote Control Unit Operations • Press and hold the button, it will start from the first track of the current folder (in MP3/WMA/ AAC/DivX and USB modes). • Press the button, it will start from the first track of the disc (in CD changer mode).

  • Page 12: Functions Of Remote Control Unit Buttons

    Wireless Remote Control Unit Operations Inserting the Battery 1. Slide the rear cover in the direction of the arrow, and remove it. 2. Insert the CR2025 battery bundled with the remote control unit in the directions shown in the figure, then close the rear cover. Note: Using battery improperly can cause it to explode.

  • Page 13: Basic Operations

    4. BASIC OPERATIONS Note: • Be sure to read this chapter referring to the chapter “3. CONTROLS” (page 5). Turning On and Off the Power CAUTION Lower the volume level before powering the source unit off. The source unit stores the last volume setting.

  • Page 14: Setting/Ejecting A Disc

    Setting/Ejecting a Disc Notes on handling discs Handling • New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc.

  • Page 15: Connecting/Disconnecting An Usb Media Device

    • This system will not operate or may operate improperly with unsupported versions. • For detailed information on the playable iPod models, see our home page: www.clarion.com • For the other limitations, see “iPod Operations” (page 30). About the USB memory...

  • Page 16: Visual Output Function

    Connecting/Disconnecting an USB Media Device After connecting an USB device The system will automatically be switched to the relevant source media mode according to the USB device connected, and start playback. When an iPod is connected: The system is switched to the iPod mode. See “iPod Operations”...

  • Page 17: Source Operations

    5. SOURCE OPERATIONS Radio Operations Changing the reception area This unit is initially set to USA frequency intervals of 10 kHz for AM and 200 kHz for FM. When using it outside the USA, the frequency reception range should be switched to the intervals below. U.S.

  • Page 18: Sirius Satellite Radio Operations

    Radio Operations Auto store The auto store function stores up to 6 stations automatically tuned in sequential order. If 6 stations cannot be found, any previously stored station remains in its memory position. 1. Press the [AM/FM] button and select the desired band (FM/AM).

  • Page 19: Recalling A Preset Station

    SIRIUS Satellite Radio Operations Recalling a preset station A total of 18 satellite radio stations can be stored. 6-SR1, 6-SR2 and 6-SR3 This allows you to store your favorite satellite radio stations in memory for later recall. 1. Press the [SAT] button to select the desired band.
  • Page 20 SIRIUS Satellite Radio Operations Note: If you forget the password, you can do the following operations: * Input the old and new password with “4356”, and it will return to the factory default setting “0000”. * Input the old password with “4356”, and then operate step 5-6.

  • Page 21: Dvd Video Operations

    DVD Video Operations Selecting the DVD Video mode 1. Set a DVD video disc to the DVD player. The system will automatically read the disc data, change to the DVD mode (DVD Video mode), and start playback after a while. See also “Setting/Ejecting a Disc”...
  • Page 22 DVD Video Operations ● Setting up the angle mark display You can set up so that the angle mark appears on scenes where the angles can be switched. • The factory default setting is “Off”. 3-1. Select “Angle”. 4-1. Press the [ENTER] button to select “On” or “Off”...
  • Page 23 DVD Video Operations Country IRAQ IRELAND ISRAEL ITALY JAPAN JORDAN KUWAIT LEBANON LESOTHO LIECHTENSTEIN LUXEMBOURG MACEDONIA, THE FORMER YUGOSLAV REPUBLIC OF MALTA MONACO NETHERLANDS (NETHERLANDS ANTILLES) NORWAY OMAN POLAND ST. PIERRE AND MIQUELON PUERTO RICO PORTUGAL QATAR ROMANIA SAN MARINO SAUDI ARABIA SLOVAKIA (Slovak Republic)

  • Page 24: Watching A Dvd Video

    DVD Video Operations LEVEL4 PG-13 (PARENTS STRONGLY CAUTIONED) LEVEL3 (PARENTAL GUIDANCE SUGGESTED) LEVEL1 (GENERAL AUDIENCES) • The contents that the parental level restricts vary with the country code. ● Setting up the video system (NTSC/PAL) • The factory default setting is “NTSC”. Note: •...

  • Page 25: Repeat Playback

    DVD Video Operations • Slow playback cannot be performed in the backward direction. In addition, audio cannot be reproduced during slow playback. Fast forward and fast backward 1. Keep pressing the [X] or [V] button during playback. The playback speed becomes 4-times faster at first and then 16-times faster 3 seconds later.

  • Page 26: Switching Subtitles

    DVD Video Operations • Depending on the disc, up to 8 audios may be recorded. For details, see the mark of the disc ( : Indicates that 8 audios have been recorded). • Depending on the disc, switching may be completely impossible or impossible on some scenes.

  • Page 27: Cd/Mp3/Wma/Aac Operations

    CD/MP3/WMA/AAC Operations This system can playback MP3/WMA/AAC files recorded on a disc. About the MP3/WMA/AAC files What is MP3/WMA/AAC? MP3, WMA, and AAC are the audio file formats which have penetrated into PC users and become a standard format. MP3 is an audio compression method and classified into audio layer 3 of MPEG standards.
  • Page 28 CD/MP3/WMA/AAC Operations Precautions when preparing a disc Note: • For details of the DivX file mentioned below, see “DivX Operations” (page 27). ●Logical format (File system) The following writing formats are available when writing MP3/WMA/AAC/DivX files on a disc: • For CD-R/RW: ISO9660 level 1/level 2, Romeo, Joliet, or Apple ISO (without including expansion format) •...

  • Page 29: Pausing Playback

    CD/MP3/WMA/AAC Operations Pausing playback 1. Press and hold the [ ] button during playback. Playback pauses. 2. To resume playback, Press and hold the [ button. Playback resumes. Skipping a track (searching) 1. Press the [X] or [V] button during playback. Tracks are skipped, as many as the times the button is pressed, and playback starts.

  • Page 30: Divx Operations

    DivX Operations This system can playback DivX movie files recorded on a disc. ® • Official DivX Certified product ® • Plays all versions of DivX video (including DivX About the DivX file What is DivX? DivX is a popular media technology created by DivX, Inc.
  • Page 31 DivX Operations Operating DivX playback Note: • The following operations in the DivX mode are same as those in the MP3/WMA/AAC modes. See also “Operating CD/MP3/WMA/AAC playback” (page 25). * Pausing playback * Skiping a track * Fast-forward and fast-backward * Skiping the current folder * Selecting a folder/track from the list screen * Top function...

  • Page 32: Source Operations (Accessories)

    This unit can control the following satellite radio receivers: • XM Satellite Interface Adapter (Mini-Tuner Included) : CNP2000UC Clarion cable for CNP2000UC : CNPCLA1 Note: • XM and the XM logos are trademarks of XM Satellite Radio Inc. Selecting a Satellite Radio mode 1.

  • Page 33: Ipod Operations

    Note: • This system will not operate or may operate improperly with unsupported versions. • For detailed information on the playable iPod models, see our home page: www.clarion.com Notes on using Apple iPod • Do not connect an iPod to this unit with a headphone connected to the iPod.

  • Page 34: Controlling The Ipod

    • Some iPod models do not support this function. Consult your nearest Clarion dealer or website to confirm which models do not support this function. Setting iPod Output Format The iPod output format can be changed.

  • Page 35: Ipod Menu Operation

    iPod Operations Setting iPod sense The input audio level of the iPod terminals can be Changed while the iPod output format is set to “Analog”. * The factory default setting is “Mid”. 1. Press the [OPTION] button. 2. Turn the [UP/DOWN] knob to select “iPod Sense”.

  • Page 36: Usb Memory Operations

    iPod Operations Searching subfolders or tracks/ Videos from a list screen 1. Select the desired Category from the iPod Menu screen to display the corresponding list screen. 2. Press the [ENTER] button to enter the subfolder. USB Memory Operations This system can play audio files (MP3/WMA/AAC) stored in an USB memory which is recognized as “USB Mass Storage Class device”.

  • Page 37: Aux Operations

    USB Memory Operations * Pausing playback * Skiping a track * Fast-forward and fast-backward * Skiping the current folder * Selecting a folder/track from the list screen * Track Repeat * Folder Repeat * 1 Folder Random * All Track Random Note: •...

  • Page 38: Disc Repeat Play

    CD Changer Operations ●Track-down 1. Press the [X] button to move back to the beginning of the current track. 2. Press the [X] button twice to move to the beginning of the previous track. Fast-forward/fast-backward ●Fast-forward Press and hold the [V] button for 1 second or longer.

  • Page 39: System Settings

    7. SYSTEM SETTINGS Audio Settings You can adjust a audio effect or tone quality to your preference. To change audio setting 1. Press the [AUDIO] button to switch to the audio adjustment selection display. 2. Then turn the [UP/DOWN] knob to select the audio adjustment mode.

  • Page 40: General Settings

    Audio Settings 2-2. Press the [ENTER] button. 3-1. Turn the [UP/DOWN] knob to select “On” or “Off”. 3-2. Press the [ENTER] button. 3-3. When you set “On”, turn the [UP/DOWN] knob to select as following order LOW ↔ MID ↔ HIGH 3-4.
  • Page 41 General Settings 2-1. Select “Screen Size”. 3-1. Press the [ENTER] button. 3-2. Press the [X] or [V] button to select “F.WIDE”, “WIDE”, “CINEMA” or “NORMAL” [F.WIDE]: The image is expanded so that the rectangle of the image fits to the screen (16:9).
  • Page 42 General Settings ● Performing memory initialize This function allows you to initialize adjusted settings in the ROM. The stored settings like preset channels, password, adjusted areas, adjust mode settings and audio mode settings can be formatted by this function. Note: •...

  • Page 43: Troubleshooting

    8. TROUBLESHOOTING If you have a problem with this system, check the following items to resolve it. See also our homepage (www.clarion.com) for additional information. General Problem Power does not turn Fuse is blown. on (No sound is produced.). Incorrect wiring.

  • Page 44: Usb Devices

    DVD Player Problem Disc cannot be Another disc is already loaded. loaded. There is a foreign matter already in place. Sound skips or is Disc is dirty. noisy. Disc is heavily scratched or warped. MP3/WMA/AAC files are not encoded properly. Sound is bad directly Water droplets may form after power is turned...

  • Page 45: Error Displays

    9. ERROR DISPLAYS If an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem. DVD Player Display Error 2 A disc is caught inside the DVD player and is not ejected. Error 3 A disc cannot be played due to scratches, etc.
  • Page 46 Display Bus Error Over-current or data error is detected. Device Error The device is connected via the USB Hub. WMA files protected by DRM are played. Not Support Files not supported by this unit are played. If an error display other than the ones described above appears, press the Reset button. If the problem persists, turn off the power and consult your store of purchase.

  • Page 47: Specifications

    10.SPECIFICATIONS FM Tuner Frequency Range: USA: 87.9 MHz to 107.9 MHz Europe: 87.5 MHz to 108.0 MHz Other: 87.0 MHz to 108.0 MHz Usable Sensitivity: 9 dBf 50dB Quieting Sensitivity: 15 dBf Alternate Channel Selectivity: 70 dB Stereo Separation (1 kHz): 18 dB Frequency Response (±3 dB): 100 Hz to 9 kHz AM Tuner Frequency Range:...
  • Page 48 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 2009/3 Clarion Co., Ltd. All Rights Reserved.Copyright © 2009: Clarion Co., Ltd. Printed in Philippines / Imprimé aux Philippines / Impreso en Filipinas / Stampato nelle Filippine PE3161B...
