Danish Interpretation Systems DCS 6000 User Manual
Digital conference system central unit with firmware 5.3.xx or later
Hide thumbs
Also See for DCS 6000:
- User manual (66 pages) ,
- User manual (45 pages) ,
- User manual (19 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Danish Interpretation Systems DCS 6000
Summary of Contents for Danish Interpretation Systems DCS 6000
-
Page 1: User Manual

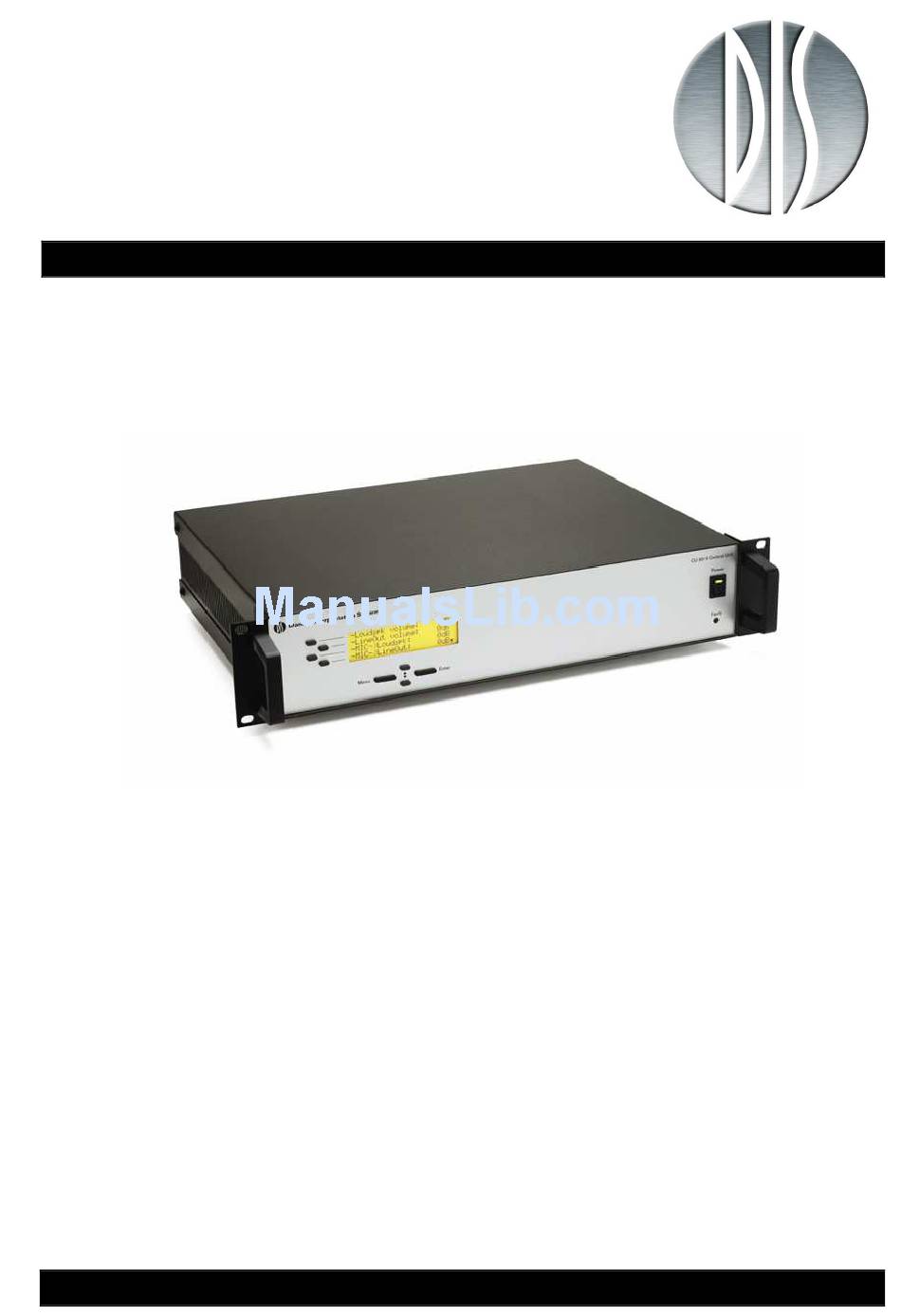

DCS 6000 User Manual Digital Conference System CU 6010 Central Unit with firmware 5.3.xx or later Central Unit for series DCS 6000 Voting Units, Microphone Units, Interpreter Units, Ambient Noise Microphone, Channels Selectors and Audio Output Units Danish Interpretation Systems... - Page 2 Danish Interpretation Systems User Manual Copyright © 2006 DIS CU6010 REV U.DOC 04-05-2006 No part of this publication may be reproduced or utilised in any form or by any means without permission in writing from the publisher.
-
Page 3: Table Of Contents
Cleaning & Repacking........4 IS 6132P Interpreter Units ......22 Warranty ............4 IS 6132P w/JB 6004 and LS 6032 ....23 Description of the DCS 6000 system ....5 CS 6032F Channel Selector w/back light on .23 Features.............. 5 Typical schematics...........24 System components........... -
Page 4: Important
(100-240V Warranty AC). If a voltage conversion is required, consult your DIS dealer or qualified personnel. The unit is minimum covered by 12 months Should any liquid or solid object fall into the... -
Page 5: Description Of The Dcs 6000 System
Features external operation of the system of a PC or control system such as AMX or Crestron The DCS 6000 system has the following main features: The SW 6000 is an optional software package, which expands the functionality of the DCS 6000 Fully digital system. -
Page 6: System Components
Conference equipment and channel System components selectors The CU 6010 Central Unit supports all available CS 6032FV/H Channel Selector (flush mounted) units in the DCS 6000 series: CM/DM 6010P Conference Unit (portable) CM/DM 6020P Conference Unit (portable) with Central equipment etc. -
Page 7: Operating Instructions
Mains supply. General description Designed in a standard 2HE 19” cabinet. The CU 6010 Central Unit for the DCS 6000 is the Functionality on the CU 6010 depends on the heart of the system. One CU 6010 is needed in each Feature License uploaded into the unit. -
Page 8: User Controls, Indications & Connectors
Danish Interpretation Systems User Manual User Controls, indications & connectors Front plate layout The front plate layout of the CU 6010 Central Unit consists of a large illuminated LCD display and 8 buttons for setting up/controlling the system: Details of display -Audio Control -Delegate setup -Interpreter setup... - Page 9 Danish Interpretation Systems User Manual ‘-‘ The dash symbol (‘-‘) preceding a line of text Buttons identifies a submenu or a changeable parameter. The buttons below and to the left of the display are The submenu or parameter can be selected by used when stepping through the different menus pressing the corresponding select button.
-
Page 10: System Settings
Danish Interpretation Systems User Manual Back Panel Layout Back Panel Connectors Interpreter sets for those languages have to be connected to Chain B1 or B2. Mains Power connector Chain B1 & B2 Connection for mains power. See specs. RJ45 connector, 2 pieces Analog Audio Line input DCS-LAN connectors for connection to DM/CM XLR Input connector. - Page 11 Danish Interpretation Systems User Manual A selection is made in the Main menu by scrolling The Audio Control menu comprises the following through the menu items with the Up/Down buttons, complete list of adjustment items: and pressing the Select button associated with the Loudspk volume desired menu item.
- Page 12 Danish Interpretation Systems User Manual Delegate setup Values: {Auto, Manual, FIFO, VOX}: “Delegate setup” menu comprises Auto (or Automatic) mode allows for the following entries: microphone units to be switched on immediately upon pressing the microphone Max Speakers ON/OFF button. Max.
- Page 13 Danish Interpretation Systems User Manual More delegates will be put in the request but 3 flashes in the green LED will indicate, that the queue when they press their ON/OFF maximum number has been reached. buttons, until the maximum of requests is It is similar for Chairman units if the number of reached.
- Page 14 Danish Interpretation Systems User Manual This setting is used to set the time from the delegate When set to 0 value no interpretation channels are stops talking until the microphone turns off. The present in the system. Only ‘Floor’ sound will be default value is 4 sec.
- Page 15 Danish Interpretation Systems User Manual With this setting an interpreter cannot switch on his headphones. The ambient noise indicates to the microphone to any occupied interpreter channel. listeners, that there is no speaking activity going on, and this information is very nice to have, when This is the default setting.
- Page 16 Danish Interpretation Systems User Manual Menu button or Enter button leaves this screen. The RS232 terminal interface emulator, Tera Term, does not feature the possibility of guarding the Display Unit types ASCII communication by CRC check. Selecting the Display Unit types in the Units info Values: {Default, Protected} menu displays the number of present units.
-
Page 17: Normal Operation
Danish Interpretation Systems User Manual PPC: 5.1.1 If the user accepts the save the progress display is DSP: 1.0.43 shown: Serial No: 111.111.111 Saving... The user returns to the main menu by pressing either the Menu button or the Enter button. The display is shown for a few seconds before the Normal Operation CU returns to the “Main menu”. - Page 18 Danish Interpretation Systems User Manual Schematics volume/gain settings 3. Turn then the InputIn level down –8 dB to –12dB from the clipping level. Depending The volume controls, which can be set on the CU of the source connected, there might be 6010 user interface as described in the previous different “overhead”...
-
Page 19: System Setup
(Max. Number of units to be connected) The operation of the DCS 6000 units is found in the User Manual for the specific units. The max. number of languages configured on chain A (A1 or A2) or B (B1 or B2) is Please observe the following guidelines: 16. -
Page 20: Max. Number Of Units To Be Connected
Danish Interpretation Systems User Manual Max. number of units to be connected The following tables show the maximum number of Unit or on each output on an EX 6010 Extension units, which can be connected to each of the four Unit or on the output of a PS 6000. -
Page 21: Cm/Dm 6060F/6510F Chairman/Delegate Units
Danish Interpretation Systems User Manual CM/DM 6060F/6510F Chairman/Delegate Units The following tables show the maximum number of Unit or on each output on an EX 6010 Extension units, which can be connected to each of the four Unit or on the output of a PS 6000. outputs on a CU 6000 Central (A1, A2, B1 or B2) -
Page 22: Mu 6040 C/D Without Connected Loudspeaker
Danish Interpretation Systems User Manual MU 6040 C/D without connected loudspeaker This table shows the maximum number of MU loudspeaker connected each unit). 6040 Microphone Units, which can be connected. loudspeakers are used, then use the figures for The numbers are with no audio in loudspeaker (no CM/DM 60x0 above. -
Page 23: Is 6132P W/Jb 6004 And Ls 6032
Danish Interpretation Systems User Manual IS 6132P w/JB 6004 and LS 6032 Length of Feeding Cable, Length of cable Number of Number of Number of Type CAT5 AWG24 between booths booths IS 6132/ booths LS 6032/ booths 10 m 10 m 30 m 30 m 50 m... -
Page 24: Typical Schematics
Danish Interpretation Systems User Manual Typical schematics The following schematics are showing various configurations: Small conference microphone system Manual 01 18 04438... -
Page 25: Large Size Conference Microphone System
Danish Interpretation Systems User Manual Large size conference microphone system Manual 01 18 04438... -
Page 26: Microphone Conference System With Interpretation
Danish Interpretation Systems User Manual Microphone conference system with interpretation Manual 01 18 04438... -
Page 27: Microphone Conference System With Interpretation & Ir
Danish Interpretation Systems User Manual Microphone conference system with interpretation & IR Manual 01 18 04438... -
Page 28: Various Configurations With Rp 6004 Repeater And Ps 6000 Power Supply
Danish Interpretation Systems User Manual Various configurations with RP 6004 Repeater and PS 6000 Power Supply Manual 01 18 04438... -
Page 29: Small System With Sw 6000 User Interfaces
Danish Interpretation Systems User Manual Small system with SW 6000 User Interfaces Manual 01 18 04438... -
Page 30: Large System With Sw 6000 User Interfaces
Danish Interpretation Systems User Manual Large system with SW 6000 User Interfaces Manual 01 18 04438... -
Page 31: Appendix
CAT6 can thus only be used for longer cable draws Cabling terminating in wall outlets or patch panels. CAT5 RS 232 Serial connection The DCS 6000 system uses CAT5, CAT5e or Pin RS232 on CU 6010 RS232 on PC CAT6 FTP or STP cables with screened RJ45 connectors. -
Page 32: Accessories (Not Supplied)
EC 6000-02 Connection Cable 2 m......10 03 13201 Signal Cable type EC 6000-05 Connection Cable 5 m......10 03 13501 Ground DIS type #2914 EC 6000-10 Connection Cable 10 m.......10 03 14102 In phase signal or 2 x 0,25 mm EC 6000-20 Connection Cable 20 m.......10 03 14202 shielded. -
Page 33: Technical Specifications
Dimensions (W x H x D)..425 (483) x 87 x 317 (357) mm Max. number of units (excl. CS).........4000 dimensions in bracket are including 19” brackets The DCS 6000 system conforms to all relevant standards - Accessories supplied ..........User manual e.g. IEC 914, ISO 4043, and ISO 2603 .................Mains cable... - Page 34 Danish Interpretation Systems User Manual Manual 01 18 04438...
