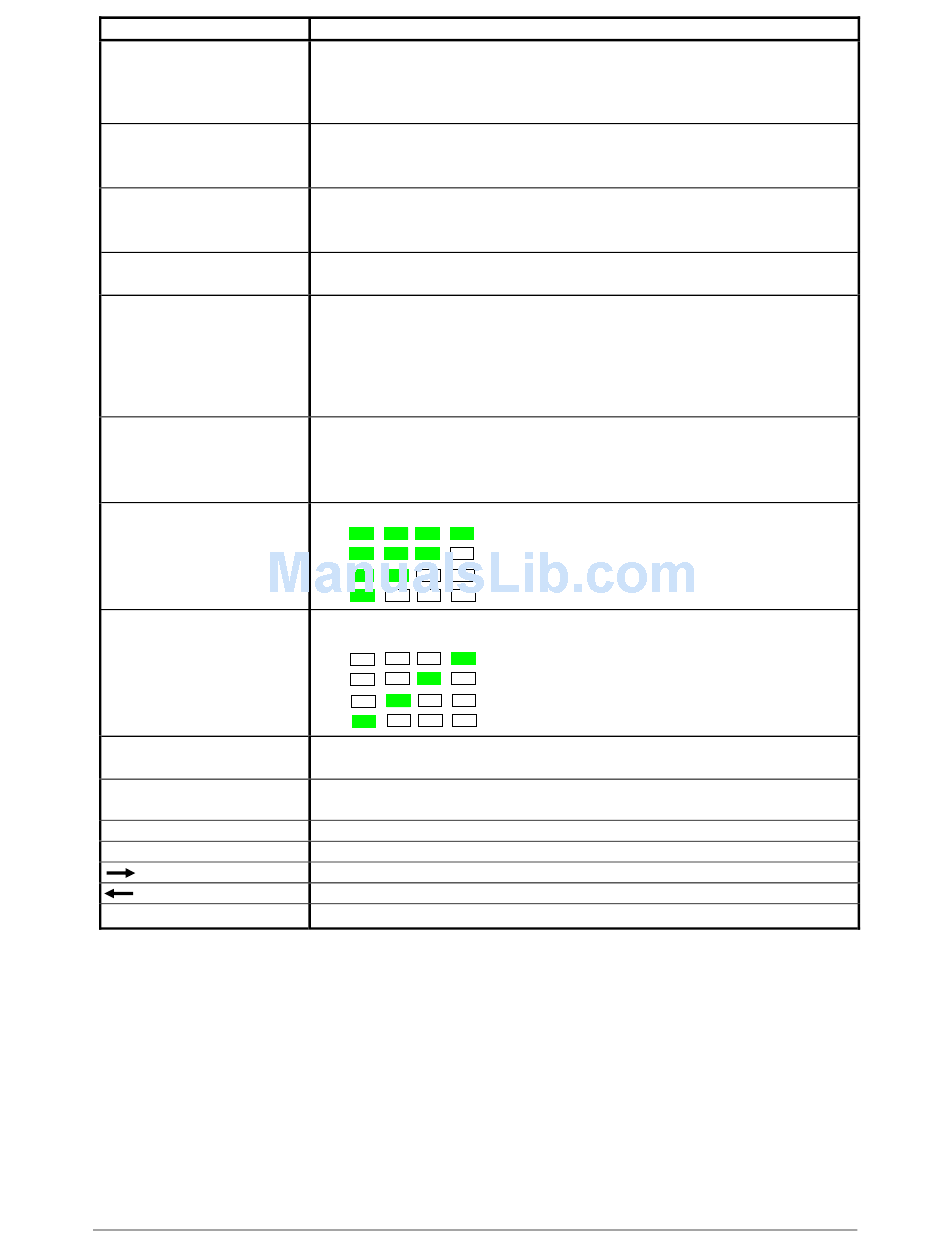

Name of part
Toner Low Indicator
Roll Empty Indicator
Paper Mis-feed Indicator
Job Indicator
Ready Indicator
Display
Toner Remaining
Indicator
Image Density Indicator
Density Selection Key
Test Print Switch
Enter Key
* (Asterisk) Key
(Right Arrow) Key
(Left Arrow) Key
Menu Key
Note: In case a Cut Sheet Paper is inserted manually, size and media are not indicated on this
Operation Panel.
Function
Toner Low Indicator lights red when there is not enough toner in the
Developer Unit.
In case dark image is continuously printed, printing may be held
temporarily and this indicator flashes red.
Roll Empty Indicator lights red when the roll media in the selected
Roll Deck is empty.
It may also light when the roll media is not correctly installed.
Paper Mis-feed Indicator lights red when the printer or accessory
fails to feed the media.
A mis-feed code is indicated on the Display if this occurs.
Job Indicator lights green when the printer receives a print job from
the scanner or controller.
Ready Indicator lights orange when the printer is warming up or
printing is prohibited.
It lights green when the printer is standby or during printing.
In case printing is continuously taken, and the temperature of the
fuser goes down to a certain level, printing may be held temporarily
and this indicator flashes green.
The Display normally shows green which Roll Deck is selected and
the width of the roll media in said Roll Deck.
It also indicates an error code if the printer has an error such as
"paper mis-feed" or "door open".
Toner Remaining Volume is indicated green with every 1/4 step.
: Toner remains more than 3/4.
: Toner remains more than 2/4.
: Toner remains more than 1/4.
: Toner remains less than 1/4.
Image Density is indicated green with every 1/4 step.
(Strobe time is adjusted.)
: Darker
: Normal
: Lighter
: Lightest
You may change the density level by pressing the Density Selection
Key.
A test pattern will be printed out if you press the Test Print Switch.
(Service purpose only.)
Selected job is defined. (User Mode)
Function selection ( User Mode )
Mode selection (Increment) ( User Mode )
Mode selection (Decrement) ( User Mode )
Menu selection ( User Mode )
