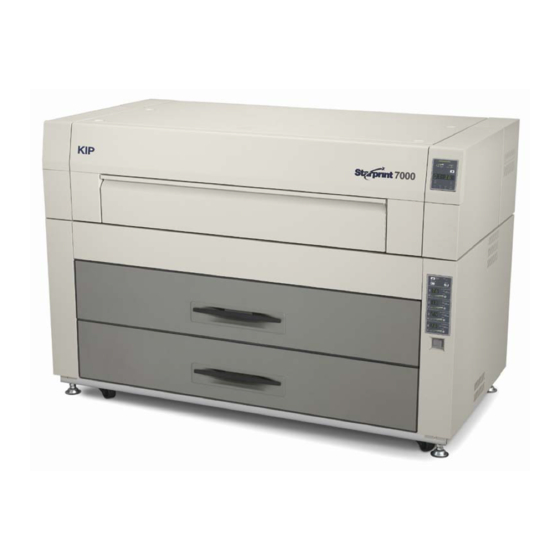

KIP 7000
Parts Manual
K-103
Ver 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIP 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for KIP KIP 7000

Summary of Contents for KIP KIP 7000

  • Page 1 KIP 7000 Parts Manual K-103 Ver 1.4...
  • Page 2 Ver. 1.1 Oct. 2004 Assembly Location 1...
  • Page 3 Item Part Number Z034490020 Fuser Assy Z034890010 Feeder Assy Z035190020 Tr Corona Assy Z034090010 Cutter Unit 9601390020 Deck 1 Description Type...
  • Page 4 Ver. 1.1 Oct. 2004 Assembly Location 2...
  • Page 5 Item Part Number Z036990010 LED Head Assy Z035190010 Image Corona Assy SUP7000-101 Photoconductive Drum 9604680010 Hopper Assy Z034690010 Developer Assy Description Z031700010 Type...
  • Page 6 Ver. 1.3 Jan. 2005 Upper Frame Assy 1...
  • Page 7 Item Part Number 9603100180 Holder,Cover Z033100250 Movable Frame Z033120040 Movable Plate L Assy Z033120030 Movable Plate R Assy 9000470120 Sirocco Fan 9603100170 Duct 9603100780 Duct 2 Z033100930 Sub Duct 20 Z033100840 Movable Plate 9000790014 Oilless Metal Z033120110 Shaft Plate Assy Z033100560 Fixing Plate Z033100740...
  • Page 8 Ver. 1.1 Oct. 2004 16 48 Upper Frame Assy 2...
  • Page 9 Item Part Number Z033100650 Cover Fixing Bracekt 2 R Z033100660 Reinforcement Bracket L Z033100640 Cover Fixing Bracekt 2 L Z033100710 Cover Plate 9603100480 Collar 1 Z033100550 Deve Pressure Shaft 9000750020 Parallel Pin 9000790016 Oilless Metal 6601100100 9603100600 Actuator 9000100811 Photointerrupter Z033100200 Sensor Bracket Z033100350...
  • Page 10 Item Part Number 9000450334 Edge Saddle 9000450375 Snap Band 3103500680 Counter Roller Holder 2010190070 Counter Roller Spring 2 1710430310 Counter Roller Spring 6817114060 Parallel Pin 3103500590 Counter Roller 6807033308 Retaining Ring-E 6807033310 Retaining Ring-E 6807033311 Retaining Ring-E 6908201099 Bind.Head Screw 6908203076 Bind.Head Screw 6914202099...
  • Page 11 Ver. 1.1 Oct. 2004 Upper Frame Assy 3...
  • Page 12 Item Part Number Z035700250 51T Gear 9000800163 Parallel Key 6951421517 Set Screw,W.Point 9605700110 24T Gear 9000780002 Ball Bearing 9605700341 27/32T Gear Assy Z033120060 Idler Arm Assy Z033100510 Idler Shaft 9603100480 Collar 1 9603100490 Collar 2 Z033100770 Spring,Idler Arm Z033100290 Shaft Plate 1 Z033120130 Collar S2 Assy 9000780029...
  • Page 13 Item Part Number 9000780083 Ball Bearing Z031100740 Shaft L1 Z033100100 Drive Side Plate 9000420037 Locking Card Spacer 6601600160 Belt Timing 9605700120 161T Pulley Z033100410 Drive Shaft Z033100070 Earth Holder Z033100080 Earth Cover Z033100940 Flange A Z033100280 Shaft Plate 1 Z033120120 Collar S1 Assy 6951421507 Set Screw,W.Point...
  • Page 14 Ver. 1.2 Jan. 2005 25 44 Upper Frame Assy 4...
  • Page 15 Item Part Number 9000470131 Cross Flow Fan Assy ---- Z033100320 Paper Guide Plate U1 Z033100330 Reinforcement Plate Z033100190 Sensor Bracket 9000100667 Photointerrupter Z033100060 Counter Roller Stay 2 3103500680 Counter Roller Holder 2010190070 Counter Roller Spring 2 1710151310 Counter Roller SP(600) 1710311560 Counter Roller Spring 4503520140...
  • Page 16 Item Part Number Z033100360 Bracket,Rail(L1) Z033100370 Bracket,Rail(L2) Z033120140 HV Socket Assy Z033120160 Grid Socket Assy Z033120150 Cleaning Socket Assy 9000450375 Snap Band Z033100970 Cover Film 6807033308 Retaining Ring-E 6807033311 Retaining Ring-E 6908201099 Bind.Head Screw 6908203076 Bind.Head Screw 9000730080 Bind.Head Screw 9000730026 CRS.Hex.Head Bolt,W/SW FW Z033100750...
  • Page 17 Ver. 1.1 Oct. 2004 Lower Frame Assy 1...
  • Page 18 Item Part Number Z031100340 Arm L Z031100350 Arm L Cover 9000450460 Locking Wire Saddle 9000450462 Locking Wire Saddle 9603100480 Collar 1 Z031100360 Arm R 9000450464 Locking Wire Saddle Z031100480 Arm R Z031100460 Arm Collar Z031100050 Lock Guide 9000310068 Micro Switch Z031100890 Hook R 9000780029...
  • Page 19 Item Part Number Z031620030 Tension Bracket Assy Z035700120 26/55 Gear Z031100470 Arm L Z031100730 Bracket Z031100740 Shaft L1 Z031100880 Hook L Z031600040 Bracket,Drive(4) 6807033310 Retaining Ring-E 6807033308 Retaining Ring-E 6807033306 Retaining Ring-E 6908201099 Bind.Head Screw 6908201102 Bind.Head Screw 6908201100 Bind.Head Screw 6908203080 Bind.Head Screw 6908201076...
  • Page 20 Ver. 1.2 Jan. 2005 Lower Frame Assy 2...
  • Page 21 Item Part Number Z031101260 Cover 3 Z031101250 Cover 2 ---- Z031101090 Partition Plate Z031101240 Cover 1 Z031101140 Louver L Z031101150 Louver R Z031101270 Cover 4 Z031101280 Cover 5 Z031101310 Duct Z031101040 Duct Sponge Z031100580 Center Duct Z031100180 Fan Bracket 9000470075 Sirocco Fan Z036400370 Fan Lead...
  • Page 22 Item Part Number 6914202099 Bind.Head Screw,W/OTW Z031100660 Harness Cover A Z031100670 Harness Cover B Description M4×6,Fe+Ni Type...
  • Page 23 Ver. 1.1 Oct. 2004 Lower Frame Assy 3...
  • Page 24 Item Part Number Z031100400 Plate Paper Transport Z031100420 Bracket L Z031100430 Bracket R Z031100440 Roller Shaft Z031100410 Bracket,Bearing 9000780029 Ball Bearing 3001020310 Roller,Feeder 6817114032 Parallel Pin 9601100710 Shaft,Hold Z031101230 Support Bracket Z034400070 Fixing Pin 9601100840 Shaft 9000780006 Ball Bearing Z031101540 Feed Roller Z031100280 Guide Plate,Entrance(L)
  • Page 25 Item Part Number Z031620010 Motor Bracket Assy 6951421509 Set Screw, W.Point Z035700140 60T Gear Z035700100 30/60 Gear 4201600050 30T Gear Z031600190 Holding Plate(1) 9000450290 Edge Saddle Z031600020 Bracket,Drive(2) 9000450460 Locking Wire Saddle 3506700010 Electromagnetic Clutch Z031600170 Shaft(15) 6817114054 Parallel Pin 3101300760 30T Gear Z031600160...
  • Page 26 Item Part Number 6951421507 Set Screw,W.Point Z031600320 Gromet Z031600330 Collar Description M4×4,Fe+BK Type...
  • Page 27 Ver. 1.2 Jan. 2005 Lower Frame Assy 4...
  • Page 28 Item Part Number Z031100900 Slide Rail Z031101290 Rail Bracket L Z031101300 Rail Bracket R Z031100520 Bracket,Accuride Slide(L) Z031100530 Bracket,Accuride Slide(R) Z031100540 Base Support Plate(L) Z031100550 Base Support Plate(R) 9601100840 Shaft 9000780006 Ball Bearing Z031101340 Bracket Cover S ＊ Z031100980 Fan Base Z031100990 Duct 1 Z031101000...
  • Page 29 Item Part Number 6915203077 Pan Head Screw, W/SW FW 9000730127 Hex.Head Screw 6908201100 Bind.Head Screw Description M3×8,Fe+ZC M5×8,Fe+Z M4×8,Fe+Z Type...
  • Page 30 Ver. 1.3 Jan. 2005 Lower Frame Assy 5...
  • Page 31 Item Part Number Z031101430 I/F Connector Plate Z031101200 Connector Plate 6601301190 Plate Connector ＊ 9000470112 Electromagnetic Counter Z031101080 Guard Bracket R Z031120040 Fuser Set Plate Assy 9000360042 Circuit Protector 9000450150 Cord Lock Z031101600 Code Plate 9000450151 Cord Lock Nut 9000450378 Bushing 9000450336 Bushing...
  • Page 32 Item Part Number Z031101410 PCB Bracket Z031100630 Fixing Pin Description Type...
  • Page 33 Ver. 1.3 Jan. 2005 Lower Frame Assy 6...
  • Page 34 Item Part Number Z031101420 Controller Bracket 9000450336 Bushing 9601101900 DC Power Supply Bracket 9601101890 PCB Bracket 9601101120 Switch Case 9000310112 Switch 6601300140 Spring Connector 9601101060 Collar(AC) 9601101070 Collar(DC) 6806012291 Outer Toothed Lock Washer 6908206099 Bind.Head Screw 6915203082 Pan Head Screw, W/SW FW 9600400260 Cover Bracket 9000310068...
  • Page 35 Ver. 1.1 Oct. 2004 Process Frame Assy...
  • Page 36 Item Part Number Z031700250 Handle,Rear Z031700140 Lamp Fixing Bracket 6807033310 Retaining Ring-E Z031700130 Stay,Rear 9601700180 Roller,Cleaning Z031700170 Bracket L Z031700180 Bracket R Z031700270 Stay,Front Z031720010 Pressure Plate Assy Z031700090 Spring,Earth 9601700240 Spring,Earth Z031700080 Electrode Holder 6803015229 Flat Washer 6804015249 Spring Washer 6605100330 Screw 6605100340...
  • Page 37 Item Part Number Z031700060 Corona Holder L Z031720020 Movable Plate Assy Z031700290 Roller Z031700350 Z034600160 Shaft Z031700280 Bracket Z031700210 Spring B Z036400420 Eraser Trnsit Lead 9000820013 Thrust Washer Z031700330 Bushing Z031700200 Spring A 6908201099 Bind.Head Screw 6908201100 Bind.Head Screw 6908201077 Bind.Head Screw 6908201167 Bind.Head Screw...
  • Page 38 Ver. 1.1 Oct. 2004 Image Corona Assy 15 16...
  • Page 39 Item Part Number Z035100020 Corona House B Z035100010 Corona House A Z035100110 Grid Plate Z035100140 Wire Hook R 6605100260 Screw Shaft SUP3820-104 Corona Wire Z035100070 Cover Head R Z035100080 Cover Head L Z035100090 Corona Head R Z035100040 Wire Hook 6605100250 Spring Wire 6605100280 Spring Wire...
  • Page 40 Item Part Number Description Type 9000730153 Bind.Head Screw M3×3,Fe+Z...
  • Page 41 Ver. 1.1 Oct. 2004 Tr Corona Assy...
  • Page 42 Item Part Number Z035100280 Tr Corona House SUP3820-106 Corona Wire 9605100150 Corona Guard A 9605100160 Corona Guard B 6605100110 Tr Cover Head 9605100020 Tr Corona Head RH 9605100010 Tr Corona Head LH 4205800080 Wire Spring 4205100220 Height Adjuster 3505100160 Height Adjuster 9000730107 Slotted Set Screw 6605100210...
  • Page 43 Ver. 1.2 Jan. 2005 Developer Assy 1...
  • Page 44 Item Part Number Z034600190 Stay,Upper 6601701110 Seal(5) Z034600450 Blade Holder Z034600240 Bracket BL Z034600220 Bracket AL Z034600230 Bracket BR Z034600210 Bracket AR Z034600170 Blade Roller Z038090030 Developer Roller Kit Z038090020 Toner Supply Roller Kit See #9 Side Seal L Assy See #9 Side Seal R Assy ----...
  • Page 45 Item Part Number 9000780028 Ball Bearing Z035700370 22T Gear 9605700280 16T Gear 4205700010 Spur Gear 16T Z035700290 30T Helical Gear L Z034600460 Holder 9000780135 Ball Bearing 9000820015 Thrust Washer Z034600540 Spring D 6601700460 Guide Pin 9605700240 15/30T Gear Z035700320 34T Helical Gear R Z035700310 17/42T Helical Gear R Z035700390...
  • Page 46 Ver. 1.2 Jan. 2005 17 33 Developer Assy 2...
  • Page 47 Item Part Number Z034600250 Agitating Shaft Z034600280 Agitating Sheet Z034600080 Screw L Z034600060 Screw LH1 Z034600070 Screw LH2 Z034600260 Screw Shaft Z034600090 Screw L2P Z034600270 Sensor Wiper Z034600440 Separater 6601700340 Seal ---- Z034600290 Harness Cover(1) Z034600300 Harness Cover(2) 6601700120 Holder Sensor Z034600510 Cover Z034600490...
  • Page 48 Ver. 1.2 Jan. 2005 Hopper Unit Assy...
  • Page 49 Item Part Number 9601700040 Hook 9601700050 Lever B 9601700060 Hook 9601700070 Action Block 9601700080 Cover 9601700150 Joint R 9601700140 Hold,Plate A 9601700160 Bottle Plate R 9601700130 Bottle Plate L 9601700310 Plate 9601700320 Bracket,Motor 9601700120 Guide 9601700340 Guide Pin A 9601700350 Guide Pin B 9601700360 Shaft,Lever...
  • Page 50 Item Part Number 9000730132 Bind.Head Screw 9601700560 Seal 6915203105 Pan Head Screw,W/SW FW 6908201100 Bind.Head Screw Z034600610 Hopper Sponge Z034600600 Hopper Seal Description M4×4,Fe+Z M4×20,Fe+ZC M4×8,Fe+Z Type...
  • Page 51 Ver. 1.2 Jan. 2005 Feeder Assy...
  • Page 52 Item Part Number ---- ---- ---- Z034800050 Feeder Plate 1 Z034800060 Feeder Plate 2 Z034800070 Feeder Plate 3 Z034800080 Feeder Plate 4 ---- 9604800050 Bottom 1 9604800060 Bottom 2 9604800070 Bracket R 9604800120 Bracket R1 9604800090 Shaft,Roller ---- 9604800110 Bracket L 9604800080 Bracket L1 9604800250...
  • Page 53 Ver. 1.4 Apr. 2005 45 52 TR Registration Assy...
  • Page 54 Item Part Number Z031400220 Feeder Plate Z031460010 Resist Roller Assy Z031400370 Resist Roller Z031400380 Resist Roller Shaft Z031400230 Bracket L,Feeder Plate Z031400340 Collar 7207100460 Electromagnetic Clutch Z031460020 Brake Assy Z031400240 Bracket R,Feeder Plate Z031400200 Bracket,Magnet Brake Z031400310 Collar,Brake 9000370065 Electromagnetic Brake 9000450337 Bushing 9000780029...
  • Page 55 Item Part Number 3004500180 Spur Gear,45/20T Z031400290 Flange 9000780011 Ball Bearing Z035700040 Pulley/Spur Gear,P30/34T Z031400210 Spacing Plate Z031420030 Pulley Bracket Assy 3805700140 Pulley 9605700080 20T Pulley 6807033308 Retaining Ring-E 6807033310 Retaining Ring-E 6813032311 Retaining Ring-C,S 6951421507 Set Screw,W.Point 6908201099 Bind.Head Screw 6908203077 Bind.Head Screw 6914202099...
  • Page 56 Ver. 1.2 Jan. 2005 Drive Assy (Fuser)
  • Page 57 Item Part Number Z031680020 Drive Assy(Fuser)Assy 7106700020 DC Motor Z031620040 Drive Bracket 1 Assy Z031620050 Drive Bracket 2 Assy 9000780128 Ball Bearing Z031600220 Drive Shaft Z035700160 40T Gear Z035700190 25T Gear Z035700150 32T Gear 6807033310 Retaining Ring-E 6817114053 Parallel Pin 6941421507 Set Screw,Cup Point 6908201099...
  • Page 58 Ver. 1.2 Jan. 2005 Fuser Assy 1...
  • Page 59 Item Part Number 9604400670 Fusing Roller 2210440011 Pressure Roller 1710441640 Ball Bearing 1710441650 Isolate Bushing 1710441660 Spacer 6820117014 Wave Washer 3104400500 Collar 9604400520 Collar 6813032332 Retaining Ring-C,S 3504400210 Lamp GP 1 1410441010 Lamp Mount 6803015231 Flat Washer Z034400240 Solenoid Fitting Plate 9000450350 Edge Saddle Z034400190...
  • Page 60 Item Part Number 7704420071 Lever R 3504400170 Spring Hook 3 3504400690 Spring Hook 1 6801015106 Hex.Nut 3504400700 Spring Hook 2 7705803060 Extension Spring A Z034400020 Heating Plate 9000450456 Edge Saddle 7704420050 Z034400260 Cam Shaft ---- 6807033313 Retaining Ring-E 6807033306 Retaining Ring-E 6807033310 Retaining Ring-E 6908203099...
  • Page 61 Ver. 1.3 Jan. 2005 25 24 Fuser Assy 2...
  • Page 62 Item Part Number 3506800060 IR Lamp 7706800010 IR Lamp 3505700350 Spur Gear,50T 3504400680 Collar 1 1710441650 Isolate Bushing 1710441640 Ball Bearing 1710441070 Collar E 3504400720 Collar 4 6813032332 Retaining Ring-C,S 3504400210 Lamp GP 1 1410441010 Lamp Mount 6803015231 Flat Washer Z034400040 Fixing Plate L Z034400070...
  • Page 63 Item Part Number Z034400360 Collar L 9000450308 Open/Close Bushing 9000450350 Edge Saddle 3504400020 Stud 1 7704420081 Lever L Z034400150 Fixing Pin 3504400170 Spring Hook 3 7704400370 Side Plate 10 7705803060 Extension Spring A 3504400700 Spring Hook 2 6801015106 Hex.Nut 3504400690 Spring Hook 1 6941421507 Set Screw、Cup Point...
  • Page 64 Ver. 1.3 Jan. 2005 36 44 Fuser Assy 3...
  • Page 65 Item Part Number 7704400950 Frame 7704401430 Guide 9000660195 Spur Gear,26T 3504400490 Shaft 8 2310440150 Roller 1 2310440160 Roller 2 Z034400420 Ring Z034400440 SENSOR SHAFT ＊ 1210440210 Boss 9000410004 Magnet 1710440420 Actuator 3504420080 Side Plate 13 7704400960 Frame 3504400110 Bearing Plate 1 3504400060 Actuator 3504420090...
  • Page 66 Item Part Number ---- ＊ 6817114032 Parallel Pin 9000450342 Cable Clamp 7704400991 Guide 6908203076 Bind.Head Screw 3104400740 Spring 9000450039 Cable Clamp 9000290106 Thermistor 7704400830 Bracket 510 6908201099 Bind.Head Screw 9000730025 Bind.Head Screw 6807033306 Retaining Ring-E ＊ Description φ2×14,SUS303 KCA-44 M3×6,Fe+Zn KCA-34 ES2U1.3B6-20075 M4×6,Fe+Z...
  • Page 67 Ver. 1.1 Oct. 2004 Door(Fuser)
  • Page 68 Item Part Number 4104400600 Cover 1 3504400100 Hook 3505806020 Torsion Spring D 3505806030 Torsion Spring E 3504420040 Side Plate 5 3504420050 Side Plate 6 3504400080 Shaft 4 3505800040 Compression Spring F 7704401330 Fixing Plate 5 3504420110 Roller Assy 7704460070 Stripper Finger Assy 1410441150 Discharge Brush 3504400120...
  • Page 69 Ver. 1.1 Oct. 2004 Cutter Unit...
  • Page 70 Item Part Number Z034000120 Shaft 16 3504020070 Stay Assy Z034000010 Cutter Z034000130 Cutter Base Z034020040 Bracket C1 Assy Z034000070 Bracket C2 Z034000080 Bracket C3 Z034000060 Side Plate 2 Z034000150 Guide Pin A Z034000110 Shaft 4 Z034000050 Side Plate 1 Z034000100 Shaft 2 Z034000020 Solenoid Fixing Bracket...
  • Page 71 Item Part Number Z031100230 Guide Plate(L) Z034000090 Pin 5 Z031100200 Bracket,Paper Guide(L) 4204000110 Shaft 4204000020 Shaft 2210420510 Compression Spring Z031100210 Bracket,Paper Guide(R) 6914202099 Bind.Head Screw,W/OTW Z031100760 Joint 3505800070 Spring 4 6817114034 Parallel Pin 3501108020 Coupling 9000770006 RING, GRIP Z034000230 Mylar Description M4×6,Fe+Ni φ3×18,SUS303...
  • Page 72 Ver. 1.1 Oct. 2004 Manual Table Assy...
  • Page 73 Item Part Number Z031520010 MF Bracket L Assy Z031520020 MF Bracket R Assy Z031500120 MF Table Shaft L Z031500130 MF Table Shaft R 3001700090 Bushing Z031500020 MF Link Z031500030 MF Crank Z031500080 Link Shaft Z031500270 MF Spring 4.8 Z031500320 MF End Plate(R) Z031500140 MF End Plate(L) Z031500100...
  • Page 74 Item Part Number 9000450002 Open/Close Bushing Z031500340 Pulley Shaft 3001700100 Collar 6914202099 Bind.Head Screw,W/OTW 6908201099 Bind.Head Screw 6908201102 Bind.Head Screw 6807033306 Retaining Ring-E 6807033308 Retaining Ring-E 6807033310 Retaining Ring-E Z036400360 Manual Size Sensor Lead Description OCB-375 M4×6,Fe+Ni M4×6,Fe+Z M4×12,Fe+Z E3,Ni E5,Ni E7,Ni Type...
  • Page 75 Ver. 1.1 Oct. 2004 Roll Spool Assy...
  • Page 76 Item Part Number 9601380010 Roll Spool Assy 4201300980 Holder 4631-2 Rod Pull 9600800310 Label Size M 9600800300 Label Size I 2210530070 Passive Roller 2210530100 Spool Guide Collar 6601301430 Spool Brake 4131-13 Slide Washer 4201300960 Spool Pin L 4201300970 Spool Pin R 6601320060 Lever 6601301330...
  • Page 77 Ver. 1.1 Oct. 2004 Roll Paper Deck Assy 1...
  • Page 78 Item Part Number 9601300710 Mayler 9601300110 Guide Plate,Movable 9601300180 Handle Cover 9601300050 Plate,Rear 9601300620 Guide Cover（2） 9601300120 2 Guide Plate(Entrance) 9601300770 1Cover(1) 9601300780 1Cover(2) 9601300140 Plate,Counter 9601300070 Guide Plate,Length(Center) 9601300090 Guide Plate,Center 9601300040 Guide Plate,Length 9000260054 Heater 9601300550 Bracket,Heater 9601300130 2 Guide Plate(Lower) 9601300100 2 Guide Plate(Upper)
  • Page 79 Item Part Number 9601300830 Shaft,Tension 4133-13 Bearing Spring A 6908205076 Bind.Head Screw 6908201099 Bind.Head Screw 6914202099 Bind.Head Screw,W/OTW 6908203076 Bind.Head Screw 9000730132 Bind.Head Screw 6807033308 Retaining Ring-E 9601300960 Mylar 9601300900 Sheet 1 9601300910 Sheet 2 9601300920 Sheet 3 9601300930 Sheet 4 9601300940 Sheet 5 9601300950...
  • Page 80 Ver. 1.1 Oct. 2004 Roll Paper Deck Assy 2...
  • Page 81 Item Part Number 9601300820 Cover,Harness 5701000480 Pulley,Pitch Circle φ20 9601300560 Shaft,Idler（12) 3101300760 30T Gear 9601300760 Gear Cover 9601300370 Pin,Push 9601300360 Bracket,Connector（AC） 9601300590 Bracket,Swing(2) 9601300750 Cover 4128-14 20T Spur Gear φ6 3506700010 Electromagnetic Clutch 9601300530 Stopper 5701000920 Spring,Tension A 9601300520 Shaft,Roller 6601300160 Roller 4201300120...
  • Page 82 Item Part Number 9000790022 Oilless Metal 9000780029 Ball Bearing 6908201099 Bind.Head Screw 9000450460 Locking Wire Saddle Description F8×11(15×2)×6,TYPE3 8*16*5NR M4×6,Fe+Z LWS-0511Z Type...
  • Page 83 Ver. 1.1 Oct. 2004 Roll Paper Deck Assy 3 24 10...
  • Page 84 Item Part Number 9000450314 Bushing 6807033312 Retaining Ring-E 4133-36 30/50,Gear/Pulley 5237 Belt 6916203125 Polywave Screw 9000820016 Thrust Washer 4201600050 Spur Gear 30T 3105700120 30T Gear 3101400140 30T Gear 4201600040 Spacing Plate 9601300480 Shaft,Idler(5) 3611-21 40T　Gear 9000450460 Locking Wire Saddle 5701200250 Hook,Cover 9000450120 Open/Close Bushing...
  • Page 85 Ver. 1.1 Oct. 2004 Roll Paper Deck Assy 4...
  • Page 86 Item Part Number 9601300170 Sensor Cover 9601300720 Bracket,Support 9000100811 Photointerrupter 6601300810 Plate Pulse 45 9601300350 Bracket,Connector（DC） 6601300790 Box Pulse 9000790022 Oilless Metal 6601300830 Shaft 9000450120 Open/Close Bushing 9601300330 Bracket,Hook(2) 4133-22 Lock Shaft Receiver 9601300340 Spring,Hook 5701200250 Hook,Cover 9601300380 Bracke,Guide(1) 6601300820 Stopper 6601300800 Roller...
  • Page 87 Ver. 1.1 Oct. 2004 Panel Assy...
  • Page 88 Item Part Number Z030400140 Top Cover(3) Z030400240 Upper Sponge 2 3504400800 Cover 8 Z030400260 Knob Z030400100 Fuser Side Cover R Z030400090 Fuser Side Cover L Z030400110 Rear Cover 3500400371 Transparent Cover Z030400080 Side Cover (3-R) Z030400060 Side Cover (2-R) Z030400160 Front Side Cover R Z030400040 Switch Cover...
  • Page 89 Item Part Number Description Type 6908201099 Bind.Head Screw M4×6,Fe+Z...
  • Page 90 Ver. 1.1 Oct. 2004 Accessory 1...
  • Page 91 Item Part Number Z030300010 Sub Plate(A) Z030300030 Cover(C) 6600300040 Bracket 9600300010 Sub Plate Cover Z030300200 Sub Plate(B) 6908201099 Bind.Head Screw Description M4×6,Fe+Z Type...
  • Page 92 Ver. 1.1 Oct. 2004 Accessory 2...
  • Page 93 Item Part Number 9600300160 Exit Tray A 5705400021 Tray B Z030300070 Tray C 5705400040 5705400170 Plate A(KIP) Z030300060 Exit Tray Plate 2 9600300180 Exit Tray E Z030300050 Exit Tray Plate Z030300090 Exit Tray Sponge 9600300210 Fixing Pin Z030300041 Exit Tray Bracket 1 6908201103 Bind.Head Screw 6908201099...
  • Page 94 Ver. 1.2 Jan. 2005 PCBS Location 1...
  • Page 95 Item Part Number 6606260050 Eraser PCB A Assy 6606260061 DC Terminal PCB Assy Z036260041 Indication PCB Assy 6606260150 Driver PCB B Assy Z036260060 Interface PCB Assy 7206260191 Driver PCB　Assy 9606260011 PW9620 PCB ASSY Z036260092 Flash Memory 9606260120 Fuse PCB Assy 6606260170 AC Terminal PCB A Assy 9000500225...
  • Page 96 Ver. 1.3 Jan. 2005 Harness List 2...
  • Page 97 Item Part Number 9606660020 HV Power Supply 7206700130 Speed Controller Z036270010 Motor Control PCB A Assy Z036260020 Driver PCB C Assy 9606660010 HV Power Supply 9000500219 Power Supply 7706600030 H.V. Power Supply Assy HV 7706260180 Phase Controller(C) PCB 9000500142 Power Supply 6606260260 PC Control PCB (B) Assy 9606260150...
  • Page 98 Ver. 1.2 Jan. 2005 Harness List 1...
  • Page 99 Item Part Number 9606400182 Dehum Lead B 9606400170 Dehum Lead A 9606400050 Deck Lead Z036400440 IF Cable A Z036400041 IF Cable B Z036400020 AC Harness Z036400030 Main Harness Z036400070 Feeder Lead Z036400090 Regist Sensor Lead Z036400100 MP Lead Z036400110 Movable Unite Lead Z036400120 Signal Cable Z036400140...
  • Page 100 Ver. 1.1 Oct. 2004 Harness List 2...
  • Page 101 Item Part Number Z036400450 HV GND Lead Z036400480 Bias Lead 3 Z036400500 Bias Joint Lead 2 Z036400470 Bias Lead 2 Z036400460 Bias Lead 1 Z036400490 Bias Joint Lead 1 Z036400060 Left Side Harness 9606400080 Dehum Transit Lead Z036400130 PC Power Lead Z036400330 Back Harness Z036400220...
  • Page 102 Ver. 1.3 Jan. 2005 (U) Controller Case Kit...
  • Page 103 Item Part Number PC Frame PC Panel HDD Bracket Locking Wire Saddle PPEPS DC Power supply Cover PC Cover Bind.Head Screw Bind.Head Screw,W/OTW ＊ PC Power Cord Gasket ＊ Gasket ＊ Gasket ＊ Description 7701120071 7701102101 7701102122 9000450465 5206660011 5707100070 7701110031 6908203076 6914202100...
