Windows Xp And Windows Server 2003 Installation - Brainboxes PX-101 Product Manual

2.1. Windows XP and Windows Server 2003 installation

Note: Images below show a PX-260 4 Port RS-232 device as an example. The same installation steps
can be applied to all other products in the PCI Express range.
1. Turn off the PC (unplug from power socket) and insert the PCI Express Card into a free PCIe slot.
2. Turn the PC on.
3. Insert the Boost.PCIe CD

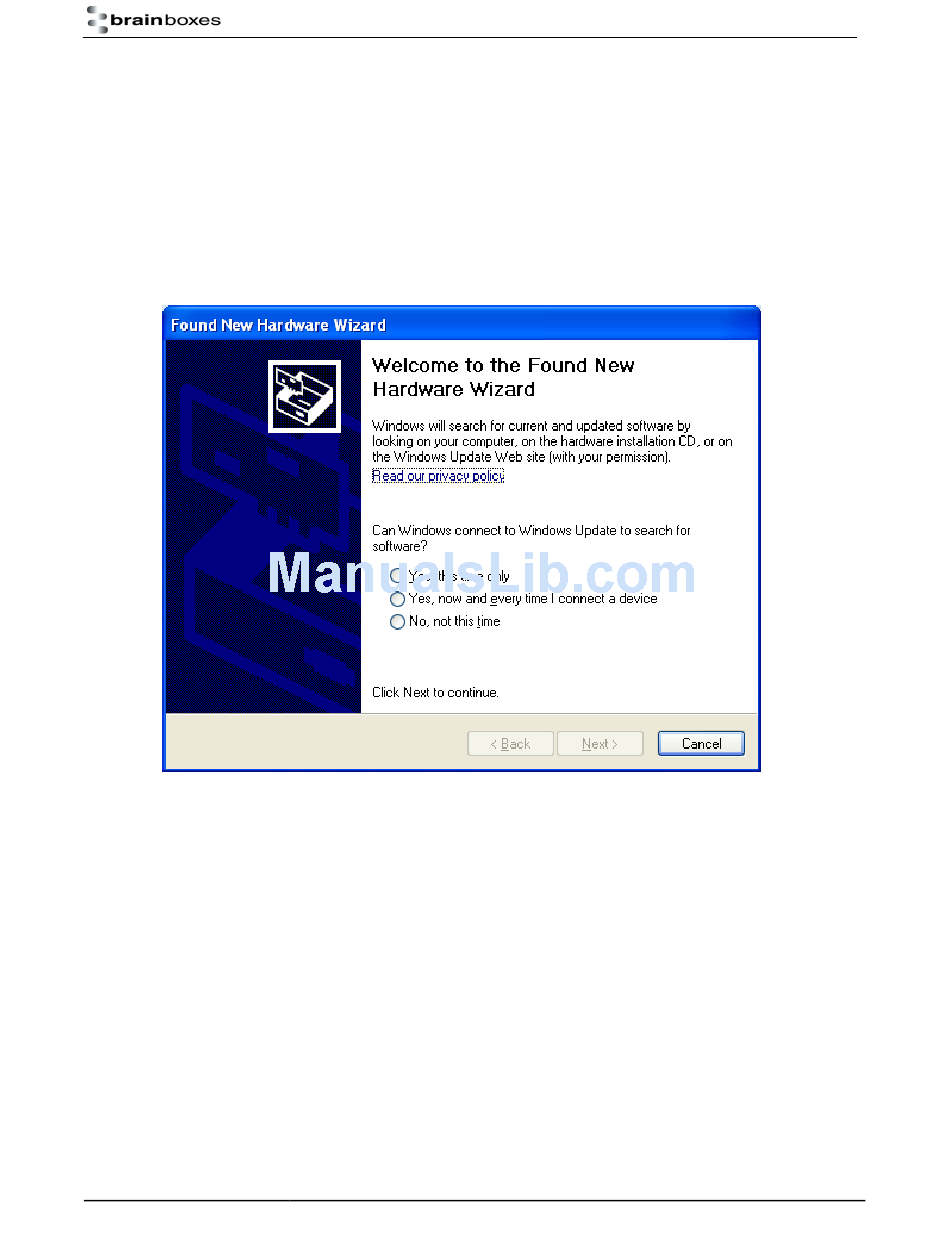

4. If you would like to install via Windows Update, select "Yes, this time only". Otherwise Select 'No,
not this time' to install from the CD and click next.
PX Range Product Manual Version 2.3 © Copyright Brainboxes Limited 2013 Page 7 of 45
