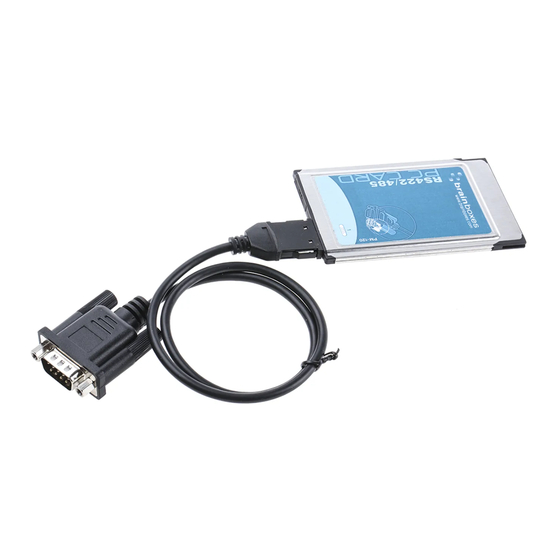

1 port rs422/485
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Brainboxes PCMCIA Series Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCMCIA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brainboxes PCMCIA Series

Summary of Contents for Brainboxes PCMCIA Series

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 PCMCIA 1 PORT RS422/485 1.2 EDITION OCTOBER 1999 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Guarantee. FULL 36 MONTHS GUARANTEE. We guarantee your interface card for a full 36 months from purchase, parts and labour, provided it has been used in the specified manner. In the unlikely event of failure return your interface to your Dealer, with proof of purchase, who will determine whether to repair or replace this product with an equivalent unit.

  • Page 4: Chapter 4 - Additional Rs422/485 Operation

    PCMCIA 1 Port RS422/485 Introduction The Layout Of This Manual THE LAYOUT OF THIS MANUAL Chapter 1 - Hardware Configuration, Summarises the features of the PCMCIA 1 Port RS422 485 Card. Chapter 2 – Installing the card into the PC, Explains how to insert a new PCMCIA card Chapter 3 –Software Installation This chapter details how to install and configure the...

  • Page 5: Table Of Contents

    PCMCIA 1 Port RS422/485 Introduction Table Of Contents. 4 – A RS422/485 O ......2 HAPTER DDITIONAL PERATION 1 HARDWARE GUIDE ..........5 HAPTER Introduction................5 PCMCIA 1 Port RS422/485 Card Features......5 Configuring PCMCIA Cards............5 2 INSTALLING IN YOUR COMPUTER....6 HAPTER 3 SOFTWARE INSTALLATION......7 HAPTER Introduction................7...
  • Page 6 PCMCIA 1 Port RS422/485 Introduction RS422 Serial Port Cables............38 RS485 Operation..............39 RS485 Cable................39 RS485 One Talker - Many Listeners, Half Duplex....40 RS485 Many Talkers- Many Listeners, Half Duplex.....41 RS485 Many Talkers- Many Listeners, Full Duplex....41 Optional Grounding Arrangements.........43 .....................46 NDEX Intro...

  • Page 7: Chapter 1 Hardware Guide

    PCMCIA 1 Port RS422/485 Hardware Guide CHAPTER 1 HARDWARE GUIDE Introduction. This chapter details the specifications of the PCMCIA 1 Port RS422/485 Serial card. PCMCIA RS422/485 Card Features. 1 Port * Reliable communications up to 1KM! * 100% 16C550 PC Compatible serial port, up to 1 Megabaud. 16950 Compatible FIFO provides 128-byte input and 128-byte output buffer on each port.

  • Page 8: Chapter 2 Installing In Your Computer

    PCMCIA 1 Port RS422/485 Installing the Card CHAPTER 2 INSTALLING IN YOUR COMPUTER This card is ‘hot plug’ compatible it may be inserted into your pcmcia type 2 slot when the machine is either off or powered on. Please refer to your machine user guide for detailed instructions on inserting a PC card.

  • Page 9: Chapter 3 Software Installation

    PCMCIA 1 Port RS422/485 Software Installation CHAPTER 3 SOFTWARE INSTALLATION Introduction. This section describes the software installation procedure allowing the PCMCIA 1 port RS422/485 to be configured within the Windows 95 and Windows 98/Millennium operating systems. Windows 95 Installation • Insert the card into an available type2 socket. This can be done even if the machine is powered ON.

  • Page 10: Windows 95 Cd Rom Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Windows 95 CD ROM Installation Procedure Click Other Locations Type <drive>:\diskimg\sswin9x substituting the letter of your CD ROM drive for <drive> Click OK Chapter 3 Page 8 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 11 PCMCIA 1 Port RS422/485 Software Installation Click Finish Click OK Type *<drive>:\diskimg\sswin9x substituting the letter of your CD ROM drive for <drive> Click OK Chapter 3 Page 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 12: Windows 95 Floppy Disk Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Windows 95 Floppy Disk Installation Procedure Click Finish Click OK Type a:\ Click OK Chapter 3 Page 10 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 13: Windows 98 And Windows Millennium Installation

    PCMCIA 1 Port RS422/485 Software Installation Windows 98 and Windows Millennium Installation • Windows Millennium Installation follows the same procedure as Windows 98 Installation. • Insert the card into an available type2 socket. This can be done even if the machine is powered ON. •...

  • Page 14: Windows 98 Cd Rom Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Windows 98 CD ROM Installation Procedure Choose the “Search for the best driver for your device” Click Next Select Specify a location Type <Drive>:\diskimg\sswin9x\ Where <Drive> is the letter of your CDROM Drive Click Next Chapter 3 Page 12 Artisan Technology Group - Quality Instrumentation ...
  • Page 15 PCMCIA 1 Port RS422/485 Software Installation Click Next Click Finish Chapter 3 Page 13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 16: Windows 98 Floppy Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Windows 98 Floppy Installation Procedure Choose the “Search for the best driver for your device” Click Next Select Floppy disk drives Click next Chapter 3 Page 14 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 17 PCMCIA 1 Port RS422/485 Software Installation Click next Click Finish Chapter 3 Page 15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 18: Pcmcia Card Setup In Windows 95, Windows 98 And Windows Millennium

    PCMCIA 1 Port RS422/485 Software Installation PCMCIA Card Setup in Windows 95, Windows 98 and Windows Millennium Right Click My Computer -> Properties on the desktop Click on the Device Manager tab Under Multi-function adapters double-click on PCMCIA 1 Port 422 Card Chapter 3 Page 16 Artisan Technology Group - Quality Instrumentation ...

  • Page 19: Pcmcia Port Setup In Windows 95, Windows 98 And Windows Millennium

    PCMCIA 1 Port RS422/485 Software Installation Click on the Serial Solutions tab The Serial Solutions tab allows modification of any user controlled features for the card PCMCIA Port Setup in Windows 95, Windows 98 and Windows Millennium Right Click My Computer -> Properties on the desktop Chapter 3 Page 17 Artisan Technology Group - Quality Instrumentation ...
  • Page 20 PCMCIA 1 Port RS422/485 Software Installation Under Ports (COM &LPT) double-click on PCMCIA RS422 PORT (COM*) *is the number allocated to the port. Click on the Port Settings tab Chapter 3 Page 18 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 21 PCMCIA 1 Port RS422/485 Software Installation Settings available in this window are: Baud Rate. Data Bits. Change to suit remote device. Parity. Stop Bits. Flow Control. Restore Defaults - When clicked, this will reset the selected port to the default values of: Baud Rate: 9600 Data Bits:...
  • Page 22 PCMCIA 1 Port RS422/485 Software Installation Click on the Serial Solutions tab. Settings available in this window are 485 mode. - This option enables the card to be switched into full or half duplex (2 or 4 wire) mode. Please note that the supplied cable requires modification for 2 way communication in half duplex mode.

  • Page 23: Windows 2000 Installation

    PCMCIA 1 Port RS422/485 Software Installation Windows 2000 Installation • Insert the card into an available type2 socket. This can be done even if the machine is powered ON. • If installing from a "power off" condition Windows 2000 should then load normally.

  • Page 24: Windows 2000 Cd Rom Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Select "Search for a suitable driver for my device" Click Next Windows 2000 CD ROM Installation Procedure Select Specify a location Click Next Chapter 3 Page 22 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 25 PCMCIA 1 Port RS422/485 Software Installation Type <Drive>:\diskimg\sswin2k\ Where <Drive> is the letter of your CDROM Drive Click OK Click Next Chapter 3 Page 23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 26 PCMCIA 1 Port RS422/485 Software Installation Please note, at the time of creation of this document, Windows2000 is still in BETA, and it is not possible to get drivers signed by Microsoft. Brain Boxes fully intend to have obtained a driver signature for this product shortly after the operating system is available on general release.

  • Page 27: Windows 2000 Floppy Installation Procedure

    PCMCIA 1 Port RS422/485 Software Installation Windows 2000 Floppy Installation Procedure Select Floppy disk drives Click next Click Next Chapter 3 Page 25 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 28 PCMCIA 1 Port RS422/485 Software Installation Please note, at the time of creation of this document, Windows2000 is still in BETA, and it is not possible to get drivers signed by Microsoft. Brain Boxes fully intend to have obtained a driver signature for this product shortly after the operating system is available on general release.

  • Page 29: Pcmcia Port Setup In Windows 2000

    PCMCIA 1 Port RS422/485 Software Installation PCMCIA Port Setup in Windows 2000 Right Click My Computer -> Properties on the desktop Select the Hardware Tab Click Device Manager Chapter 3 Page 27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 30 PCMCIA 1 Port RS422/485 Software Installation Click on Ports (COM & LPT) Double Click on Brain Boxes Serial Port Select the Port Settings Tab Click on Advanced Chapter 3 Page 28 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 31: Windows Nt4 Installation

    PCMCIA 1 Port RS422/485 Software Installation From this Screen COM port allocations can be changed Windows NT4 Installation Though the PCMCIA 1 Port RS422/485 card can be used in Windows NT4 it is not yet available as a hot-pluggable card . Also not available is the half duplexing option.
  • Page 32 PCMCIA 1 Port RS422/485 Software Installation Double Click on the Ports Icon. Note the COM Ports Listed Click Cancel. Power down your computer Insert the PCMCIA Card. Power up your computer. Chapter 3 Page 30 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 33 PCMCIA 1 Port RS422/485 Software Installation Click on Start => Settings => Control Panel Double Click on the Ports Icon. The New port listed (in this case COM2 will be the PCMCIA card port. Chapter 3 Page 31 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 34: Windows Ce Installation

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation Windows CE Installation Place card in socket Select Start Programs Communications Remote Networking Select: " Make New Connection ", with your pen Chapter 4 Page 32 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 35 PCMCIA 1 Port RS422/485 Additional 422/485 Operation Type a name for the connection in the field under "Type a name for the connection" Select "Dial up Connection" Radio button Select Next>" The Dialog shows a modem Icon with the name from the previous screen There is a drop down dialog underneath "Select a Modem"...
  • Page 36 PCMCIA 1 Port RS422/485 Additional 422/485 Operation Select configure Button Device propreties set the following Baud Rate 9600 Data Bits Parity None Stop Bits Flow Control None Chapter 4 Page 34 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 37: Chapter 4 Additional Rs422/485 Operation

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation CHAPTER 4 ADDITIONAL RS422/485 OPERATION The RS422 Standard. The RS422 standard defines a serial communications standard. RS422 is a high speed and/or long distance data transmission. Each signal is carried by a pair of wires and is thus a differential data transmission system.

  • Page 38: Terminating Impedance's

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation transmit enable signal, so preventing contention between talkers. RS485 Standard Up to 32 Driver/Receiver Pairs Line Length Max Data Rate 40 Feet = 10 Mbits/sec 400 Feet = 122m 1 Mbits/sec 4000 Feet = 1219m 100 Kbits/sec Terminating Impedance’s.

  • Page 39: Fail Safe Short Circuit Protection

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation unintentionally when the twisted pair line is accidentally cut or disconnected or the transmitting device fails. In RS485 party line systems there are extended periods of time when none of the many possible talkers are gated onto the bus. This is known as the line idle state and occurs when all the driver outputs are in the high impedance state.

  • Page 40: Rs422 Serial Port Cables

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation In this way, no data will ever be transmitted when the receiver is unable to accept it, due to a full input buffer etc. And so no data will be lost. RS422 Serial Port Cables. Use screened twisted pair Belden cable 9729 and 9829, L type 2493 and 2919 or IBM Part No 4716748 cable to make the RS422 connection.

  • Page 41: Rs485 Operation

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation RS485 Operation. The RS485 standard is intended for up to 32 driver receiver pairs on the bus. The line drivers used in the Serial Solutions RS422/485 card are designed to work correctly in both RS422 and RS485 systems.

  • Page 42: Rs485 One Talker - Many Listeners, Half Duplex

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation RS485 connection. Terminate the twisted pair cable at either end in its characteristic impedance, which for the Belden 9729 cable is 120 Ohms. Unscreened Belden type 8795 may also be used in less noisy environments.

  • Page 43: Rs485 Many Talkers- Many Listeners, Half Duplex

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation Figure 4-3 Half Duplex Wiring (RXD+) (TXD+) (RXD-) (TXD-) RS485 Many Talkers- Many Listeners, Half Duplex. Another popular RS485 layout is for multiple talkers and multiple listeners. This is shown in Figure 4-4, below. This is also known as "party line"...
  • Page 44 PCMCIA 1 Port RS422/485 Additional 422/485 Operation a third party communications program that prevents the use of the RTS signal as a "transmit enable" control, via the TXD GATE jumper. It can be used in the following situations:- The PC is connected to only ONE RS485 device. The PC is communicating with several RS485 devices that are each able to recognize and respond to their own unique address.

  • Page 45: Optional Grounding Arrangements

    PCMCIA 1 Port RS422/485 Additional 422/485 Operation Figure 4-5. RS485 Full Duplex Wiring. (TXD-) (TXD-) (RXD+) (RXD+) (RXD-) (RXD-) (TXD+) (TXD+) Figure 4-6. RS485 Full Duplex. Note: The receiver end of MAIN line terminated in characteristic impedance, stubs off the main not terminated. Optional Grounding Arrangements.
  • Page 46 PCMCIA 1 Port RS422/485 Additional 422/485 Operation Figure 4-7 - Optional Grounding Arrangements For A PCI RS422/485 Card. Configuration A) 100Ω (1/2) W Configuration B) Signal Ground Interchange circuit. GWG = Green wire ground of power system. Configuration A) The circuit common of the equipment is connected to protective ground, at one point only by a 100 Ω, ±20% resistor with a power dissipation rating of 1/2W.
  • Page 47 PCMCIA 1 Port RS422/485 Additional 422/485 Operation Configuration B) The circuit common shall be connected directly to protective ground. The same configuration need not be used at both ends of an interconnection; however, care should be exercised to prevent establishment of ground loops carrying high currents.

  • Page 48: Index
