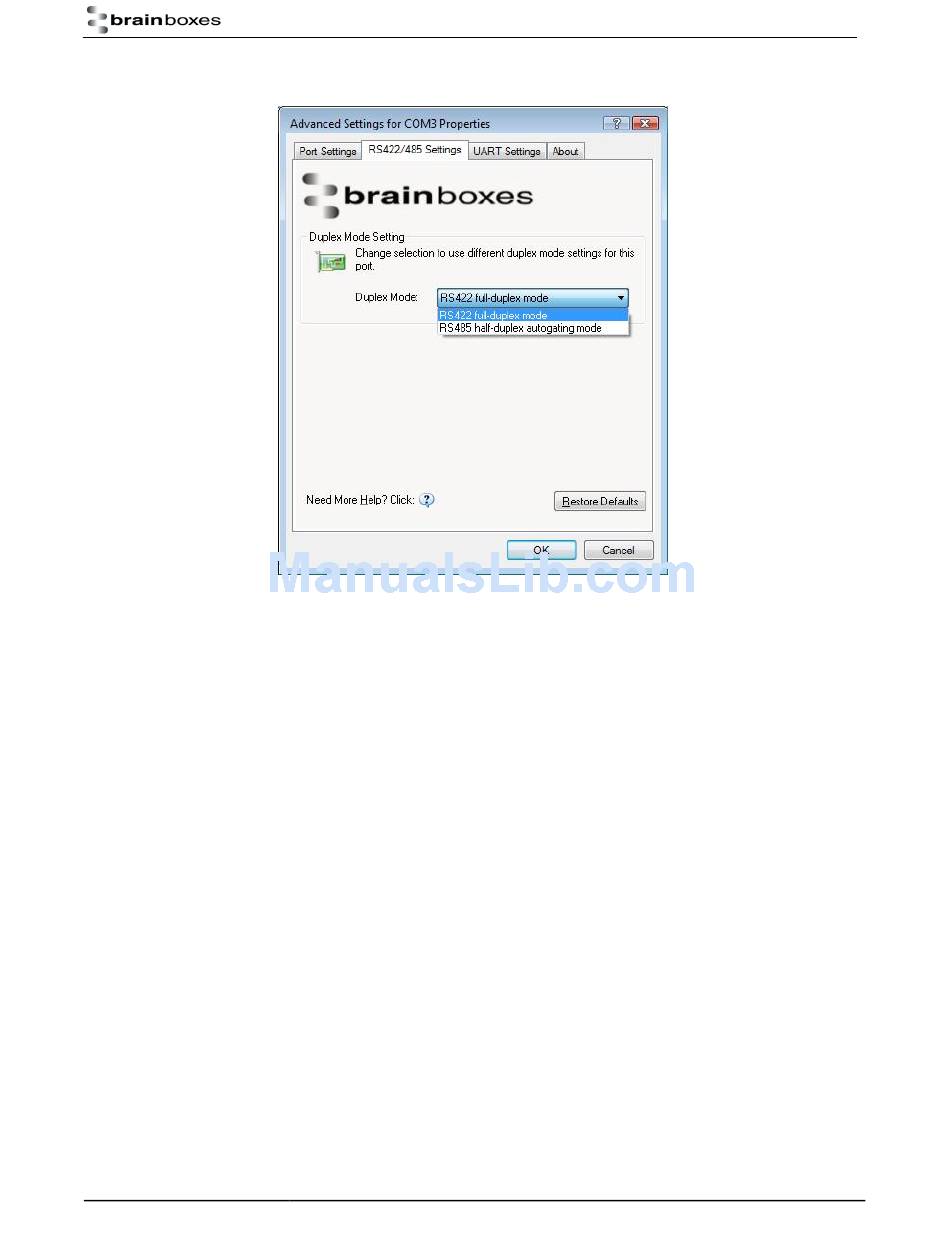

For RS-422/485 products only, there is an additional tab in the Advanced Settings to allow you to change
duplex mode.
The drop down list allows users to choose the desired RS-422/485 operations mode.
•
Select "RS-422 full duplex mode" for Full Duplex communications.
•
Select "RS-485 half-duplex autogating mode" for Half Duplex communications.
•
For further details on wiring, see Section 8.2: Device Pinout
•
Restore Defaults: Pressing this button will reset all settings on this Property Page back to the factory
•
defaults of this device. The default settings for this Property Page are "RS-422 full duplex mode".
Background Information:
•
DTR/DSR Handshaking is not available on 422/485 devices.
•
