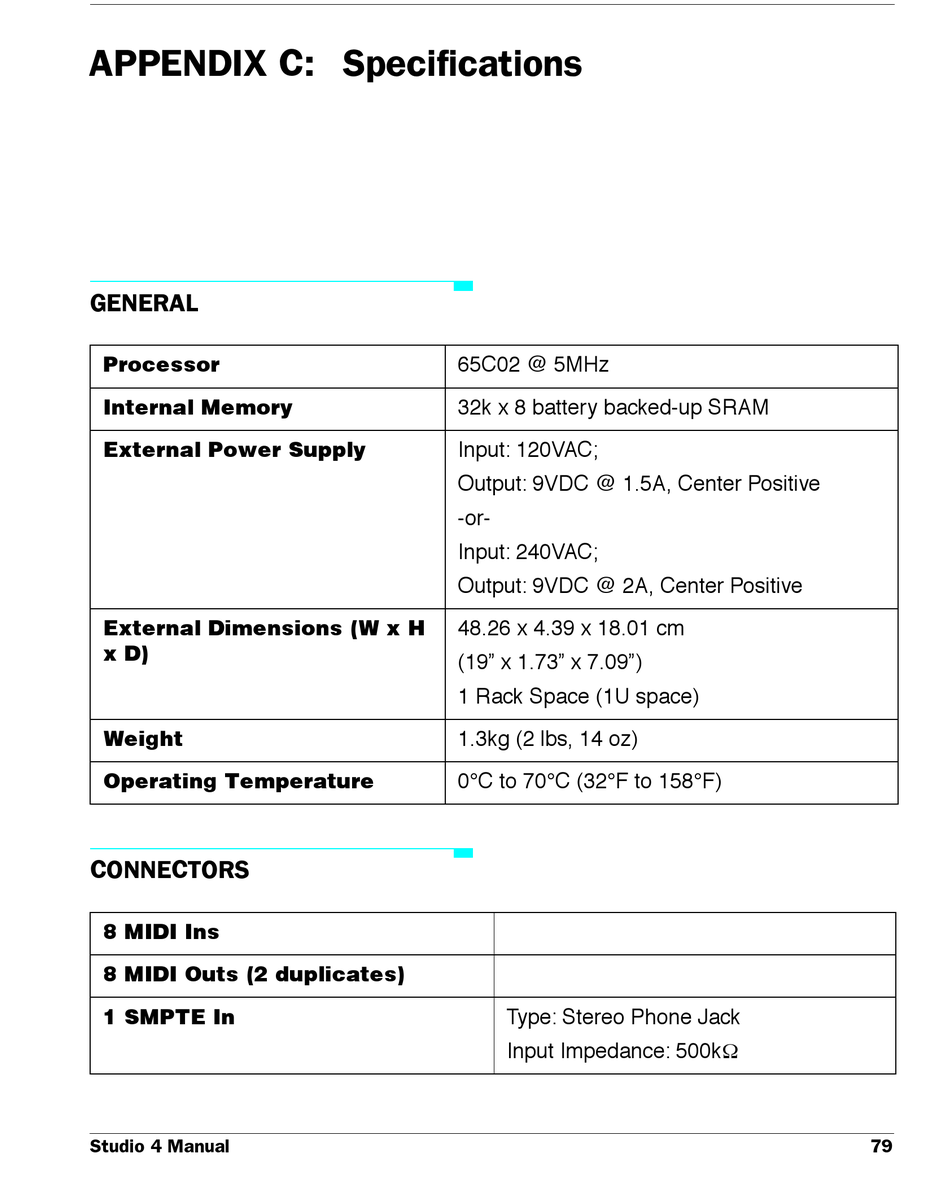

APPENDIX C: Specifications

GENERAL

Processor
Internal Memory
External Power Supply
External Dimensions (W x H
x D)
Weight
Operating Temperature

CONNECTORS

8 MIDI Ins
8 MIDI Outs (2 duplicates)
1 SMPTE In
Studio 4 Manual
65C02 @ 5MHz
32k x 8 battery backed-up SRAM
Input: 120VAC;
Output: 9VDC @ 1.5A, Center Positive
-or-
Input: 240VAC;
Output: 9VDC @ 2A, Center Positive
48.26 x 4.39 x 18.01 cm
(19Ó x 1.73Ó x 7.09Ó)
1 Rack Space (1U space)
1.3kg (2 lbs, 14 oz)
0¡C to 70¡C (32¡F to 158¡F)
Type: Stereo Phone Jack
Input Impedance: 500kW
