duplicates the timecode and sends it to
the SMPTE OUT jack.
Audio Out
Audio In
SMPTE
PORT B
PORT A
IN
OUT
9VDC
B
A
8
7
6
THRU
THRU
16
15
14

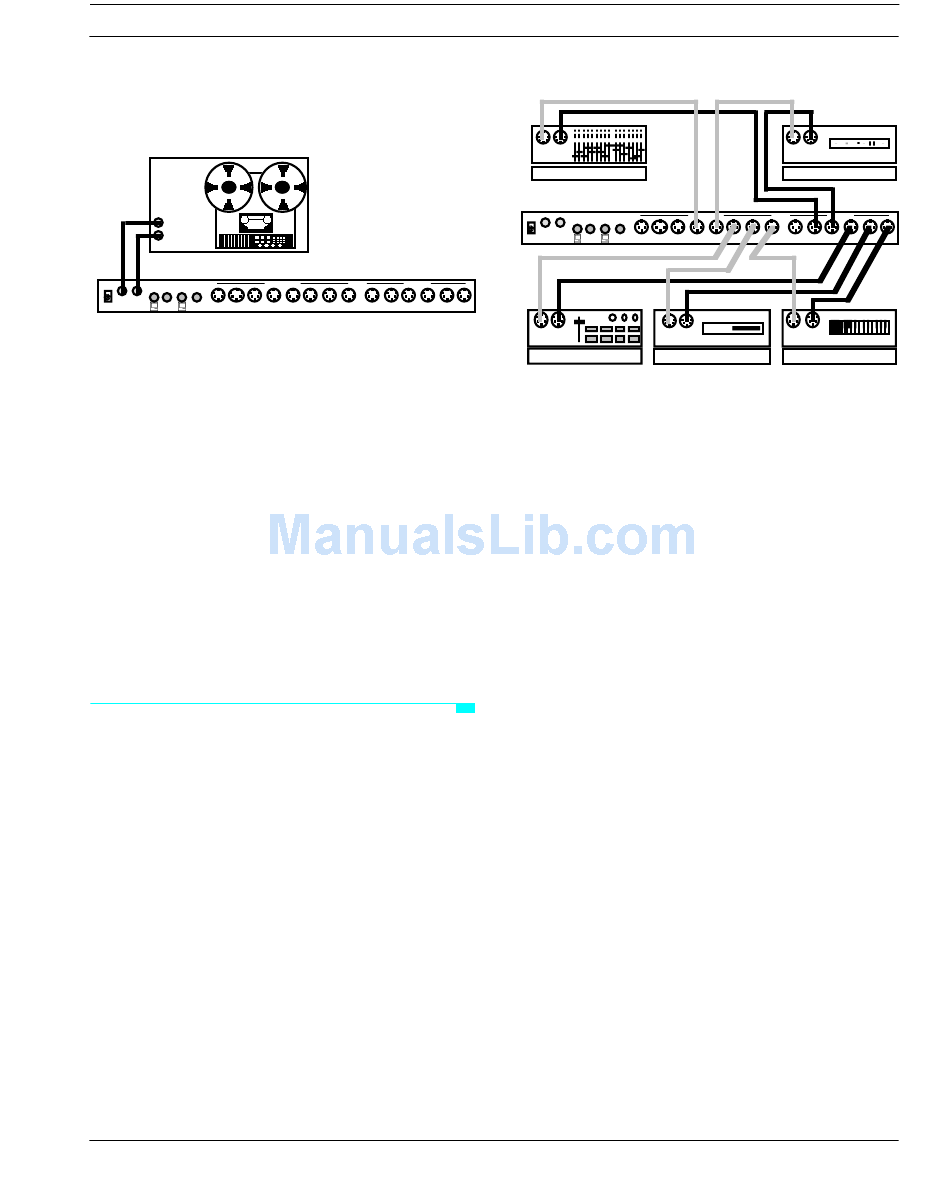

Figure 3.15: SMPTE Connections
To use the Studio 4 as a synchronization
device, connect a pair of shielded audio
cables between the Studio 4 and a multi-
track tape deck. Connect the SMPTE
OUT jack to the audio input of a tape deck
for SMPTE striping (usually the last
track). Connect the SMPTE IN jack of the
Studio 4 to the audio output of the multi-
track's SMPTE track. Connect the
Studio 4 directly to the tape deck, bypass-
ing the mixing console, equalizer, or any
other signal processing equipment.
MIDI CONNECTIONS
Connect a MIDI device's MIDI input to a
MIDI OUT port on the Studio 4. Connect
the like-numbered Studio 4 MIDI IN port
to the device's MIDI output. Figure 3.16
shows some typical MIDI connections.
Studio 4 Manual
MIDI OUT
MIDI IN
5
4
3
2
1
6
5
4
3
2
13
12
11
10
9
14
13
12
11
10
CHAPTER 3: Hardware Installation
IN OUT
MIDI MIXER
SMPTE
PORT B
PORT A
IN
OUT
9VDC
B
A
8
THRU
THRU
16
1
9
IN OUT
DRUM MACHINE
Figure 3.16: MIDI Connections
NOTE: If you wish to load patches from a
device into Opcode's Galaxy program, you
must connect that device's MIDI In and
Out ports to identically-numbered ports on
the Studio 4 (as shown in Figure 3.16).
IN OUT
MIDI EFFECTS
MIDI OUT
MIDI IN
7
6
5
4
3
2
1
6
5
4
15
14
13
12
11
10
9
14
13
12
IN OUT
IN OUT
SYNTH MODULE
SYNTHESIZER
3
2
1
11
10
9
17
