MACINTOSH
SMPTE
MIDI OUT
PORT B
PORT A
IN
OUT
9VDC
B
A
8
7
6
THRU
THRU
16
15
14
SMPTE
MIDI OUT
PORT B
PORT A
IN
OUT
9VDC
B
A
8
7
6
THRU
THRU
16
15
14

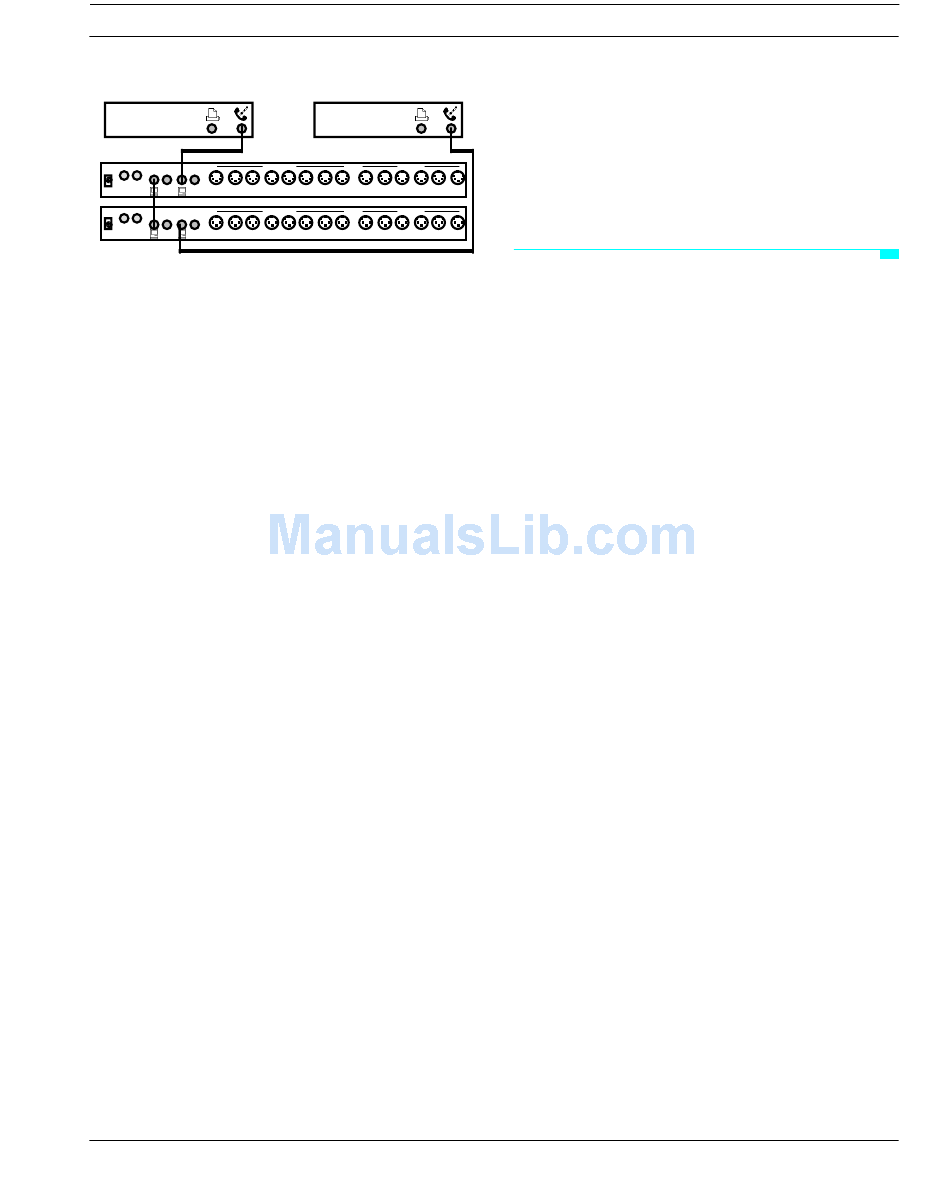

Figure 3.6: Two Macs Sharing Two Studio 4's
If you connect two computers to a
Studio 4, you must check the Multiple
Computers option in the Studio 4
menu. Do not check this option if you're
not using two computers to control the
Studio 4.
Multiple Macintosh Caveat
Use only one computer at a time to initiate
actions that change a Studio 4's internal
state—always wait at least 1 second
before initiating any state-changing
actions from a different computer.
Actions that cause the Studio 4 to change
state include:
•
Clicking anywhere in either the Net-
work Routing window or the Routing,
Channelizing and Muting window.
•
Switching, opening or quitting
applications.
•
Performing Galaxy patch transfers.
•
Making different windows active in
OMS Setup and the Studio Patches
Editor.
•
Using the Enable Inputs dialog in
Vision.
If you use different computers to change
the Studio 4's internal state too quickly,
Studio 4 Manual
MACINTOSH
MIDI IN
5
4
3
2
1
6
5
4
3
2
13
12
11
10
9
14
13
12
11
10
MIDI IN
5
4
3
2
1
6
5
4
3
2
13
12
11
10
9
14
13
12
11
10
CHAPTER 3: Hardware Installation
the enabling and/or routing of Studio 4
inputs to the Macintosh computers may
be incorrect. If you suspect trouble,
choose OMS MIDI Setup from within
any OMS application and click OK.
1
9
1
9
COMPUTER CONNECTIONS—
NETWORKING
A network is defined as the connection of
one or two Studio 4's to a single Macin-
tosh serial port. The Macintosh has two
serial ports, so it can support two net-
works. Since each network can contain
either one or two Studio 4's, you can con-
nect up to four Studio 4's to a single
Macintosh for a maximum total of 512
MIDI channels.
NOTE: When networking two Studio 4's,
always connect their "B" ports together.
Connecting Two Studio 4's to a
Macintosh
There are many possible ways to connect
two Studio 4's to a single Macintosh. You
can connect them as one network on a
single port, as two separate networks, or
as a 2-cable network. With two Studio 4's,
you can access up to 256 independent
MIDI channels.
One Network/1-Cable
The first option is to connect both
Studio 4's in a single network as shown in
Figure 3.7. Set each Studio 4's front panel
1-8/9-16 switch as indicated. You may
connect the network to either Macintosh
13
