Studio Setup document contains an icon
for each Studio 4 and OMS driver object
found.

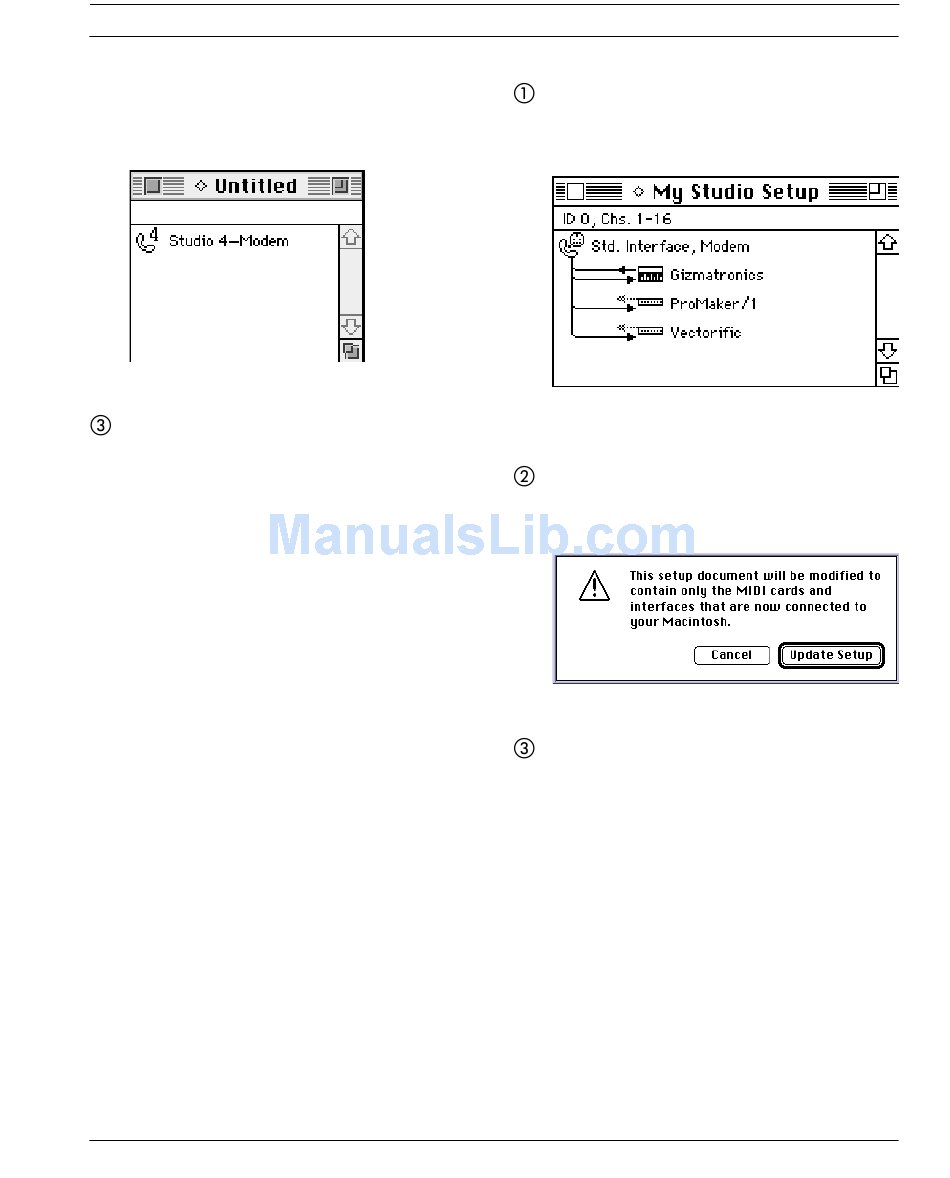

Figure 4.2: Untitled Studio Setup Document
Add MIDI devices and connect them
as discussed in your OMS manual.
Each device that you connect to the
Studio 4 will have a port number in its
path. You must set MIDI port numbers in
the Studio Setup document to reflect the
actual Studio 4 port numbers to which
devices are connected.
Updating an Old Studio Setup
Document
If you already have a current Studio Setup
document, but it doesn't reflect your cur-
rent studio configuration (for example,
you had a standard interface, but are now
using the Studio 4), you'll need to update
it.
Studio 4 Manual
CHAPTER 4: Software Installation and Setup
Launch OMS Setup.
Your current studio setup document
opens.
Figure 4.3: Standard Interface Studio Setup
Document
Choose Studio>MIDI Cards &
Interfaces to open the Update Setup
dialog box.
Figure 4.4: Update Setup Dialog Box
Click Update Setup or hit the return
key.
A dialog box appears. There is a check
box for each Macintosh serial port. You
should check only those ports that are
