PART 2: Using The Studio 4
Step 4: Typical of all Output Mutings
Step 3

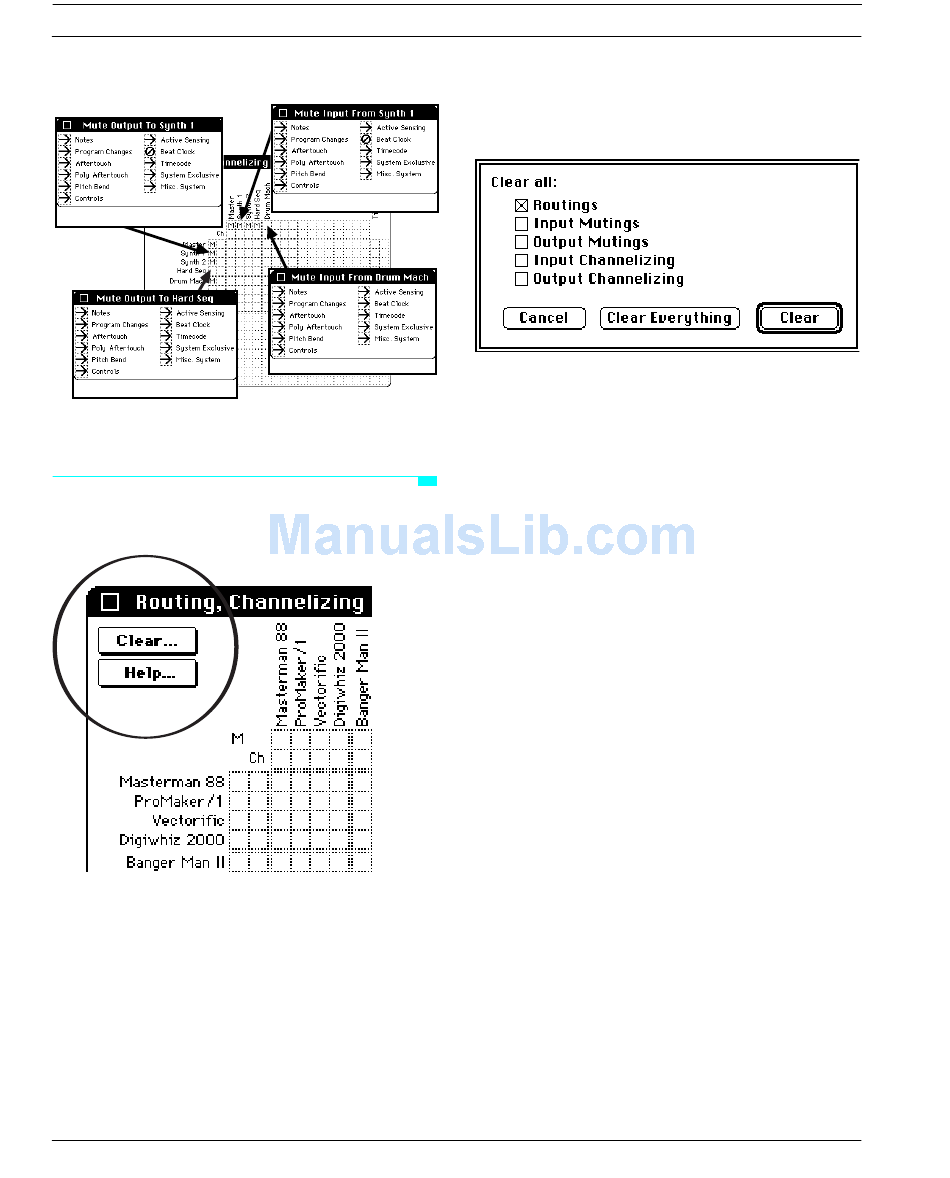

Figure 7.26: RCM Window Muting Example 3
THE CLEAR AND HELP
BUTTONS
Figure 7.27: Clear and Help Buttons
Click the Help button to open on-line
Routing, Channelizing and Muting
window help.
52
Step 2: Typical of all Input Mutings
Step 1
Click the Clear button to open the follow-
ing dialog box.
Figure 7.28: Clear Dialog Box
Click each check box to select the rout-
ing, channelizing or muting shown to its
right. Then click the Clear button to
remove all checked functions.
Click the Clear Everything button to
clear ALL routings, mutings, and
channelizing.
Click Cancel to close the dialog box with-
out clearing anything.
Opcode Systems, Inc.
