PART 1: Overview and Installation
Three Studio 4's

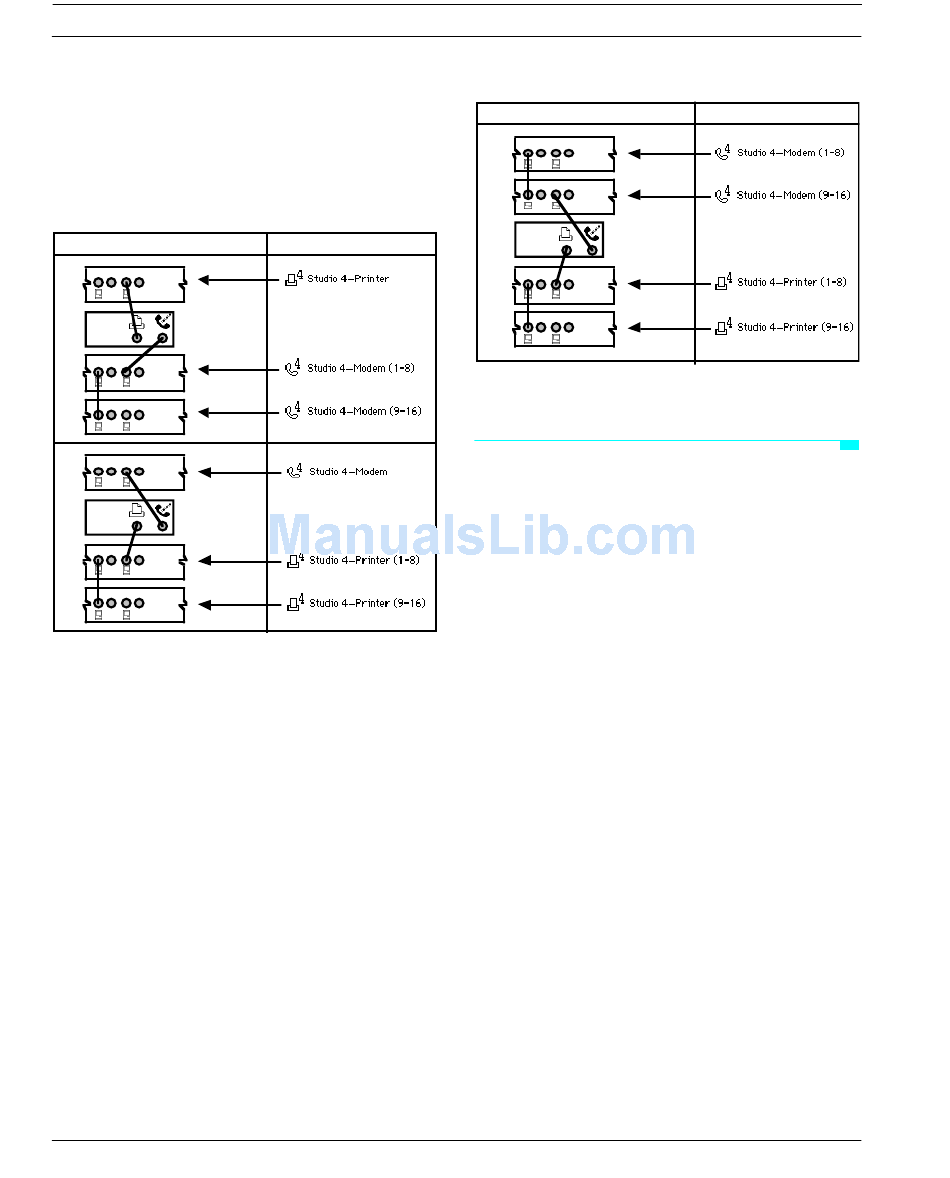

Figure 4.10 illustrates some connections
involving three Studio 4's and the result-
ing Studio Setup icons.
Mac <-> Studio 4 Connection
PORT B PORT A
Studio 4
B A
THRU THRU
Macintosh
PORT B PORT A
Studio 4
B A
THRU THRU
PORT B PORT A
Studio 4
B A
THRU THRU
PORT B PORT A
Studio 4
B A
THRU THRU
Macintosh
PORT B PORT A
Studio 4
B A
THRU THRU
PORT B PORT A
Studio 4
B A
THRU THRU
Figure 4.10: Studio Setup Icons—Three Studio 4's
Four Studio 4's
If you connect four Studio 4's to a Macin-
tosh, they will be shown in the Studio
Setup document as shown in Figure 4.11.
24
Studio Setup Icon
Figure 4.11: Studio Setup Icons—Four Studio 4's

RENAMING STUDIO 4'S

You can rename one or more of your
Studio 4's in the Studio Setup document.
To do so, simply click the name to the
right of the Studio 4 icon and type in a
new name. The name you choose appears
in place of the default Studio 4 name any-
where that the interface name appears.
In the following example, Figure 4.12
shows a Studio Setup document with the
default Studio 4 name and a pop-up menu
listing the Studio 4 as a selection.
Figure 4.13 shows a Studio Setup docu-
ment with a custom Studio 4 name and
the same pop-up menu listing the Studio 4
as a selection.
Mac <-> Studio 4 Connection
PORT B PORT A
Studio 4
B A
THRU THRU
PORT B PORT A
Studio 4
B A
THRU THRU
Macintosh
PORT B PORT A
Studio 4
B A
THRU THRU
PORT B PORT A
Studio 4
B A
THRU THRU
Opcode Systems, Inc.
Studio Setup Icon
