PART 2: Using The Studio 4

WINDOW OVERVIEW

Choose MIDI Routing, Channelizing
and Muting from the Studio 4 menu to
open the Routing, Channelizing and
Muting window.

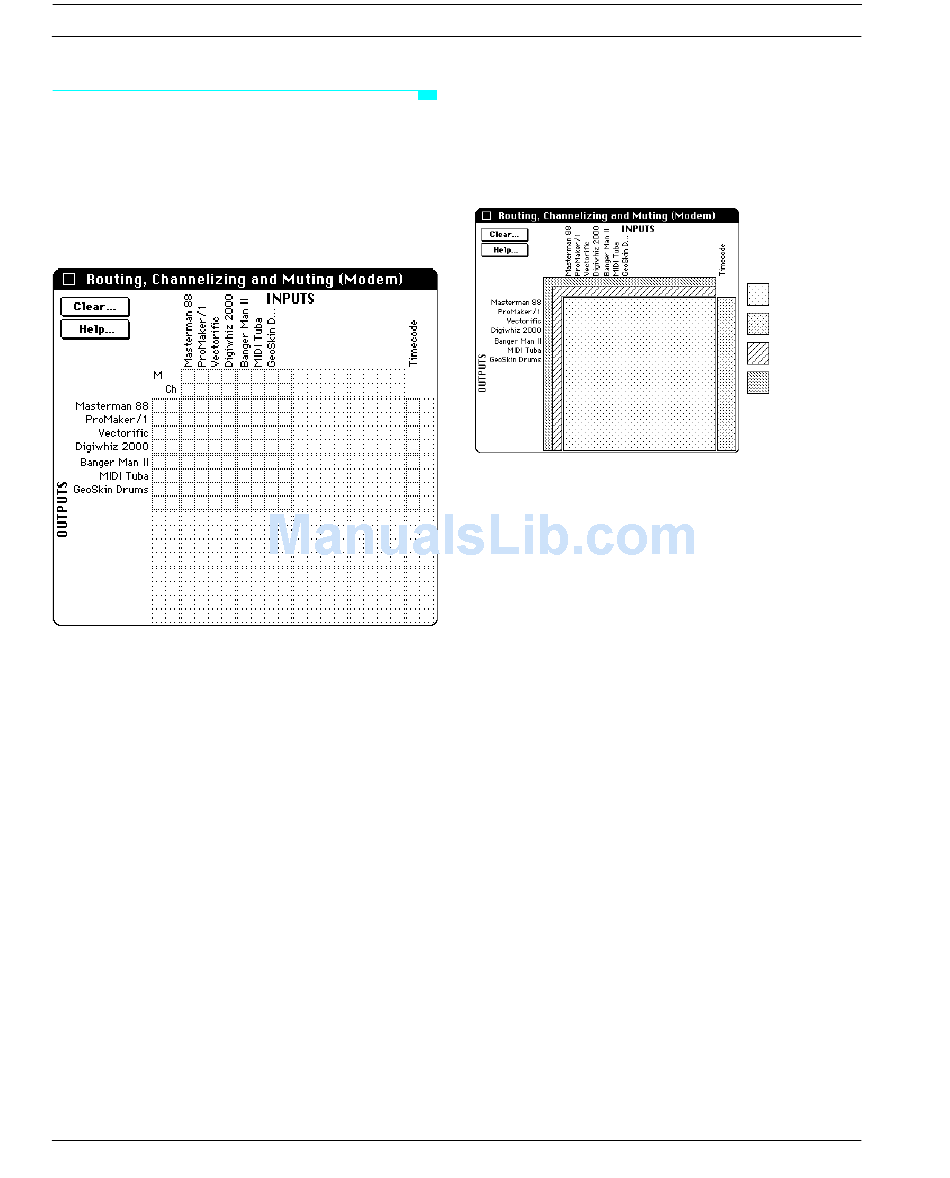

Figure 7.1: Routing, Channelizing and Muting
Window
When you open an RCM window it
reflects the current Routing, Channelizing
and Muting setup of the Studio 4.
40
Four separate areas make up the Routing,
Channelizing and Muting grid. These
areas are illustrated in Figure 7.2 and are
discussed later in this chapter.
Figure 7.2: RCM Window Block Diagram
When you edit this window, the changes
are sent immediately to the Studio 4. The
Studio 4 always reflects the current setup
of this window. The Studio 4 remembers
this setup when you close the RCM
window (or you make another window
active). If you want your Studio 4 to
remember the most recent MIDI Routing,
Channelizing and Muting configuration,
turn it off only after closing or de-activat-
ing the RCM window.
RCM Window with a Single
Studio 4
Notice that the MIDI Routing Area is a
sixteen row by sixteen column grid. Each
column represents one of sixteen Studio 4
MIDI inputs and each row represents one
of sixteen Studio 4 MIDI outputs. How-
ever, a single Studio 4 has only eight
MIDI inputs and eight MIDI outputs. If
your Studio Setup document contains
MIDI Routing
Area
Timecode Routing
Area
Channelizing
Area
Muting
Area
