All devices (including those connected to
the standard interface) appear in the
patch edit window's pop-up menus.
If you use OMS patches, you can access
devices connected to the standard inter-
face just as if they were connected
directly to the Studio 4.
NETWORKING A STUDIO 4 AND
A STUDIO 3

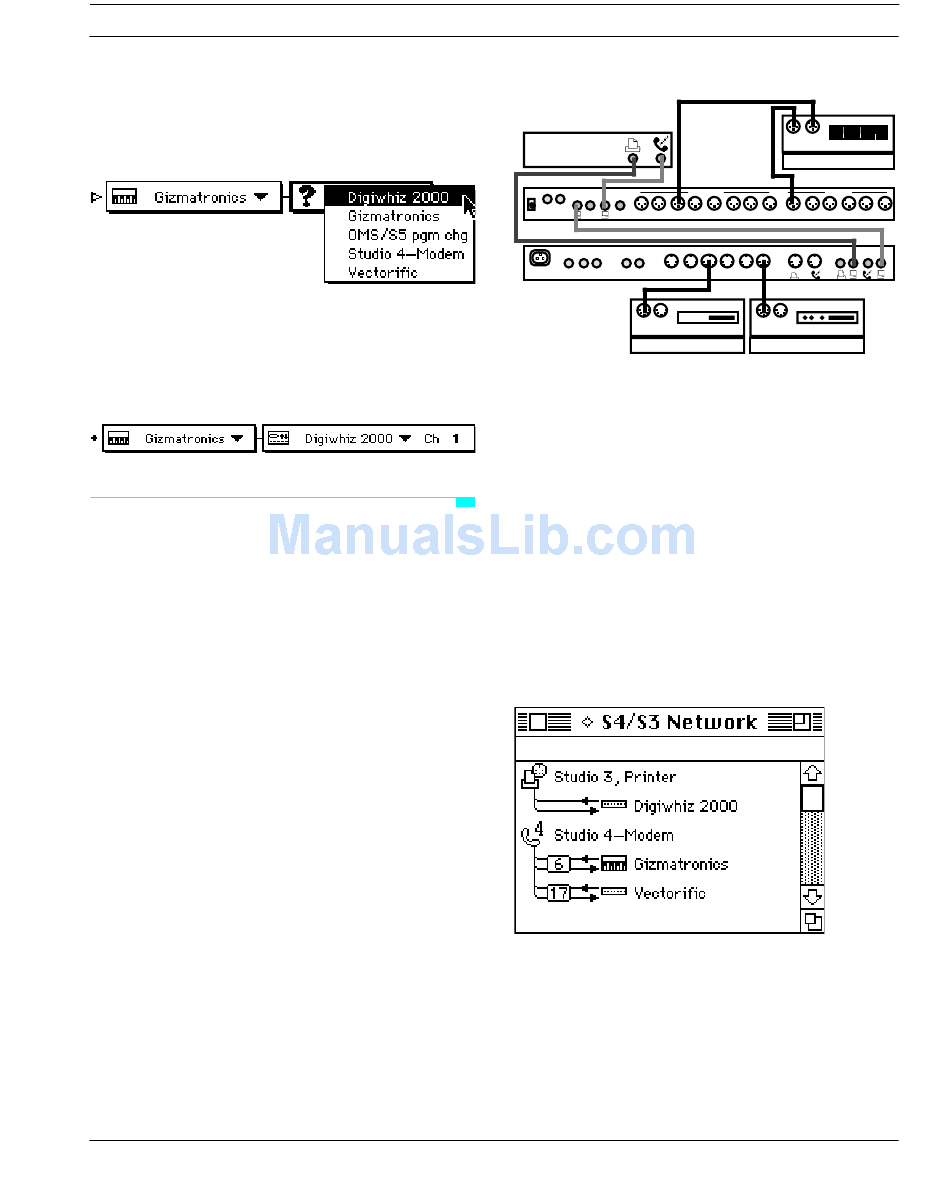

If you're networking a Studio 4 and a
Studio 3, read the first part of this
appendix.
You can connect your Studio 3's Modem
port to the Studio 4's "B" port and achieve
the results discussed in the first part of
this appendix. You may, however, gain
additional control by connecting the
Studio 3 Printer port back to the free Mac-
intosh serial port as shown here.
Studio 4 Manual
MACINTOSH
SMPTE
PORT B
PORT A
IN
OUT
9VDC
B
A
8
7
6
THRU
THRU
16
15
14
FOOTSWITCHES
TAPE / AUDIO
FS2
FS1
FC1
OUT
IN
6
5
IN OUT
Digiwhiz 2000
When you create a new Studio Setup doc-
ument, you'll see one icon for the Studio 4
and another for the Studio 3's Printer
port. The Studio 3's modem port is repre-
sented by Studio 4 cable 17.
The illustration below shows the Studio
Setup document for the studio connec-
tions shown above (assuming that
Studio 3 MIDI outputs are configured in
their default mode—that is, outputs 1-3
assigned to the Modem and outputs 4-6
assigned to the Printer).
The biggest advantage of connecting the
Studio 3's Printer port back to the Macin-
tosh is that you can configure the
Studio 3's six outputs to use the Modem
PART 3: Appendices
IN OUT
Gizmatronics
MIDI OUT
MIDI IN
5
4
3
2
1
6
5
4
3
2
13
12
11
10
9
14
13
12
11
10
MIDI OUT
MIDI IN
PRINTER
MODEM
PORT
PORT
4
3
2
1
IN OUT
Vectorific
1
9
77
