Electrical And Mechanical Specifications - Cypress DataBender CVX-1300 Operation Manual

Physical
Temp
Humidity
Power
Data I/O
2.8"
1.4"
This complies with part 15 of the FCC rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Cypress Computer Systems, Inc. ⌖ Lapeer, MI 48446 ⌖
Electrical and Mechanical Specifications
Aluminum enclosure
Size 3.5" x 2.75" x .75"
Storage (-55°C to +150°C)
Operating (-40°C to +80°C
95% (non-condensing)
Input
Output
Interface
*
See notes on following page for temperature and power ratings
DataBender CVX-1300

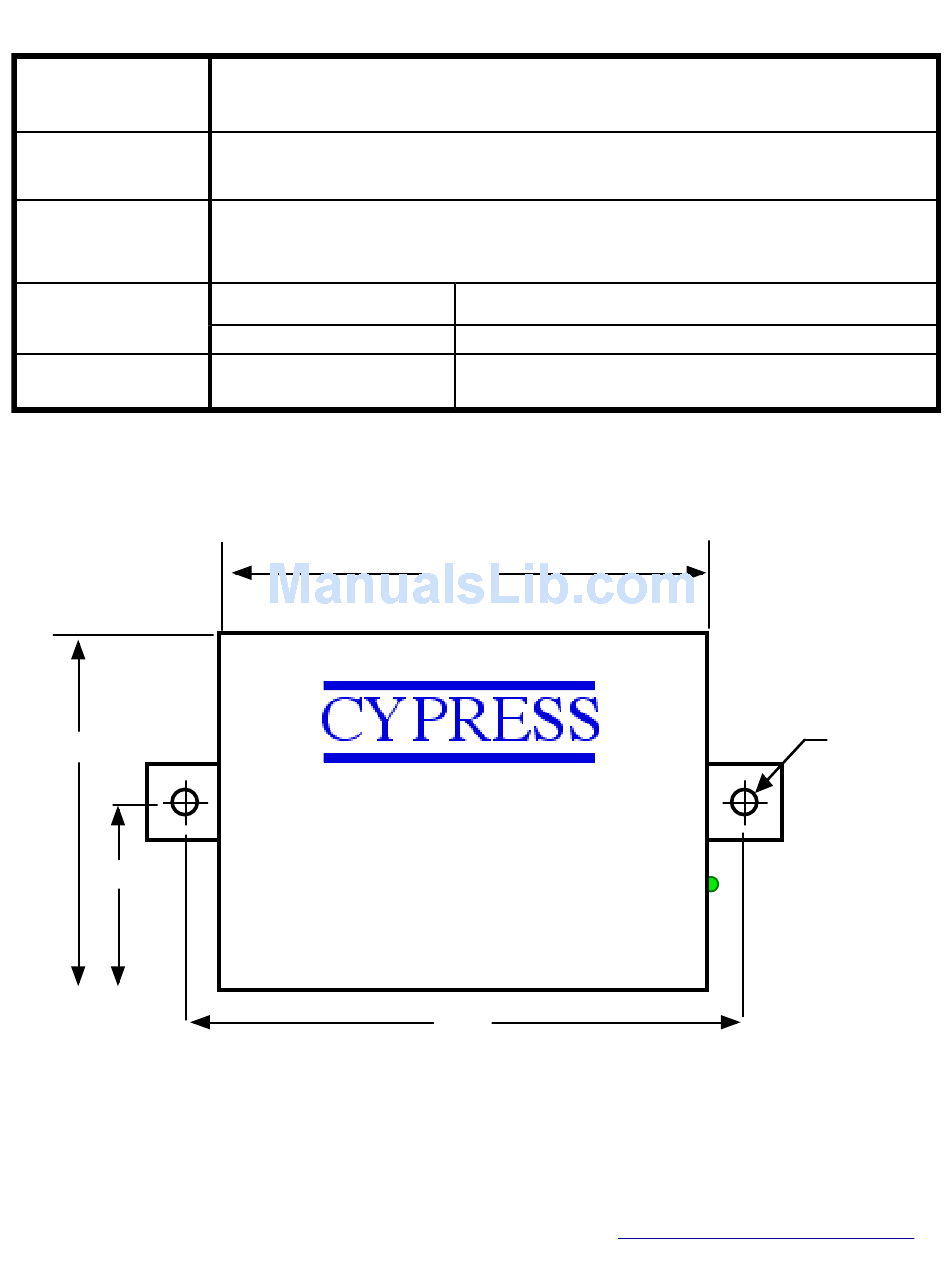

External Dimensions and Mounting Holes
© 2011 Cypress Computer Systems Inc.
*
)
Unreg Input 8 to 16VDC
+5vDC @ 100 ma
Reader - Wiegand, Strobed (Clock & Data), F/2F
LED - 0 to 30v
3.3"
Unit Height = 0.75"
3.65"
*
@ 200ma Max
www.cypresscomputer.com
ø 0.15"
