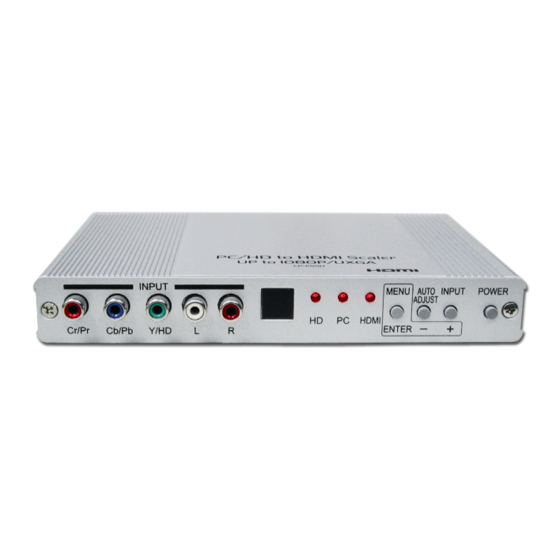

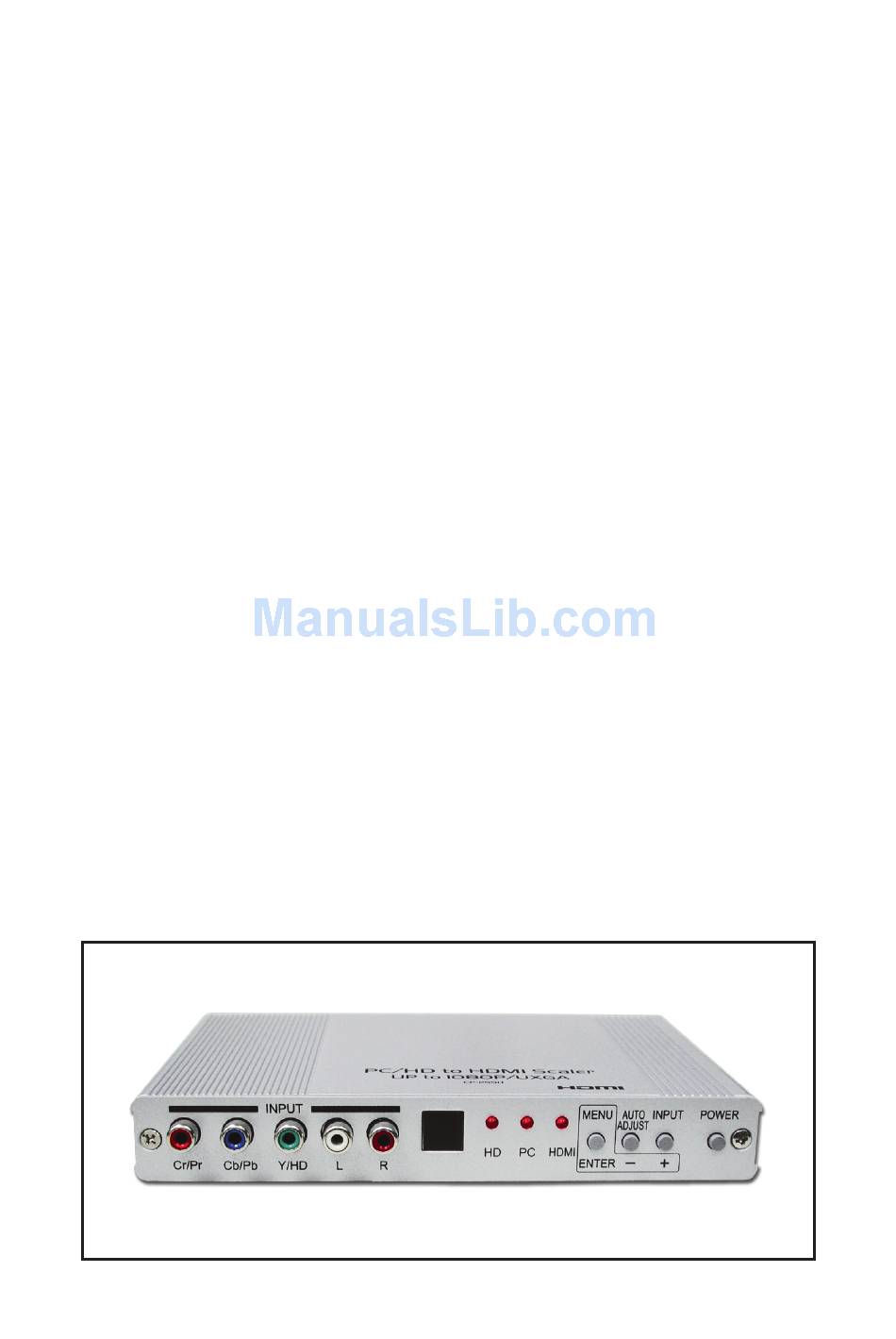

  • Page 1 PC/HD to 1080p HDMI Scaler Box Operation Manual CP-255H...

  • Page 2: Table Of Contents

    Table of contents (1).Introduction..................P1 (2).Features....................P1 (3).What's included................... P1 (4).Operation Controls and Functions............ P2 Front Panel................... P2 Rear Panel................... P2 Remote Control and functions............P3 (5).Installation.................... P4 Input Connection................P4 Output Connection................P5 (6).OSD Operation..................P6 Specifications..................P8...

  • Page 3: Introduction

    (480i up to 1080p) and HDMI (up to WUXGA) and scale them up to HDMI output (1080p/WUXGA). 2. The input to the CP-255H is analog PC or HDTV signal in the format of either RGBHV, YPbPr, (YCbCr) or digital HDMI.

  • Page 4: Operation Controls And Functions

    HDMI b. Auto Tune ("-"): Press the "-" button to carry out picture auto adjust for analog inputs (component or PC). The CP-255H will fine tune the position (centering) and color of the output picture. c. When in the OSD menu mode: Press the +, - button to move up or down the highlight bar to your desired parameter.

  • Page 5: Remote Control And Functions

    6. Power jack: Connect to the 5V 2.6A DC power adaptor. Remote Control and functions: 1. Power: Press the button once to power on the CP-255H. Press again to enter standby mode. 2. Input: Press the button repeatedly to toggle through various input sources as follows.

  • Page 6: Installation

    (5).Installation Input Connection INPUT MENU AUTO INPUT POWER ADJUST HDMI ENTER - Cr/Pr Cb/Pb Y/HD Component in Stereo in audio Component out DVD or Set Top Box Audio in for DVI Source HDMI OUT HDMI IN PC IN DC 5V AUDIO IN AUDIO IN HDMI...

  • Page 7: Output Connection

    HDMI IN PC IN DC 5V AUDIO IN AUDIO IN HDMI HDMI cable cable HDMI HDMI to DVI connector adaptor HDMI TV DVI TV The CP-255H can output a variety of PC, SD and HD resolutions in HDMI digital format.

  • Page 8: Osd Operation

    - When connecting to a HDMI display use a certified HDMI cable to connect the HDMI output of CP-255H to the HDMI input of your HDMI TV. - When connecting to a DVI display use a HDMI cable together with a HDMI to DVI connector adaptor to connect to the DVI input of your DVI display.
  • Page 9 Cool: Cool color tone makes white bluish. Value of Normal Setting 6.3 Output: The CP-255H can output a wide variety of PC and HD resolutions. Refer to product specifications. 6.4 OSD Adjust: H.Position: Adjust the horizontal position of the OSD menu graphic.

  • Page 10: Specifications

    - YCbCr/YPbPr x 1 via 3 RCA jack with stereo L/R via 2 RCA jack. - PC RGB x 1 via 15 pin D-sub with stereo L/R via 3.5mm phone jack. - HDMI (CP-255H)x1; Aux stereo L/R 3.5mm phone jack x1 (for DVI input). Output connector:...
