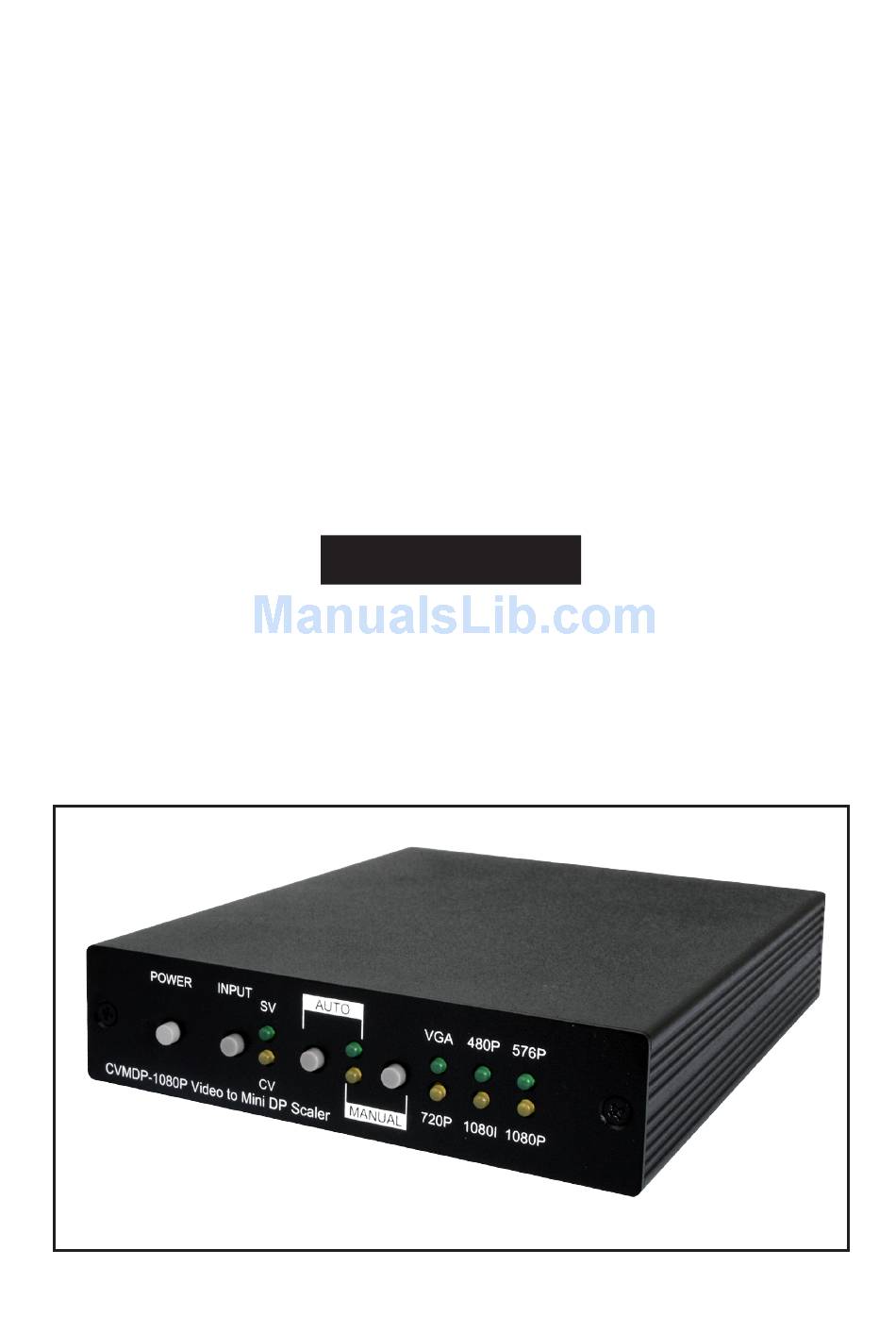

- Page 1 CVMDP-1080P CV/SV to Full HD Mini DisplayPort Scaler Operation Manual CVMDP-1080P...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel ................Rear Panel …………………………………………..……..… Connection and Installation …….…………………..…..…..…... Output Resolution Chart…………………………………..……..…... -
Page 5: Introduction
1. Introduction This scaler box is designed to display your Composite video/S-Video images on the Mini DisplayPort with better viewing resolutions. It can upscale any Composite video/S-video source into Mini-Display port output with a wide range of resolutions. Additionally, this device can also output high quality audio allowing everyone to enjoy enriching HD images and high quality sound. -
Page 6: Specifications
6. Specifications Input Ports Composite video/S-Video, Audio R/L RCA jack Output Ports Mini DisplayPort Output Resolution VGA, 480p, 576p, 720p,1080i and 1080p@50/60 Input signal levels Video at 1 Vp-p, 75 Ω Y: 1.0 Vp-p(75 Ω ) C: 0.286 Vp-p(75 Ω ) Audio R/L: 0.5Vrms Video System NTSC, PAL... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel POWER button: Press this button once to power on the unit, press again ① to power off. INPUT selection bottom - Yellow LED turns on when composite video is selected. ②... -
Page 8: Rear Panel
7.2 Rear Panel MINI DO output- This slot connects with a display monitor that ① incorporates a mini DisplayPort and includes connection cables. Note: 1. This scaler does not have an overscan function, however it is adjustable through a TV. 2. -
Page 9: Connection And Installation
8. Connection and Installation CV/SV Mini DP DVD / Cable Cable Vido player LCD TV / HD MONITOR i Pod/itoch 9. Output Resolution Chart Mini DisplayPort output resolution 640 X 480 60HZ 480P 720 X 480 60HZ 576P 720 X 576 50HZ 720P 1280 X 720... - Page 10 Acronyms Acronym Complete Term Composite video EDID Extended Display Identification Data S-Video HDTV High-Definition Television NTSC National Television System Committee Phase Alternating Line High Quality Image enhancer Three-Dimensional...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091109 MPM-CVMDP1080P...
