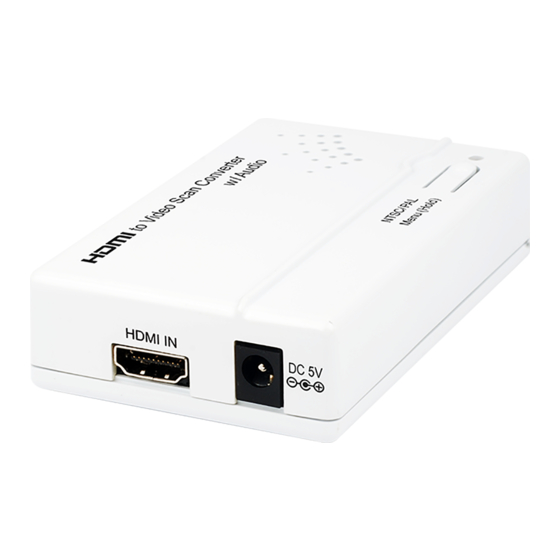

- Page 1 CV-401H HDMI to Video Scan Converter Operation Manual CV-401H...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Top Panel ..............3 Left Panel ..............3 Right Panel .............. -
Page 5: Introduction
1. Introduction The HDMI to Video Scan Converter is designed to convert digital signal from HDMI source to analog signal of NTSC or PAL system, with L/R stereo audio. on movie in a standard resolutions of 480i or 576i on DVR or VCR machine. The device is HDMI 1.2 &... -
Page 6: Specifications
6. Specifications Input Port 1 x HDMI, Output Port 1 x CVBS, 1 x L/R RCA Jack HDMI Input Audio LPCM 2Ch, 48kHz Output Video NTSC/PAL Output Audio Stereo L/R ESD Protection Human body model: ± 8kV (air-gap discharge) ± 6kV (contact discharge) Power Supply 5V DC / 1A linear power adaptor (US/EU standards, CE/FCC/UL certified) -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel . NTSC/PAL MENU (Hold): Press this button to bring up the OSD which will display the input timing and output TV system information. While the OSD is still displaying press the button again to switch output TV system from NTSC to PAL or from PAL to NTSC. -
Page 8: Right Panel
7.3 Right Panel . OUTPUT L/R: These slots are to connect with active speaker or the TV/ monitor with input L/R jack with RCA cable for output audio sound. . OUPUT VIDEO: This slot is to connect with display TV or monitor with RCA cable for output image display. - Page 9 Aspect Adjustment: There are total of 5 different adjustments under Aspect and they are Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & 16:9. Full Screen: To allow the image to fill out the screen of the TV. Letterbox: To fit the output image closer to the input source, compressed the upper and lower image for 16:9's content to 4:3's TV.
-
Page 10: Connection And Installation
9. Connection and Installation Camera... - Page 11 Acronyms Acronym Complete Term Cathode Ray Tube HDMI High-Definition Multimedia Interface Liquid Crystal Display NTSC National Television System Committee Phase Alternating Line...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CV401H...
