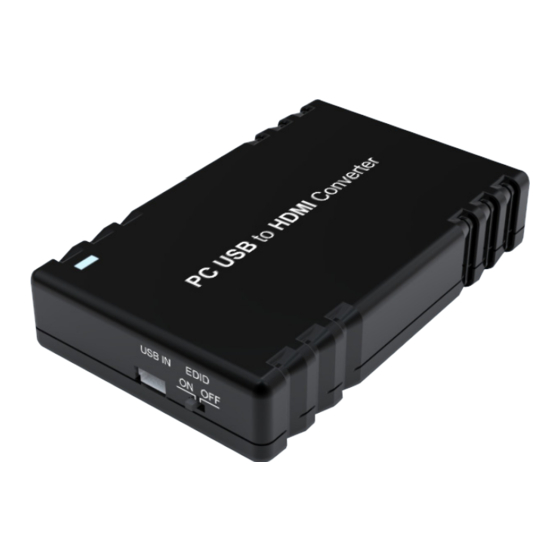

- Page 1 CDL-125 USB to HDMI Converter Operation Manual CDL-125...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Trademark Acknowledgments All products or service names mentioned in this document may be trademarks of the companies with which they are associated. Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: ... -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Installation ..................3 7. Using the DisplayLink Manager ..........4 7.1 Using the DisplayLink Manager ........4 7.2 Using More DisplayLink Manager ........ -
Page 5: Introduction
1. Introduction This USB to HDMI converter enables you to add an additional monitor to a laptop or desktop through the use of USB 2.0 ports, freeing you from the complicated process of installing VGA cards. With this device, you can extend your display across two screens, letting you to surf the web on one and make a spreadsheet/presentation/ use a word processor on the other. -
Page 6: Features
5. Features • Quick and easy installation • Connects up to 6 (Windows OS)/ 4 (Mac OS) displays to one PC through USB 2.0 ports. • Supports HDMI output. • Supported screen resolution between VGA and 1440 x 900 bits (at 60HZ). •... -
Page 7: Installation
6. Installation Product overview (Picture) PC/NB CDL-125 Monitor Step 1 : Insert the provided driver CD into your CD-ROM drive, then click the Setup.exe file and select your language to begin the installation. Step 2: Connect the device to a USB 2.0 port by using the provided USB cable. -
Page 8: Using The Displaylink Manager
7. DisplayLink Manager 7.1 Using the DisplayLink Manager After the driver is installed, a utility (DisplayLink Manager) will automatically appear in the system tray. The utility allows you to quickly change the settings and resolution for DisplayLink Manager. Right clicking the icon will bring out the context menu. Screen Resolution: Select the screen resolution (available only in ... - Page 9 Screen Rotation: Rotate the screen on the additional display by 90, 180 or 270 degrees. Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display.
- Page 10 Extend: Set the DisplayLink Manager to Extended mode. Main Monitor: Use to select which display will be your Main Monitor. Notebook Monitor Off: Select this to turn off your Notebooks display. ...
- Page 11 Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. Off: Disable the DisplayLink Manager. Advanced: Directly access the Display Properties. You can also adjust the resolution, color quality, position and refresh rate via the Display Properties.
-
Page 12: Using More Displaylink Manager
7.2 Using More DisplayLink Manager You don ’ t need to install the driver again as long as the previous driver installation process was completed in advance. It will automatically define the ID of the new DisplayLink Manager. All the DisplayLink Managers will be listed in the Display Properties or the display manager menu. NOTE: When connecting more DisplayLink Managers to a computer, a system with higher CPU performance is recommended. -
Page 13: Uninstall The Device Driver
Automatic Update Click the Updates → Configure… , the Updates Options window will appear as shown below. You can now customize the update method and the frequency at which the system checks for updates. 8. Uninstall the Device Driver Follow the steps below to uninstall the driver. Step 1: Open the Control Panel: Start → Control Panel → Add or Remove Programs. - Page 14 Step 3: Click Yes to confirm the removal. Step 4: Click Yes to restart your computer.
-
Page 15: Specifications
9. Specifications Video input USB 2.0 Video output HDMI Window XP/7, Vista 32/64, Mac OS X Tiger 10.4.11 or Operating System Support Mac OS X Leopord 10.5.5 Dimensions (mm) 100 x 65 x 20 Wight (g) Chassis Material Plastic Color Black Operating Temperature 10 °... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091127 MPM-CDL125...
