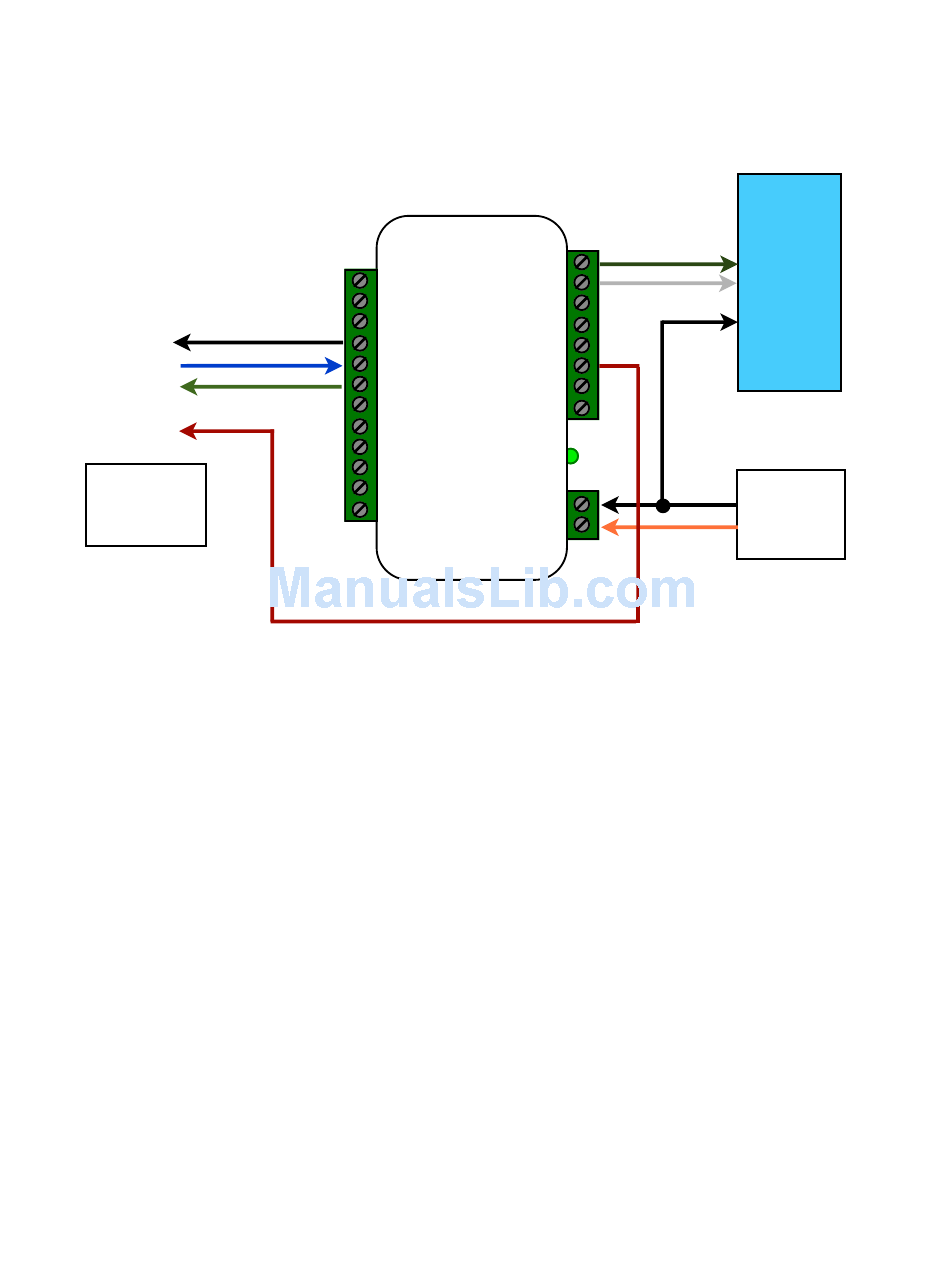

Wiring Diagram #2 Serial to Wiegand
DB9-5
DB9-2
DB9-3
DB9-6
Connections
to Serial
Device
Data0 Out
Data1 Out
Ground
RS232 Input
+5VDC Out
RS232 Output
Data Bender®
Ground
+8 to +16 VDC In
Data0
Data1
Access
Ground
Control
Panel
(-)
DC
Power
(+)
Supply
