Zapi COMBI AC1 User Manual page 60

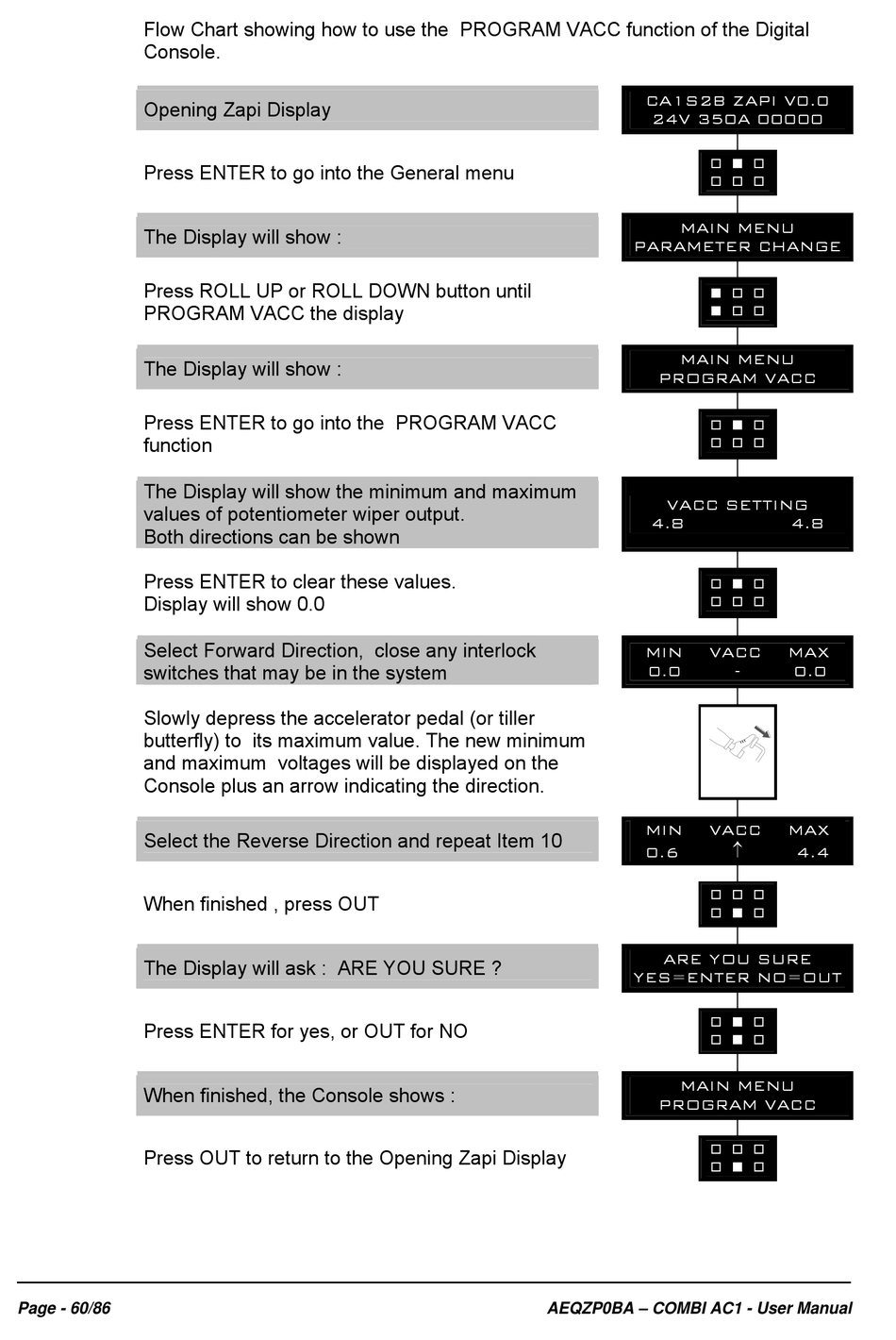

Flow Chart showing how to use the PROGRAM VACC function of the Digital
Console.
Opening Zapi Display
Press ENTER to go into the General menu
The Display will show :
Press ROLL UP or ROLL DOWN button until
PROGRAM VACC the display
The Display will show :
Press ENTER to go into the PROGRAM VACC
function
The Display will show the minimum and maximum
values of potentiometer wiper output.
Both directions can be shown
Press ENTER to clear these values.
Display will show 0.0
Select Forward Direction, close any interlock
switches that may be in the system
Slowly depress the accelerator pedal (or tiller
butterfly) to its maximum value. The new minimum
and maximum voltages will be displayed on the
Console plus an arrow indicating the direction.
Select the Reverse Direction and repeat Item 10
When finished , press OUT
The Display will ask : ARE YOU SURE ?
Press ENTER for yes, or OUT for NO
When finished, the Console shows :
Press OUT to return to the Opening Zapi Display
Page - 60/86
