6.2 Description of power connections

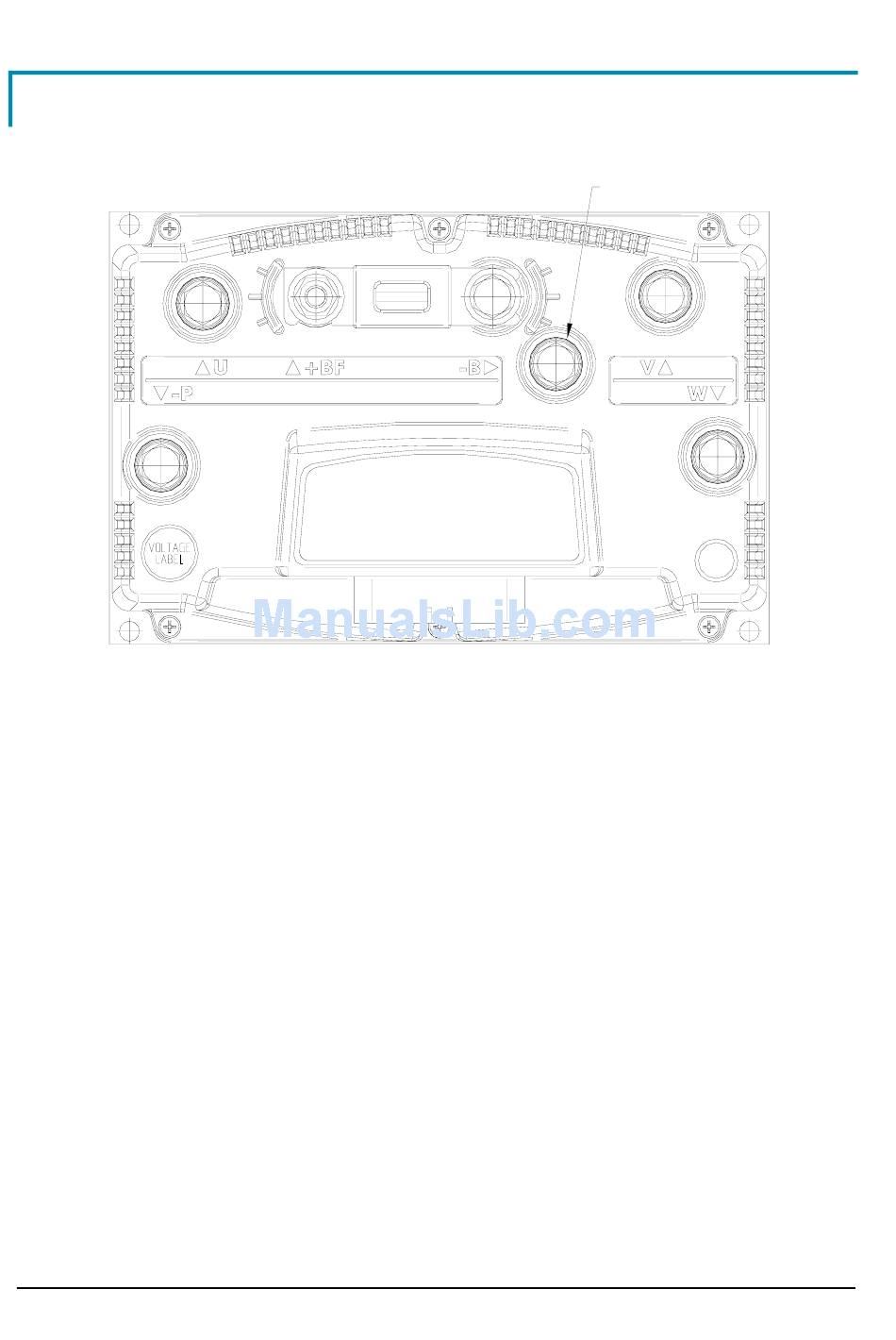

View of the power bars:
-P
-B
+B
+BF
- P
U; V; W
Page - 28/86
U +BF +B
Negative of the battery.
Positive of the battery.
Positive of the battery, before the fuse.
Output of the Pump Motor.
Connection bars of the three motor phases; follow this
sequence and the indication on the motor.
-B
AEQZP0BA – COMBI AC1 - User Manual
V
W
