Config Menu "Adjustments" Functions List - Zapi COMBI AC1 User Manual

-
-
-
7) SET MOTOR TEMPERATURE
It can be set:
-
-
-
8) INVERSION MODE
ON/OFF: This parameter sets the logic of the Quick Inversion input. If set =
ON, the Quick Inversion switch is Normally Closed (function active when
switch opens). If set = OFF, the Quick Inversion switch is Normally Open
(function active when switch closes).

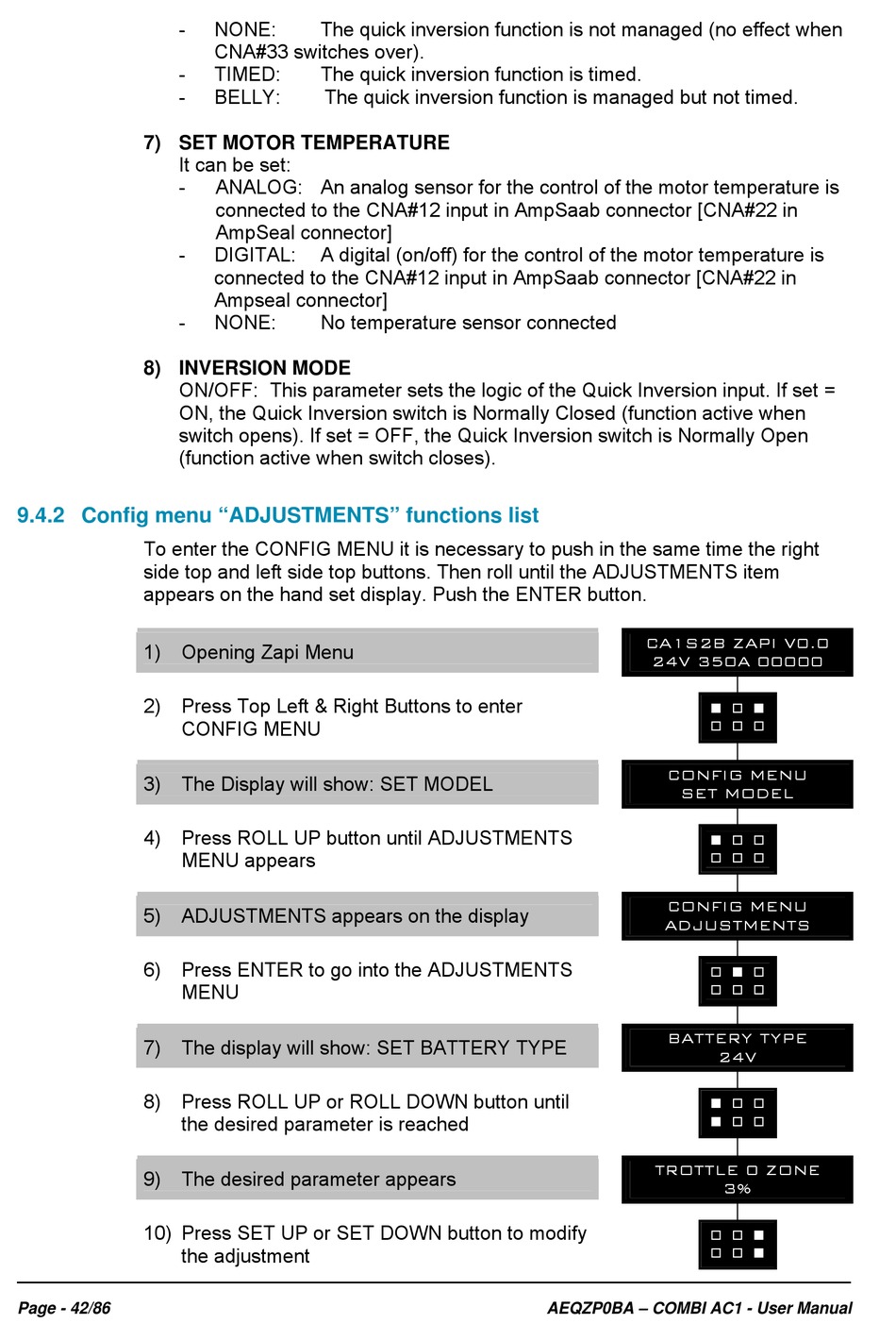

9.4.2 Config menu "ADJUSTMENTS" functions list

To enter the CONFIG MENU it is necessary to push in the same time the right
side top and left side top buttons. Then roll until the ADJUSTMENTS item
appears on the hand set display. Push the ENTER button.
1) Opening Zapi Menu
2) Press Top Left & Right Buttons to enter
CONFIG MENU
3) The Display will show: SET MODEL
4) Press ROLL UP button until ADJUSTMENTS
MENU appears
5) ADJUSTMENTS appears on the display
6) Press ENTER to go into the ADJUSTMENTS
MENU
7) The display will show: SET BATTERY TYPE
8) Press ROLL UP or ROLL DOWN button until
the desired parameter is reached
9) The desired parameter appears
10) Press SET UP or SET DOWN button to modify
the adjustment
Page - 42/86
NONE: The quick inversion function is not managed (no effect when
CNA#33 switches over).
TIMED: The quick inversion function is timed.
BELLY: The quick inversion function is managed but not timed.
ANALOG: An analog sensor for the control of the motor temperature is
connected to the CNA#12 input in AmpSaab connector [CNA#22 in
AmpSeal connector]
DIGITAL: A digital (on/off) for the control of the motor temperature is
connected to the CNA#12 input in AmpSaab connector [CNA#22 in
Ampseal connector]
NONE: No temperature sensor connected
CA1S2B ZAPI V0.0
24V 350A 00000
% ' %
' ' '
CONFIG MENU
SET MODEL
% ' '
' ' '
CONFIG MENU
ADJUSTMENTS
' % '
' ' '
BATTERY TYPE
% ' '
% ' '
TROTTLE 0 ZONE
' ' %
' ' %
AEQZP0BA – COMBI AC1 - User Manual
24V
3%
