This rest of this guide shows the simple procedures required to
operate and administer the system. For information on installing
the i-on16 please read i-on16 Installation and Programming
Guide. Each of the radio peripherals also have their own guides.

Controls and Displays

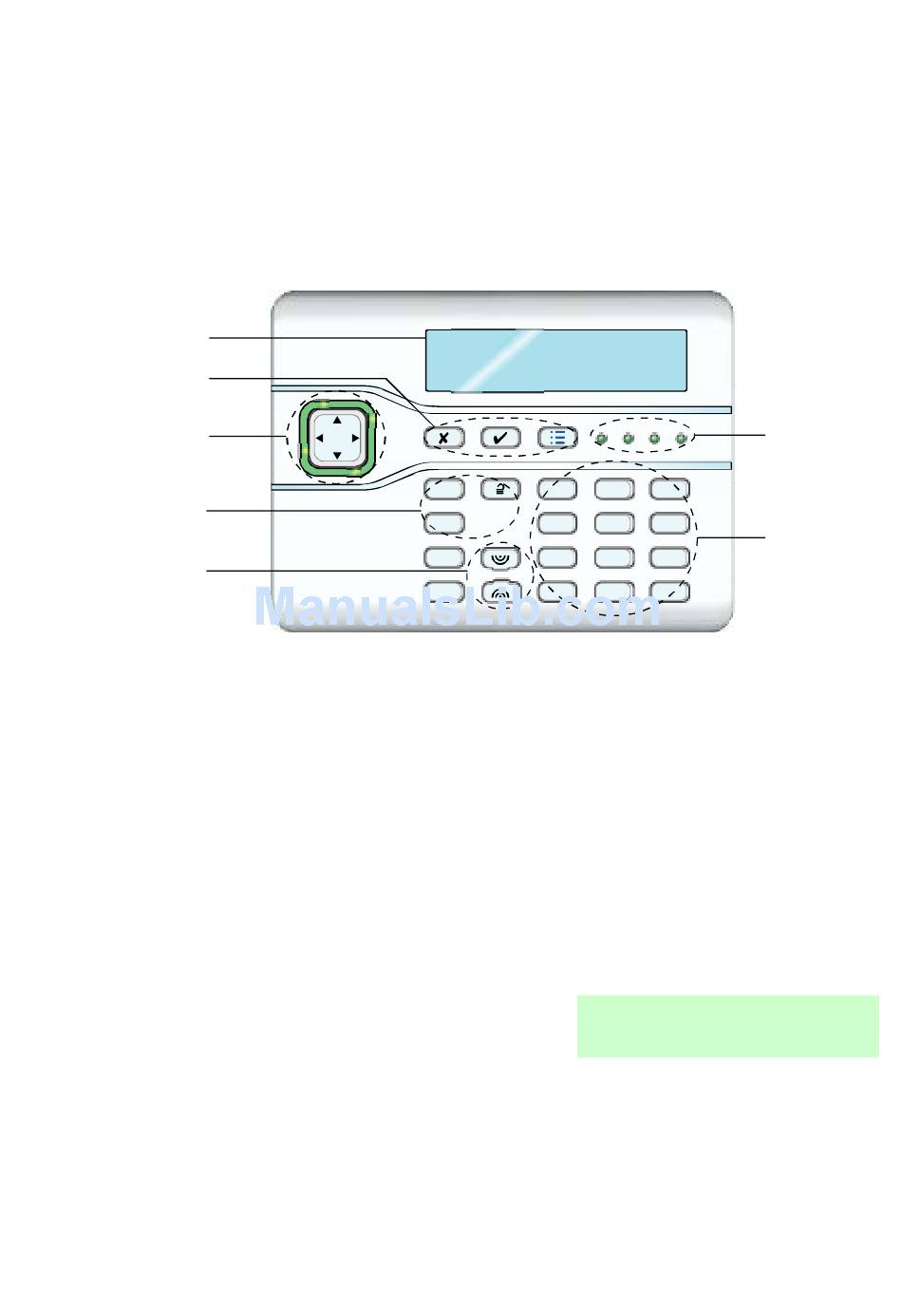

Figure 2 shows the controls and displays available on the keypad.
1
2
3
4
5
1. LCD display .
2. Programming keys.
3. Navigation key
4. Setting and unsetting keys.

Displays

The LCD display shows messages and prompts to help guide you
through setting, unsetting, resetting and programming the
system.
When the system is idle (either while
set or unset) the display shows the
"standby screen", comprising the time
and date:
(The top line of the display may show the installer's name
instead of "i-on16".)
A
B
C
D
5. Panic Alarm (PA) keys.
6. Alpha/numeric keys.
7. Set/Unset status LEDs.
Figure 2. Controls and Displays
1 2 abc 3 def
4 ghi 5 jkl 6 mno
7 pqrs 8 tuv 9 wxyz
* 0 #
I-ON16
11:15 20/3/08
Introduction
7
6
