Keypad Controls and Displays
1
2
3
4
5

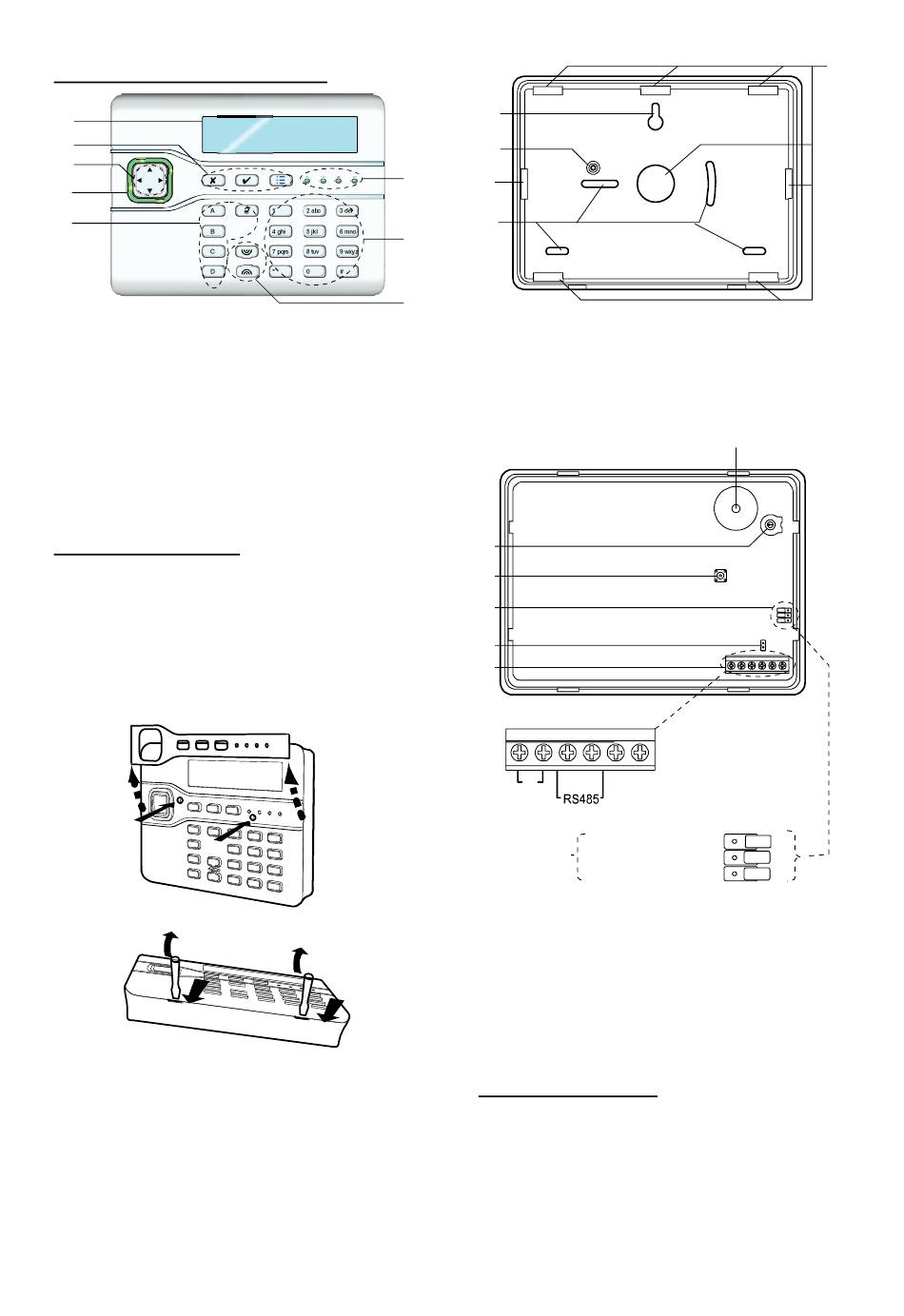

Figure 4 Controls and Displays
1. LCD display (2 x 20 characters).
2. Programming keys.
3. Navigation keys
4. Alert LEDs
5. Setting and unsetting keys.
6. Panic Alarm (PA) keys.
7. Number/text keys.
8. Set/Unset LEDs.
Opening the Keypad
Note: For EN50131-3:2009, 8.7 the keypad
is a type B ACE, fixed.
To open the keypad first gently prise off the
trim on the front and remove the two
screws. Next, carefully lever the front of the
keypad (containing the pcb and display)
away from the keypad rear housing.
1
2
Figure 5 Opening the Keypad
Page 6
1
2
8
3
4
7
6
Figure 6 Keypad Rear Housing
1. Central keyhole.
2. Rear tamper shroud.
3. Cable entry.
4. Fixing holes.
2
3
4
5
6
1. Sounder.
4
2. Sounder volume control.
3. Tamper switch.
3
4. Jumpers for LED function:
5. RS485 termination jumper
6. Connector for control unit (note that the ET
terminals are inactive).
Opening Expanders
To open any of the expander cases undo
the single screw and lift the top of the lid
away from the case.
Figures 8 and 9 show the interior of the
wired and radio expanders.
ET
B
A 12V 0 V
ABCD-ON
4
BACKLIGHT
BRIGHT
Figure 7 Keypad PCB
i-on30EX
3
1
ON
