SPX-1300
Operations Manual
Suprex® Reader Extender

Advertisement

loading
Need help?

Need help?

Do you have a question about the Suprex SPX-1300 and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress Suprex SPX-1300

Summary of Contents for Cypress Suprex SPX-1300

  • Page 1
 SPX-1300 Operations Manual Suprex® Reader Extender...
  • Page 2 " " Electrical and Mechanical Specifications " " " Physical SPX-1300 Aluminum Enclosure 3.5" x 2.75" x .75" " Storage(-55˚C to + 150˚C)" " Temp Operating(-40˚C to +80˚C) " " Humidity 95% (non-condensing) " " " Input Unreg Input 8 to 16 VDC @ 200mA Max "...

  • Page 3: Remote Unit

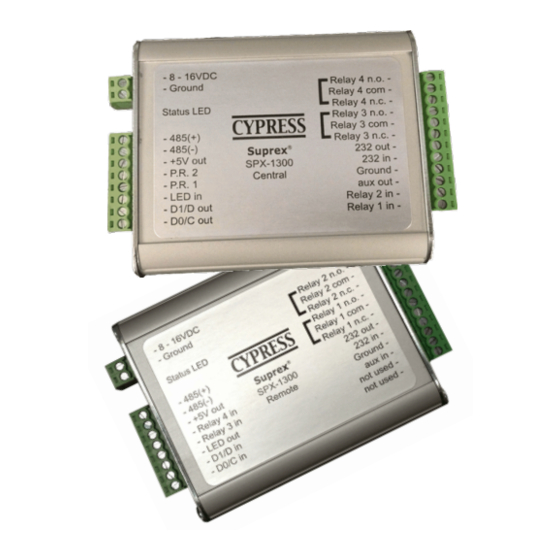

    " " External connections and DIP Switch Settings " " " 2-8 to 16 VDC In" " 1-Ground 12-RLY4 N.O." " 11-RLY4 Com" " 10-RLY4 N.C." Diagnostic LED 9-RLY3 N.O." " 8-RLY3 Com" 8-485(+)" " 7-RLY3 N.C." " 7-485(-) " 6-RS232 Out"...

  • Page 4: Ambient Temperature

    " " " " Electrical and Environmental Specifications " " " " " " " " " " Ambient Temperature " (Degrees Celsius) " " " " " " " " " " " Supply Voltage " Temperature/Voltage de-rating curve The SPX-1300 units should be operated with a filtered 12 Volt nominal DC supply.
  • Page 5 " " Troubleshooting - Diagnostic Indicators " " " When the Suprex units are operating correctly and have a valid communication channel between" " the Remote and Central units the Diagnostic indicators on each unit will flash green rapidly " "...

  • Page 6: Central Unit

    " " Suprex Operation and Initial Setup " " Actual connections will differ based on the type of format, features utilized, and equipment interface." " The following diagrams are an example of a typical installation using the Suprex 1300 and a Wiegand format "...
  • Page 7 " " Suprex Operation and Initial Setup " Format setup and Remote Side Basic Reader Connections " 2. Remove power from the units and set DIP switches if necessary. The units are set for Wiegand format data as " the default setting from the factory. If a Wiegand format reader is being used, it should not be necessary to change "...
  • Page 8 " " Suprex Operation and Initial Setup " Central Side Basic Panel Connections " " 4. Connect the Central unit to the Access control panel. Power can be supplied by either the Access " " Control Panel or an External Power supply. A ground connection must be provided to the Suprex unit in either case. "...
  • Page 9 " " Suprex Operation and Initial Setup " Central Side Basic Panel Connections " " 5. To activate the relay on the Remote unit connect as shown below. These connections can be used to allow the Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware. Refer to following pages in this "...
  • Page 10 " " Suprex Operation and Initial Setup " I/O Controls " " 6. The Cypress SPX-1300 provides additional data channels to support access control hardware such as door " strikes, tamper alarms, request to exit status, etc. These signals are sent to and from the Remote and Central units "...
  • Page 11 " " Suprex Operation and Initial Setup " I/O Controls " " " " " " " 2-8 to 16 VDC In" 1-Ground " 12-RLY4 N.O." 11-RLY4 Com" " 10-RLY4 N.C." " 9-RLY3 N.O." " 8-RLY3 Com" 8-485(+)" " 7-RLY3 N.C." "...
  • Page 12 " " Suprex Operation and Initial Setup " " I/O Controls " " " " " " 2-8 to 16 VDC In" " 1-Ground 12-RLY4 N.O." " 11-RLY4 Com" " 10-RLY4 N.C." 9-RLY3 N.O." " 8-RLY3 Com" " 8-485(+)" 7-RLY3 N.C." "...
  • Page 13 " " Suprex Operation and Initial Setup " I/O Controls " " " " " " " 2-8 to 16 VDC In" " 1-Ground 12-RLY4 N.O." " 11-RLY4 Com" 10-RLY4 N.C." " 9-RLY3 N.O." " 8-RLY3 Com" " 8-485(+)" 7-RLY3 N.C." "...
  • Page 14 " " Suprex Operation and Initial Setup " I/O Controls " " " " " " " 2-8 to 16 VDC In" 1-Ground " 12-RLY4 N.O." 11-RLY4 Com" " Output 10-RLY4 N.C." " 9-RLY3 N.O." " 8-RLY3 Com" 8-485(+)" " 7-RLY3 N.C."...
  • Page 15 " " Suprex Operation and Initial Setup " " I/O Controls " " " " " " Output 2-8 to 16 VDC In" " 1-Ground 12-RLY4 N.O." " 11-RLY4 Com" " 10-RLY4 N.C." " 9-RLY3 N.O." 8-RLY3 Com" " 8-485(+)" 7-RLY3 N.C."...

  • Page 16: Aux Input And Output

    " " Suprex Operation and Initial Setup " I/O Controls " " " " " " " 2-8 to 16 VDC In" " 1-Ground 12-RLY4 N.O." " 11-RLY4 Com" 10-RLY4 N.C." " 9-RLY3 N.O." " 8-RLY3 Com" " 8-485(+)" 7-RLY3 N.C." "...
