Design Guide
Refrigerator
or Freezer
23-7/8"From
Rearof
Unit
Case
Trim
1/2"
1/4"
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets mag require filler
strips to )revent interference with cabinet door
swing. The opening must allow for filler strips.
3/4"
i1_ 3"
2-1/4" 1-1/4"
21_
1-3/4"
1-1/2"
CabinetFront
/
", 3/4" Overlay
", Panel
Door

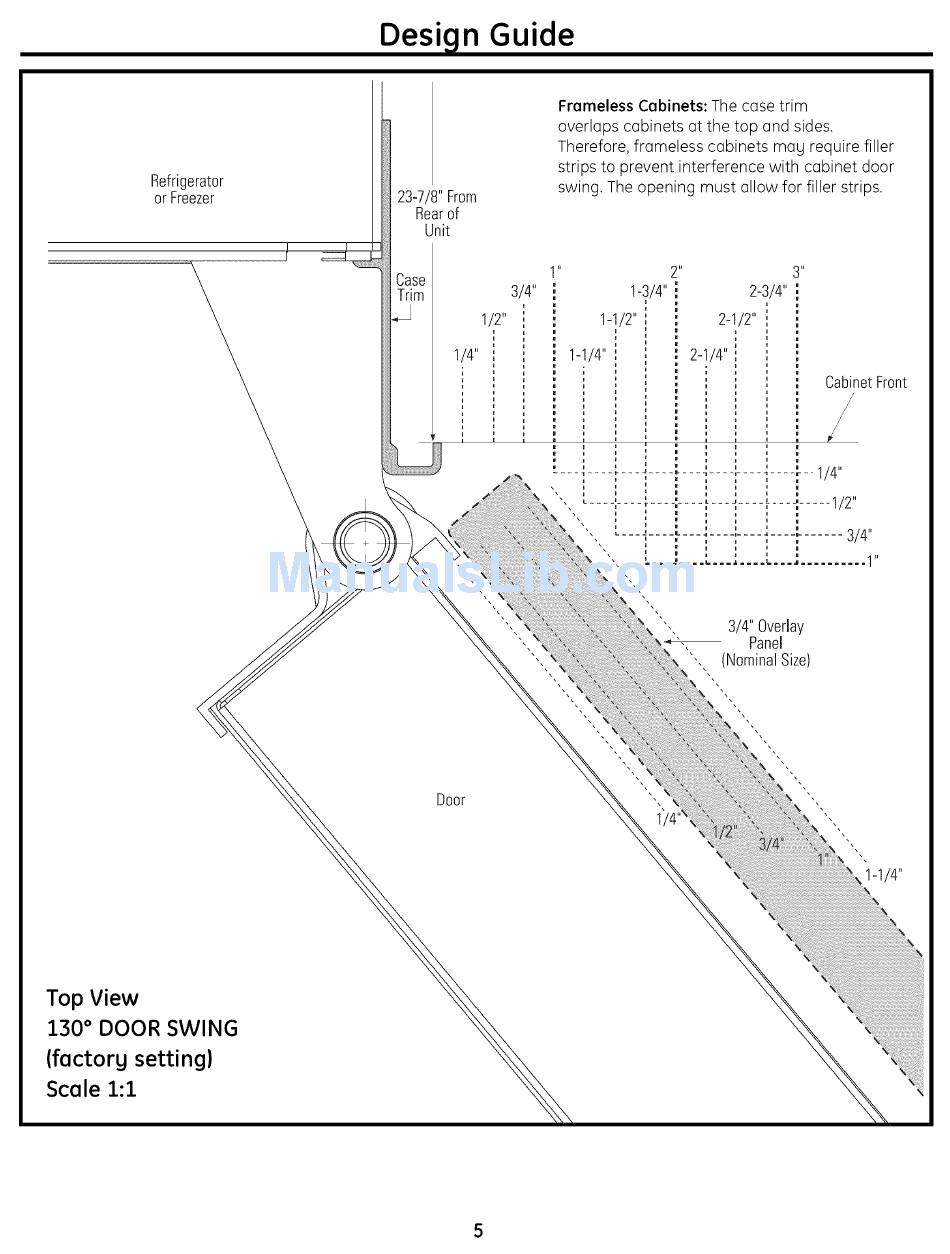

Top View
130° DOOR SWING
(factorg setting)
Scale 1:1
