Design Guide

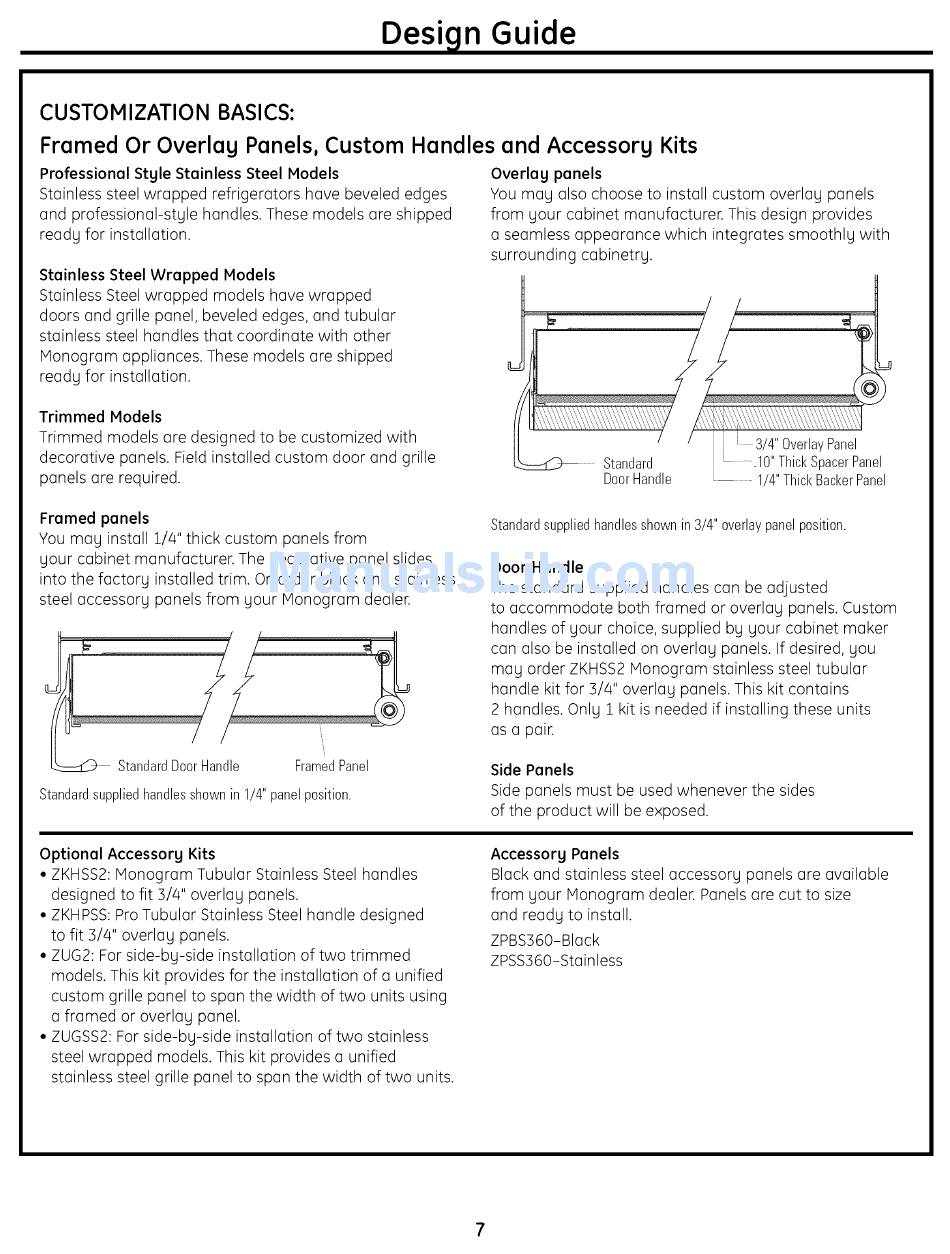

CUSTOMIZATION BASICS:
Framed Or Overlag
Professional Stgle Stainless Steel Models
Stainless steel wrapped refrigerators have beveled edges
and professional-stgle handles. These models are shipped
readg for installation.
Panels, Custom Handles and Accessorg Kits
Overlag panels
You may also choose to install custom overlay panels
from gour cabinet manufacturer. This design provides
a seamless appearance which integrates smoothlg with
Stainless Steel Wrapped Models
Stainless Steel wrapped models have wrapped
doors and grille panel, beveled edges, and tubular
stainless steel handles that coordinate with other
Monogram appliances. These models are shipped
readg for installation.
Trimmed Models
Trimmed models are designed to be customized with
decorative panels. Field installed custom door and grille
panels are required.
surrounding cabinetrg,
__ Standard
DoorHandle
3/4"Overlay P anel
ii _ ..... .lO"Thick Spacer P anel
1/4"ThickBacker Panel
Framed panels
You mag install 1/4" thick custom panels from
gour cabinet manufacturer. The decorative panel slides
into the factorg installed trim. Or, order black and stainless
steel accessorg panels from gour Monogram dealer.
StandardDoorHandle FramedPanel
Standardsuppliedhandlesshown in 1/4" panelposition.
Standardsuppliedhandlesshown in 3/4" overlaypanelposition.
Door Handle
The standard supplied handles can be adjusted
to accommodate both framed or overlag panels. Custom
handles of gour choice, supplied bg gour cabinet maker
can also be installed on overlag panels. If desired, gou
mag order ZKHSS2 Monogram stainless steel tubular
handle kit for 5/4" overlag panels. This kit contains
2 handles. Onlg 1 kit is needed if installing these units
as a pair.
Side Panels
Side panels must be used whenever the sides
of the product will be exposed.
Optional Accessorg Kits
• ZKHSS2:Monogram Tubular Stainless Steel handles
designed to fit 3/4" overlag panels.
• ZKHPSS:Pro Tubular Stainless Steel handle designed
to fit 3/4" overlag panels.
• ZUG2: For side-bg-side installation of two trimmed
models. This kit provides for the installation of a unified
custom grille panel to span the width of two units using
a framed or overlag panel.
• ZUGSS2:For side-bg-side installation of two stainless
steel wrapped models. This kit provides a unified
stainless steel grille panel to span the width of two units.
Accessorg Panels
Black and stainless steel accessorg panels are available
from gour Monogram dealer. Panels are cut to size
and readg to install.
ZPBS560-Black
ZPSS360-Stainless
7
