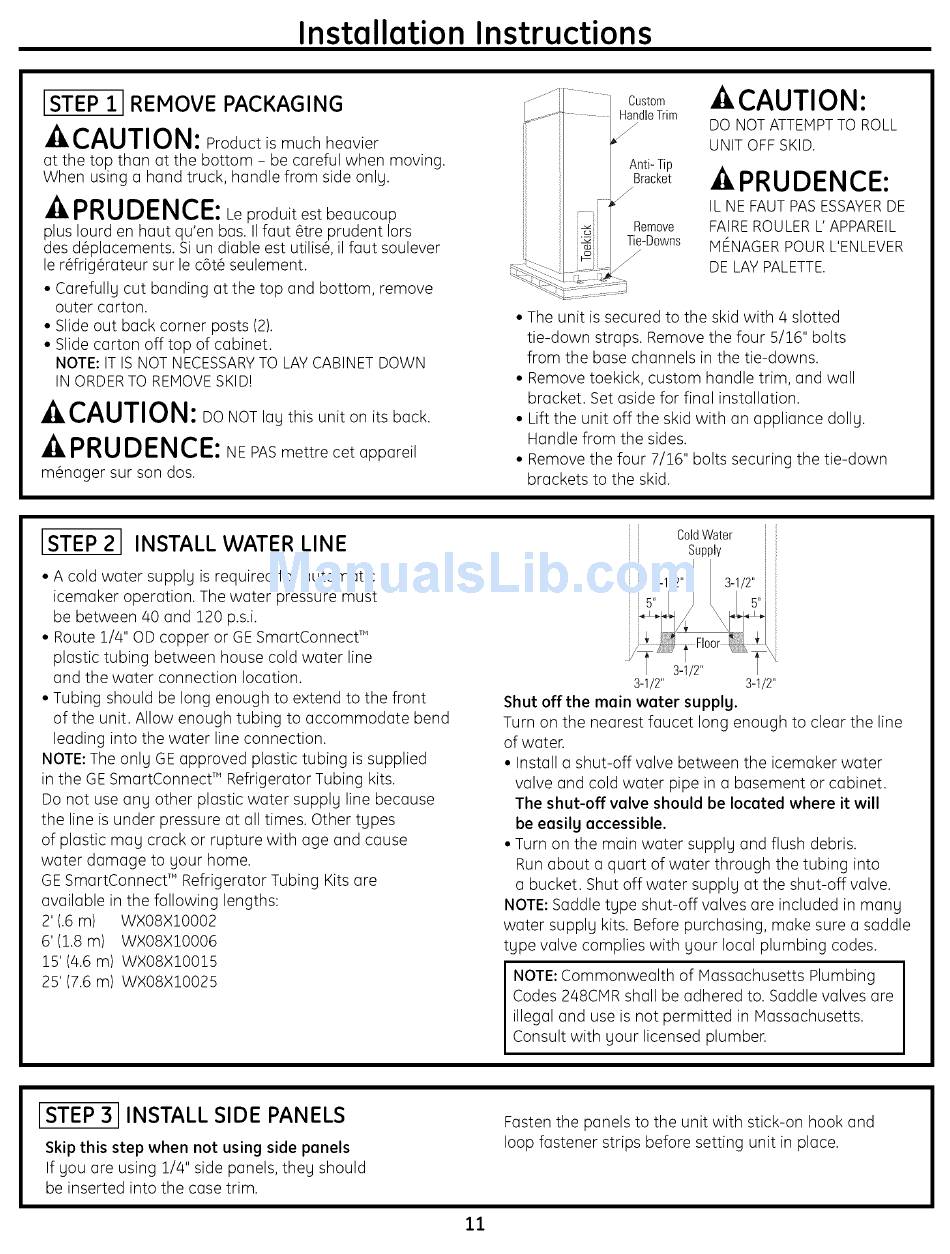

Installation Instructions
STEP 1 REMOVE PACKAGING
-ACAUTION:
Product is much heavier
at the top than at the bottom - be careful when moving.
When using a hand truck, handle from side only.
-4,PRUDENCE: Le
produit est beaucoup
plus Iourd en haut qu'en bas. II faut #tre prudent Iors
des d#placements. Si un diable est utilis#, il faut soulever
le r#frig#rateur sur le c6t# seulement.
• Carefully cut banding at the top and bottom, remove
outer corton.
• Slide out bock corner posts (2).
• Slide corton off top of cobinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINETDOWN
IN ORDERTO REMOVE SKID!
-4,CAUTION: Do NOT Ioy this unit
o n
itsbock.
-A PRUDENCE: NE PAS m ettre c et
o pporeil
m#noger sur son dos.
Custom
HandleTrim
/
/
Anti- Tip
Bracket
/
Remove
Tie-Downs
./
J
-ACAUTION:
DO NOT ATTEMPT TO ROLL
UNIT OFF SKID.
-A PRUDENCE:
IL NE FAUT PAS ESSAYER DE
FAIRE ROULER L' APPAREIL
MENAGER POUR L'ENLEVER
DE LAY PALETTE.
• The unit is secured to the skid with 4 slotted
tie-down straps. Remove the four 5/16" bolts
from the base channels in the tie-downs.
• Remove toekick, custom handle trim, and wall
bracket. Set aside for final installation.
• Lift the unit off the skid with an appliance dolly.
Handle from the sides.
• Remove the four 7/16" bolts securing the tie-down
brackets to the skid.
STEP 2 INSTALL WATER LINE
• A cold water supply is required for automatic
icemaker operation. The water pressure must
be between 40 and 120 p.s.i.
• Route 1/4" OD copper or GE SmartConnect T"
plastic tubing between house cold water line
and the water connection location.
• Tubing should be long enough to extend to the front
of the unit. Allow enough tubing to accommodate bend
leading into the water line connection.
NOTE:The only GE approved plastic tubing is supplied
in the GE SmartConnecf" Refrigerator Tubing kits.
Do not use any other plastic water supply line because
the line is under pressure at all times. Other types
of plastic may crack or rupture with age and cause
water damage to your home.
GE SmartConnecf" Refrigerator Tubing Kits are
available in the following lengths:
2' (.6 m) WX08X10002
6' (1.8 m) WX08X10006
15' (4.6 m) WX08X10015
25' (7.6 m) WX08X10025
i ColdWater i
Supply i
3-1/2" 3-112"
Shut off the main water supply.
Turn on the neorest foucet long enough to cleor the line
of woter.
• Instoll o shut-off volve between the icemoker woter
volve ond cold woter pipe in o bosement or cobinet.
The shut-off valve should be located where it will
be easily accessible.
• Turn on the moin woter supply ond flush debris.
Run °bout o quort of woter through the tubing into
o bucket. Shut off woter supply ot the shut-off volve.
NOTE: Soddle type shut-off volves °re included in mong
woter supply kits. Before purchosing, moke sure o soddle
type volve complies with your Iocol plumbing codes.
NOTE:Commonwealth of Hassachusetts Plumbing
Codes 248CHR shall be adhered to. Saddle valves are
illegal and use is not permitted in Hassachusetts.
Consult with your licensed plumber.
STEP 3 INSTALL SIDE PANELS
Skip this step when not using side panels
If you °re using 1/4" side ponels, they should
be inserted into the cose trim.
Fosten the ponels to the unit with stick-on hook ond
loop fostener strips before setting unit in ploce.
