Installation Instructions

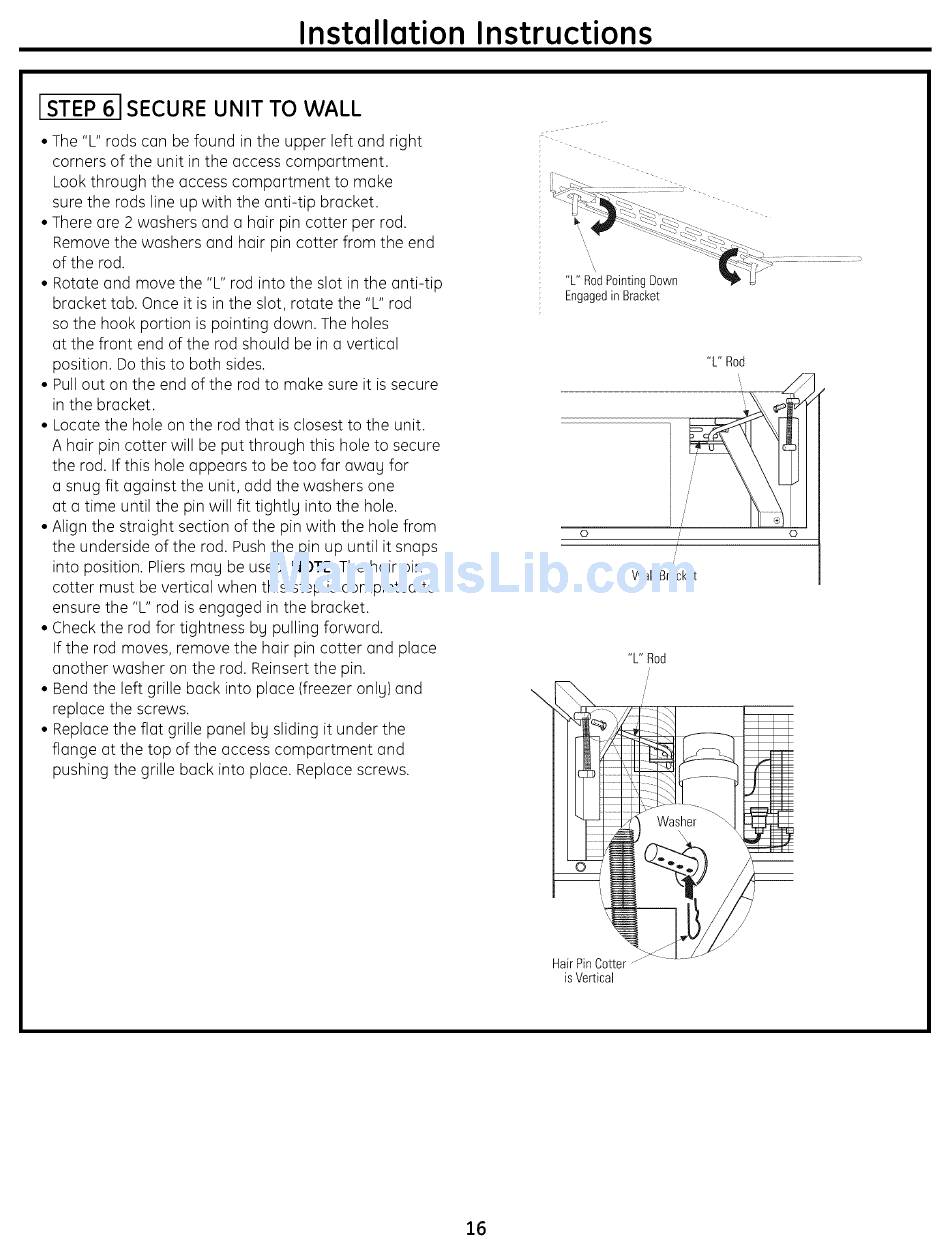

STEP 61SECURE UNIT TO WALL
• The "L" rods con be found in the upper left and right
corners of the unit in the access comportment.
Look through the access comportment to make
sure the rods line up with the anti-tip bracket.
• There ore 2 washers and a hair pin cotter per rod.
Remove the washers and hair pin cotter from the end
of the rod.
• Rotate and move the "L" rod into the slot in the anti-tip
bracket tab. Once it is in the slot, rotate the "L" rod
so the hook portion is pointing down. The holes
at the front end of the rod should be in a vertical
position. Do this to both sides.
• Pull out on the end of the rod to make sure it is secure
in the bracket.
• Locate the hole on the rod that is closest to the unit.
A hair pin cotter will be put through this hole to secure
the rod. If this hole appears to be too for awau for
a snug fit against the unit, odd the washers one
at a time until the pin will fit tightly into the hole.
• Align the straight section of the pin with the hole from
the underside of the rod. Push the pin up until it snaps
into position. Pliers may be used. NOTE:The hair pin
cotter must be vertical when this step is completed to
ensure the "L" rod is engaged in the bracket.
• Check the rod for tightness bu pulling forward.
If the rod moves, remove the hair pin cotter and place
another washer on the rod. Reinsert the pin.
• Bend the left grille back into place (freezer onlu) and
replace the screws.
• Replace the flat grille panel bg sliding it under the
flange at the top of the access comportment and
pushing the grille back into place. Replace screws.
i - s-:.- . .............. i::
_'_-__ -_-_-, , - ............. -.
EJ "'::--- q _ £ <:_--_ " " " .
....... _ --'- < _:_?s_-- > ..
"L" RodPointing Down _P [J
Engagedin Bracket
0
"L" Rod
o
Wall Bracket
\
"L" Rod
Hair Pin Cotter --
is Vertical
/
/
Washer
/
