130° Door Swing - Monogram ZIFS360NHRH Installation Instructions Manual

Design Guide - Standard Installation

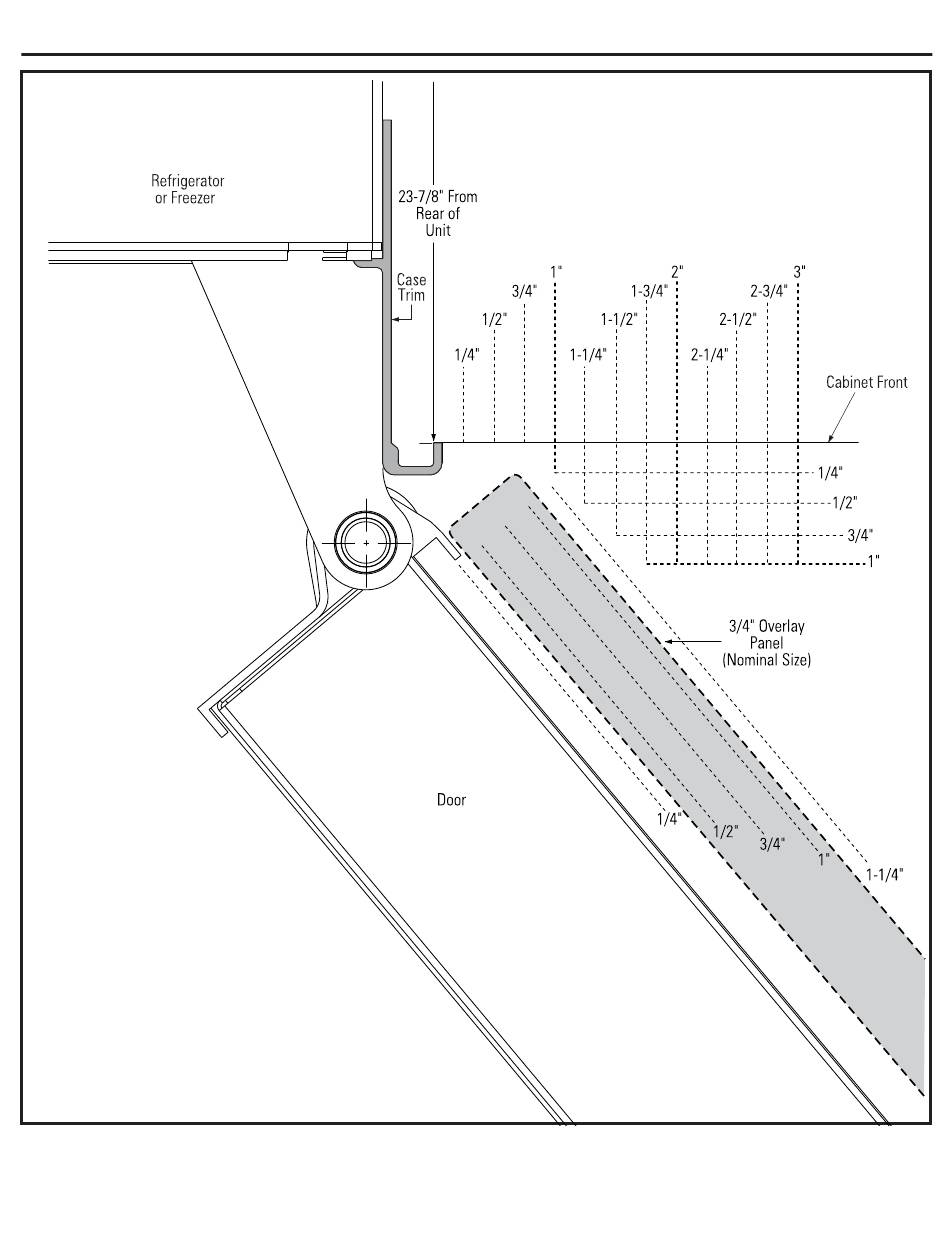

Top View
130° DOOR SWING
Scale 1:1
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler
strips to prevent interference with cabinet door
swing. The opening must allow for filler strips.
