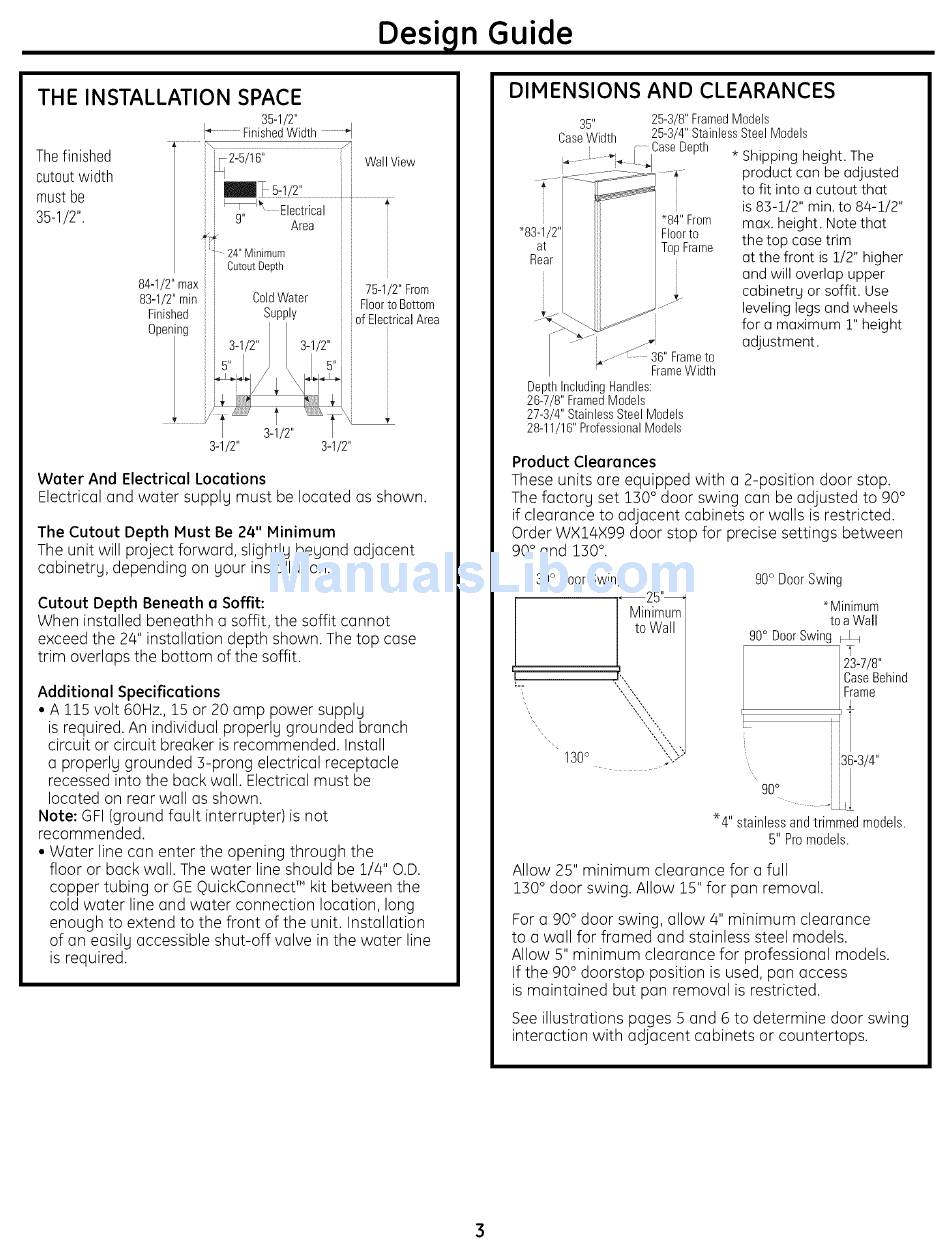

THE INSTALLATION SPACE
35-1/2"
I_ FinishedWidth "t
Thefinished
_ 2-5/16" Wall View
cutoutwidth
"1
mustbe j _ 5:!!2:
35-1/2". j l_l_
Electrical
] g" Area
24" Minimum i
Cutout Depth J
i
84-1/2"max
3-1/2" 3-1/2"
Water And Electrical Locations
Electrical and water supplg must be located as shown.
The Cutout Depth Must Be 24" Minimum
The unit will project forward, slightlg beyond adjacent
cabinetrg, depending on gour installation.
Cutout Depth Beneath a Soffit:
When installed beneathh a soffit, the soffit cannot
exceed the 24" installation depth shown. The top case
trim overlaps the bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supplg
is required. An individual properl9 grounded branch
circuit or circuit breaker is recommended. Install
a properl9 grounded ]-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter)is not
recommended.
• Water line can enter the opening through the
floor or back wall. The water line should be 1/4" O.D.
copper tubing or GE QuickConnect T"kit between the
cold water line and water connection location, long
enough to extend to the front of the unit. Installation
of an easilg accessible shut-off valve in the water line
is required.
DIMENSIONS AND CLEARANCES
35"
CaseWidth
25-3/8"Framed Models
25-3/4"Stainless S teelModels
Case Depth * Shipping height. The
, product can be adjusted
to fit into a cutout that
is 83-1/2" min. to 84-1/2"
"84"From max. height. Note that
Floor t o the top case trim
TopFrame at the front is 1/2" higher
and will overlap upper
_. cabinetrg or soffit. Use
leveling legs and wheels
for a maximum 1" height
adjustment.
_°°} j.-vi
......... :: 36" Frameto
FrameWidth
Depth IncludingHandles:
26-7/8" FramedModels
27-3/4" StainlessSteel Models
28-11/16" ProfessionalModels
Product Clearances
These units are equipped with a 2-position door stop.
The factorg set 1]0 ° door swing can be adjusted to 90 °
if clearance to adjacent cabinets or walls is restricted.
Order WX14X99 door stop for precise settings between
90° and 1]0 °.
130° DoorSwin(
25"--
Minimum
to Wall
7
130 °
L
90° DoorSwing
*Minimum
to a Wall
90° Door Swing
13_7/8,,
CaseBehind
F/ame
i i
'/
i
i
i l
l i
i 136-3/4"
*4" stainlessandtrimmedmodels.
5" Promodels.
Allow 25" minimum cleoronce for o full
1]0 ° door swing. Allow 15" for pon removal.
For o go° door swing, allow 4" minimum clearance
to o woll for fromed ond stoinless steel models.
Allow 5" minimum cleoronce for professionol models.
If the 90° doorstop position is used, pon occess
is mointoined but pon removol is restricted.
See illustrotions poges 5 ond 6 to determine door swing
interoction with odjocent cobinets or countertops.
3
